Filter Press Diaphragm Pump

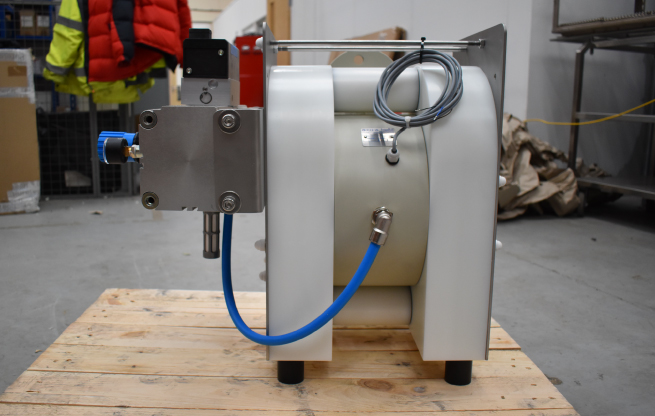

Our Filter Press Diaphragm Pump is a pump station that can be mounted directly to the filter press. Designed specifically for filter press feeding, the design and function of this pump allows for the straightforward pressing of slurries. When purchased as a complete unit, a Pressure Regulator & Booster is already installed onto the pump via an external mounting bracket. The booster amplifies the pressure achievable by the pump in a 2:1 ratio. For example, with an available air pressure of 70 meters, the delivery pressure will be a maximum of 140 meters. As a result, we can achieve up to 160 meters on the pump’s discharge (depending on pump size). Available in HDPE/PTFE and Metal executions.

Typical applications for our Filter Press Diaphragm Pump:

  • Pump Station for Filter Press Feeding
  • Pressing of Slurries

Download Brochure

Download Manual
Overview

As standard, the Pressure Booster is equipped with a pressure regulator and two manometers. Compared to a standard pump, our TF model is equipped with reinforcement plates and a special air valve with PET pistons. We also recommend using an aluminium centre body instead of the standard PP for enhanced durability.

This Pump Station for Filter Press Feeding is self-regulating, and no additional device for regulating the capacity is necessary. It is therefore a plug-and-play solution that’s mounted directly to the Filter Press. Simply connect the air and fluid pipework and you’re set. For monitoring the filling level of the Filter Press, stroke sensors, stroke counters, and flow meters are available.

Want to turn your existing Air Operated Double Diaphragm Pump into a TF Filter Press Pump? All you need are the following parts:

  • 1 x Long Reinforcement Plate
  • 1 x Short Reinforcement Plate
  • 1 x Booster Mounting Plate
  • 2 x Pin Screws
  • 1 x Booster Complete Set
Features & Benefits
  • Can dry run
  • Self-priming
  • High pressure transmission up to 1:2
  • Fewer parts ensure this pump us easy to maintain
  • Long service life
  • Reliable and compact design meaning this unit can be mounted directly to the filter press
Specifications
Drive Type Pneumatic
Flow Rate up to 570 l/min
Pressure up to 160 meters
Material Aluminium, Cast Iron, PE & PTFE, Stainless Steel AISI 316L
Self-Priming Yes
Solids Handling up to 15mm
Viscosity 0-200+ cSt



Technical Data:

Pump Size Connection Size (“BSP or NPT) *Max Capacity (l/min) Max Pump Pressure (Bar)
TF 50 | TF 70 1/2” | 3/4” *60/78 16/232
TF 100 | TF 120 1” *125/158 16/232
TF 220 | TF 420 1 1/2” | 2” *330/570 14/203
TF 200 | TF 400 1 1/2” | 2” *330/570 12/174
