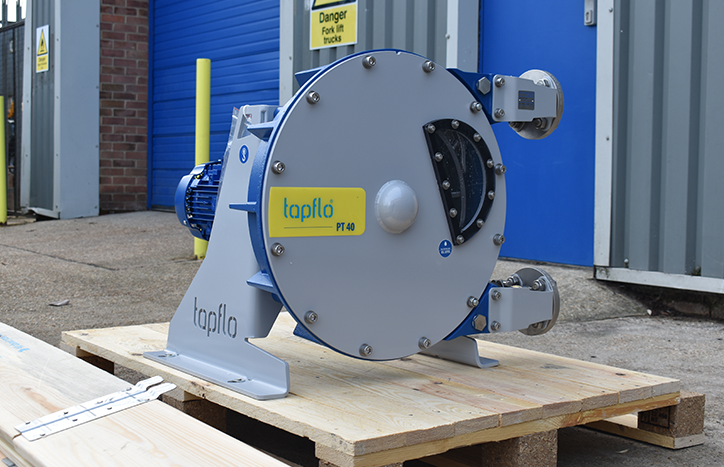

This image is a back view of a peristaltic pump

Peristaltic Pumps

Our Peristaltic Pumps in Low & High-Pressure options self-prime up to 9m and are sealless in design, with only the hose in contact with the media for reduced contamination. With hoses lasting 30% longer than standard hoses, these pumps handle aggressive, abrasive fluids & those containing gases & solids. ATEX-available, CIP & SIP compatible.

What is a Peristaltic Pump?

Peristaltic Pumps, also known as Hose Pumps, are a type of Positive Displacement Pump that uses a hose to transfer the fluid, meaning no other part of the pump is in contact with the media. They are highly versatile with both high and low-pressure options and the ability to self-prime up to 9m.

Advantages of Peristaltic Pumps

Peristaltic Pumps are highly versatile and can be easily modified to suit your requirements. Some of the key features of Peristaltic Pumps are:

To reduce risk of contamination, the hose is the only part of the pump in contact with the fluid being pumped
Our hoses are made from durable materials lasting 30% longer than others on the market
Reversible flow

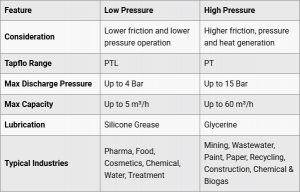

Low and high-pressure options up to 15 Bar
Capable of handling aggressive and abrasive fluids, as well as those containing gases and solids
Sealless design
Self-priming options available
ATEX available for explosive fluids or environments
Easy installation and maintenance
CIP & SIP executions available

Common Industries & Applications

Peristaltic Pumps can be used for a wide range of applications, specifically those containing solids as the hose maintains shape, protecting the media within the pump.

Wastewater Treatment
Anaerobic Digestion
Mineral Processing
Agricultural
Surface Conditioning
Chemical Manufacturing
Food & Beverage
Pharmaceutical
Cosmetics
Heavy-Duty Industrial Applications
Paint & Print
Pulp & Paper
Ceramics
Mechanical

What are your Fluid & Media Transfer Characteristics?

To choose the appropriate Peristaltic Pump for your application, ask yourself the following questions:

What media will be pumped? Consider the chemical composition of the media you will be pumping – is it chemically neutral or corrosive, shear sensitive etc.
What is the viscosity of the media you intend to pump? Consider viscosity limitations, shear sensitivity etc.
Do you need to pump fluids containing solids?
Is your environment or fluid explosive?
Do you require self-priming?
Do you require CIP/SIP?
What type of hose do you require?

Hose Materials Available

NR – Natural Rubber, our most flexible hose, offering high abrasion resistance
NR Food – Natural Rubber for the food and beverage industry with FDA approval
NBR – Nitrile Buna, ideal for oils, greases, and polymers
NBR Food – Nitrile Buna for the food and beverage industry with FDA approval
EPDM – high chemical resistance
Hypalon/Synthetic Rubber – Chlorosulfonated Polyethylene – high chemical resistance to fluids such as sodium, hypochlorite, chromic, nitric, sulfuric acids
Viton/FKM – high chemical & temperature resistance to solvents, lubricants, petrol and fuels

Some of our materials offer an ATEX option on request for explosive applications and environment.

Maintenance Required to Keep your Peristaltic Pumps Running

Regularly check for wear and tear on the hose
Ensure proper tension of the hose, it must be fitted correctly
Lubricate the shoes and bearings as needed

Depending on the size of your pump and the fluid you are pumping, a more detailed maintenance schedule may be required.

Additional Factors to Consider

Will your pump be stationary, or do you need it to be portable? If you require portability, Peristaltic Pumps can be fitted to trolleys of any size to suit your needs.
Will you require additional accessories for your pump? Pulsation dampeners to reduce pulsation and vibration within your piping system, and assemblies and fittings for your hoses are available for Peristaltic Pumps.

ENGINEERED SOLUTIONSTAILORED TO YOUR NEEDS

DESIGN YOUR OWN SYSTEM
