Sanitary Centrifugal Pump
Sanitary Centrifugal Pump

Sanitary Centrifugal Pump

Our Sanitary Centrifugal Pump, designed to meet the strictest requirements of the Food and Pharmaceutical industries, offers reliable performance and simple maintenance for handling liquids in various sanitary applications. EHEDG certified, these pumps ensure compliance and efficiency in Food Processing, Pharmaceutical Production, and other sanitary environments. The CPC-HD model caters to high-pressure applications, such as pressure boosting and reverse osmosis, capable of handling pressures up to 40 Bar. Featuring 4 set sizes, these pumps offer a capacity range of up to 400m³/hr and 9 Bar in 50 Hz and 500m³/hr and 13 Bar in 60 Hz. Liquid contact parts are manufactured from Cast Stainless Steel AISI 316L, with options for AISI 316L Mo+Ni and Hastelloy C22 on request. Surface roughness of Ra <0.8 as standard, with Ra <0.5 available on request. Additionally, these pumps are equipped with Open or Star impellers, offering solids handling capabilities up to 10mm, offering versatile configuration options to suit specific operational needs.

Typical applications for our Sanitary Centrifugal Pump:

  • Dairy
  • Beverage
  • Food Liquids
  • Chocolates & Sweets
  • Sugar
  • CIP & SIP
  • Pharmaceutical
  • Biotechnology
Overview

Our CPC Series of Sanitary Centrifugal Pumps is explicitly designed for use within the Food and Pharmaceutical industries with a heavy emphasis on robust design, optimal cleanability, efficiency, low maintenance costs and simple maintenance.

The range consists of 4 set sizes, CPC 160-210-260-310 with a capacity range up to 400m/hr and 9 Bar in 50 Hz and 500m/hr and 13 Bar in 60 Hz and standard and 40 Bar for the CPC-HD units for high-pressure applications such as pressure boosting or reverse osmosis.

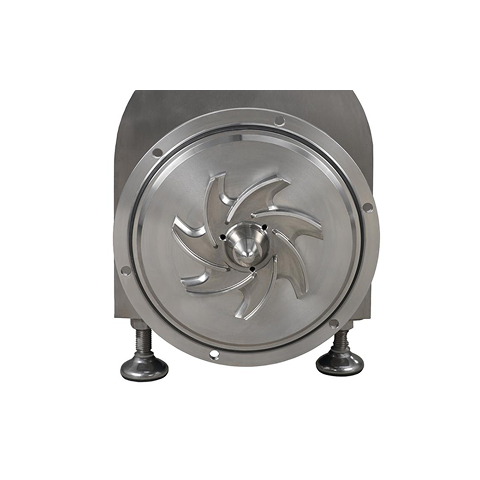

All liquid contact parts comply with EHEDG standards and are manufactured from cast Stainless Steel AISI 316L or AISI 316L Mo+Ni or Hastelloy C22 upon request for increased corrosion resistance with a surface roughness of 0.8 as standard (0.5 on request). The open or star impellers, which are dry-mounted to the shaft through O-Rings, are also fitted with pressure relief holes to ensure optimal cleaning of the shaft seal and chamber. The O-Rings ensure that there is minimal liquid contact with the shaft whilst cleaning the contact faces at the same time.

There are minimal clearances between the impeller and the back casing to ensure high efficiencies and pressures whilst retaining its solids-handling ability up to 10 mm. Units can be supplied close coupled in KAM, KAV & KAC designs with B3 or B5 motors or pneumatic, diesel driven or hydraulic motors in their IG & IGH forms. Various Mechanical Sealing & O-Ring options, drain connections and heating jackets are available on request.

This pump finds its applications in:

  • Dairy: Milk, skimmed milk, buttermilk, cheese milk, raw milk, cream, animal fats
  • Beverage: Fruit juices, soft drinks, beer, wine, spirits, liqueur, sugar solutions, syrups, water, concentrate, yeast
  • Food liquids: Animal and vegetable oils and fats, soups, sauces, spices, brine, water
  • Chocolates & Sweets: Milk products, oils and fats, sugar solutions, syrups, flavouring, liqueurs, spirits
  • Sugar: Syrups, sugar solutions, invert sugar
  • CIP & SIP: Sodium hydroxide, nitric acid, hot and cold water, other specific cleaning liquids
  • Pharmaceutical & Biotechnology: Ultra-Filtration, Reactors, Tablets & Coating, Process Filtration, Distilled Water & Emulsions
Features & Benefits

All mechanical seals are specifically designed for use with the CPC range according to DIN 24960 and are fitted with EHEDG / FDA compliant O-Rings. They feature a 2 pin construction so that they rotate with the impeller. They are available in the following material combinations:

  • Carbon to CrMo-steel
  • Carbon to silicon carbide
  • Carbon to ceramic
  • Hard metal to hard metal
  • Silicon carbide top silicon carbide
  • Tungsten carbide to tungsten carbide

The mechanical seals are available with EPDM, Viton, Perbunan and Teflon “O”-rings.

Internal Mechanical Seal /Internal Mechanical Seal w. Quench

A quench is applied when a constant pressure-free flush to prevent fouling of the mechanical seal is required due to the product being pumped. External Mechanical Seal /External Mechanical Seal with Flush

A Flush is applied when a considerable under-pressure is present on the suction side or when constant flushing of the seal is required. The pressure of the flushing fluid must always be higher than the discharge pressure.

  • Balanced Stub Shaft Design: All CPC-ZA Sanitary Self Priming Centrifugal Pumps are fitted with a balanced stub shaft design with features a conical shaft end without a keyway and dry mount EHEDG / FDA compliant O-Rings. Grub screw attachment to the motor shaft enables easy assembly and disassembly during maintenance procedures. When mounted, the open impeller has pressure relief holes to ensure optimum efficiency and cleaning of the mechanical seal which is attached to the impeller via its 2-pin construction.
  • High-Pressure Casing: The cast stainless steel AISI 316L, machined from a solid block, the casing can withstand system pressures up to 25 bar as standard and 40 bar upon request (CPC-HD). It has also been machined to provide optimal cleanliness by eliminating any dead space areas for the bacterial build-up to be in line with EHEDG standards.
  • Optional Heating Jacket: All models can be fitted with an optional heating jacket to maintain fluid temperature whilst being pumped and is generally used when transferring for higher viscosity edible oils.
Balanced Stub Shaft Design
Specifications
Max Capacity 500 m³/hr
Max Pressure 13 Bar (40 Bar for CPC-HD)
Max Viscosity 500 cPs
Max Temperature 150°C (Higher upon request, special execution)
Max Solids Passage 10mm – impeller & model specific
Impeller Open/Star
Connections 1.5″ – 6″ (DN40-150)
Connection Types Couplings: DIN11851, SMS1145, Flanges: EN1092-1, DIN11864-2, ANSI

Tri-Clamps: ISO2852. DIN32676, DIN11864-3

Shaft Sealing Single, Double quench/flush, Inner and Outer, EHEDG. According to DIN24960
Sealing Materials Carbon/CrM, Carbon/SiC, Tc/Tc
Elastomer Materials EPDM, Viton, NBR, Teflon, KALREZ e.g. according to FDA
Wetted Parts AISI 316L (AISA 316L Mo+Ni or Hastelloy C22 upon request)
Surface Roughness <0.8 Micron (Std), <0.5 upon request
Drives Standard: IEC, IE2, B3/B5, IP55, ISOL cl. F, PTC

Optional: IE3, ATEX, Noise Reduction, Hydraulic, Pneumatic, Diesel Driven

We can also offer mechanical seal options specifically designed for this range if necessary to meet the needs of your application.

Variations

Variations:

  • Depending on the area of the application the following design variants are available on-demand:
  • Stainless Steel Sanitary Centrifugal Pumps designed with In-Line connections. This makes it possible to install the pump directly into the pipework.
  • Stainless Steel Centrifugal Pump for whey curds. Designed with tangential outlet. The pump was specially designed for pumping soft and vulnerable media. This pump is therefore limited to a maximum operational speed of 1000 rpm. It is only available in construction sizes 29088 & 36088.
  • Stainless Steel Sanitary Centrifugal Pump designed with a radial outlet (the outlet opening of the pump is located directly above the central axis of the suction opening).
  • CPC-ZA: Self-Priming variant of the CPC Series. Capacity range up to 300m/hr & 9 Bar in 50 Hz and 350m/hr & 13 Bar in 60 Hz. Not EHEDG Certified however sanitary in construction. ATEX rated.
