Electric Diaphragm Pump PTFE
A picture of our electrically-operated Diaphragm Pump in PTFE
Electric Diaphragm Pump Metal

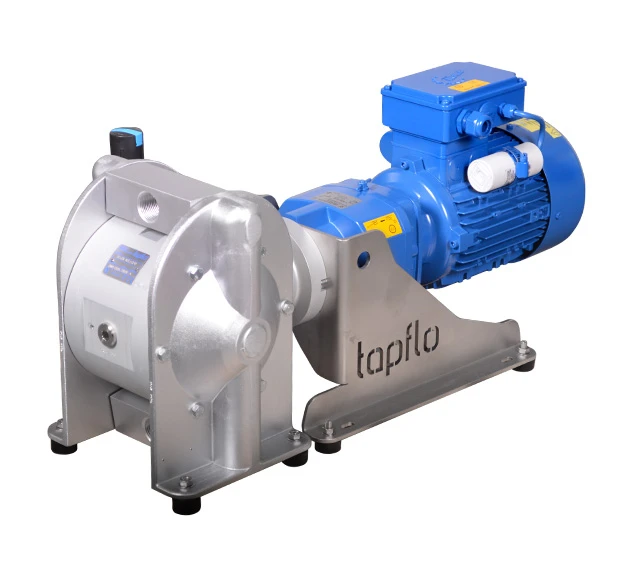

A picture of our Metal electrically-operated Diaphragm Pump
Electric Diaphragm Pump Sanitary
A picture of our Sanitary electrically-operated Diaphragm Pump
Electric Diaphragm Pump with Dampener
A picture of our electrically-operated Diaphragm Pump with built-on Pulsation Dampener
A picture of our electrically-operated Diaphragm Pump in PTFE
PTFE
A picture of our Metal electrically-operated Diaphragm Pump
Metal
A picture of our Sanitary electrically-operated Diaphragm Pump
Sanitary
A picture of our electrically-operated Diaphragm Pump with built-on Pulsation Dampener
Pulsation Dampener
See Technical Data |
Model Max Capacity (L/min) Connections BSP inv.
TE50P (plastic) 48 1/2"
TE100P (plastic) 110 1"
TE200P (plastic) 220 1 1/2"
TE50T (plastic) 48 1/2"
TE100T (plastic) 110 1"
TE200T (plastic) 220 1 1/2"
TE70S (metal) 48 3/4"
TE120S (metal) 110 1"
TE220S (metal) 220 1 1/2"
TE70A/C (metal) 48 3/4"
TE120A/C (metal) 110 1"
TE220A/C (metal) 220 1 1/2"
TE80 (sanitary) 48 DN 25 SMS 3017 tri-clamp
TE125 (sanitary) 110 DN 38 SMS 3017 tri-clamp
TE225 (sanitary) 220 DN 51 SMS 3017 tri-clamp

FAQs

plus sign icon minus/subtract sign icon

What are the Benefits of Using an Electric Diaphragm Pump over Pneumatic Pumps?

Electric Diaphragm Pumps have lower energy costs since electricity is generally cheaper than compressed air. They offer a long diaphragm lifetime due to mechanical and pneumatic support, can run dry without damage, and have low spare parts costs because many parts are shared with pneumatic versions.
plus sign icon minus/subtract sign icon

What Types of Materials are the Wetted Parts Made of?

Wetted parts are available in Aluminium, PTFE-coated Aluminium, Stainless Steel (industrial and hygienic versions), and plastics like PE and PTFE.
plus sign icon minus/subtract sign icon

What Kinds of Liquids Can an Electric Diaphragm Pump Handle?

They can handle aggressive chemicals, abrasive particles and are suitable for hygienic applications, water treatment, paint, print industry, pulp and paper, varnish, and mechanical industries.
plus sign icon minus/subtract sign icon

What is the Maximum Flow Rate & Pressure of the EODD?

The maximum flow rate is up to 220 l/min, with a maximum discharge pressure of 4 Bar.
plus sign icon minus/subtract sign icon

Can the Electric Diaphragm Pump Run Dry?

Yes, the pump can run dry without damage, which makes it easy to use and eliminates the need for additional guarding devices.
plus sign icon minus/subtract sign icon

Is Maintenance Simple?

Maintenance is straightforward with few components and a design similar to standard Air-Operated Diaphragm Pumps, resulting in low downtime and maintenance costs.
plus sign icon minus/subtract sign icon

Are there Special Executions of this Pump?

Yes, options include a pressure switch and a built-on frequency inverter for improved control.

Electric Diaphragm Pump

Our Electric Diaphragm Pump (EODD) is an alternative, eco-friendly approach to the traditional Air Operated Diaphragm Pump. Driven by a gear motor, this pump converts rotary motion into reciprocating motion, which is achieved through an eccentric shaft with a cam and piston mechanism. The self-priming pump, which is sealless in design, gently pumps the most aggressive media, as well as media containing abrasive particles. For added versatility, these pumps are available in HDPE/PTFE, Metal and Sanitary executions.

Typical applications for our Electric Diaphragm Pump:

  • Chemical
  • Surface Treatment
  • Water Treatment
  • Print, Paint & Varnish
  • Pulp & Paper
  • Hygienic
  • Mechanical
Overview

Our Electric Diaphragm Pump is driven by a gear motor, using one diaphragm to create suction while the other diaphragm transmits air pressure to the fluid.

LEAP technology would be the perfect alternative for those installations where an electric drive is not an option. LEAP stands for Low Energy Air Pump, designed and manufactured in the UK.

A LEAP centre section can be fitted to any Tapflo Diaphragm Pump and retrofitted to several other models. LEAP has been designed to operate using less air pressure to save money and energy, helping companies meet budgets and energy-saving targets.

Features & Benefits

The EODD has several benefits, including:

  • Can be run dry with no damage
  • Has the option to self-prime from a dry suction pipe
  • No hydraulic fluid is required, meaning clean and easy maintenance with no risk of leakage
  • Low spares cost and few components
  • Long diaphragm life
  • ATEX-available for use in hazardous environments
Specifications
Data HDPE/PTFE Metal Sanitary
Max capacity 220 l/min 220 l/min 220 l/min
Volume per stroke 854 ml 933 ml 1415 ml
Max air pressure 15 meters 15 meters 15 meters
Max discharge pressure 40 meters 40 meters 40 meters
Max suction lift (dry) 3.5 m 4 m 4 m
Max suction life (wet) 8 m 8 m 8 m
Max size of solids 10 / 18* ø 10 ø 10 / 51* ø
Max liquid temperature 110°C 110°C 110°C

*Flap valve version

Variations
  • Pressure Switch: Due to the potential excessive rise of pressure on the wetted side of the pump, which could cause significant damage to your pump, a pressure switch can be used. This switch is a device used to monitor discharge pressure, protecting closing of the discharge valve
  • Built-on Frequency Inverter: This inverter allows for full control over the operation of your pump by influencing the motor speed
  • TXE Models: Metal and conductive plastic EODD pumps can be used in ATEX Zone 1. The conductive material ensures that no electrostatic loads can accumulate in the pump. The pump unit is equipped with an ATEX-rated coupling, gear motor and air treatment system
