Sanitary Self Priming Centrifugal Pump

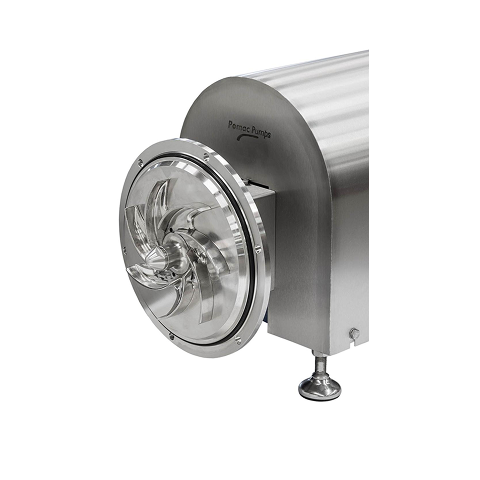

A picture of our Sanitary Self Priming Centrifugal Pump from Pomac Pumps

FAQs

plus sign icon minus/subtract sign icon

What Defines the CPC-ZA Sanitary Self-Priming Centrifugal Pump?

The CPC-ZA is an EHEDG-certified, self-priming sanitary Centrifugal Pump designed for applications with entrained air or gas in the liquid, offering up to 6m suction lift, meeting the highest standards of hygiene for the Pharmaceutical, Biotech and Food industries.
plus sign icon minus/subtract sign icon

What are Typical Applications for this Pump?

Dairy, beverages, food processing, chocolates and sweets, sugar, CIP and SIP return lines, and truck unloading.
plus sign icon minus/subtract sign icon

What is the Maximum Capacity and Pressure of this Pump?

The CPC-ZA offers flows up to 300m³/hr at 9 Bar (50 Hz) or 350m³/hr at 13 Bar (60 Hz), as well as maximum pressures of 130m and maximum suction lift up to 6m.
plus sign icon minus/subtract sign icon

What Solids can it Handle?

Model and impeller-type specific, the CPC-ZA can handle solids up to 10mm in diameter.
plus sign icon minus/subtract sign icon

What Impeller Options are Available?

Both open and star impellers are available for this pump, with both options featuring O-rings and pressure relief holes for optimal shaft seal cleaning and enhanced hygienic operation.
plus sign icon minus/subtract sign icon

What are the Material Options?

The wetted parts are constructed from AISI 316L as standard, with AISI 316L Mo Ni, o Hastelloy C22 are available on request. Furthermore, the pump is electropolished to Ra <0.8 μm as standard, with the option of Ra <0.5 μm on request.
plus sign icon minus/subtract sign icon

What Sealing Options are Available?

Single, double, quench/flush, inner/outer seals are available in accordance with DIN 24960 standards. Materials include Carbon/Crm, Carbon/SiC, Sic/SiC or Tc/Tc, with elastomers available in EPDM, Viton, NBR, Teflon, and Kalrez, all available in FDA-compliant grades.
plus sign icon minus/subtract sign icon

Is the CPC-ZA ATEX-Rated?

Yes, the CPC-ZA Sanitary Self-priming Centrifugal Pump is available with ATEX certification.
plus sign icon minus/subtract sign icon

How is this Pump Driven?

As standard, motor options include IEC, IE2, B3/B5, IP55, Insulation Class F, PTC, with IE3, hydraulic, pneumatic or diesel-driven options available on request.

Sanitary Self Priming Centrifugal Pump

Our Self Priming Sanitary Centrifugal Pump from partner Pomac Pumps is an EHEDG-certified pump designed to meet the highest hygiene standards, offering an ideal solution for applications involving trapped air or gas within the product across the Pharmaceutical, Biotech, and Food industries. Featuring a semi-open impeller, the CPC-ZA model ensures optimal performance in challenging conditions, and is the self-priming variant of the CPC model, boasting self-priming capabilities up to 6m. Suited to applications requiring suction lift, like CIP Return or Truck Unloading, this ump is available in 4 set sizes with a capacity range of up to 300m³/hr and 9 Bar in 50 Hz, and 350m³/hr and 13 Bar in 60 Hz. Additionally, this pump offers solids handling capabilities up to 10mm and is ATEX-rated for use in hazardous environments.

Typical applications for our Sanitary Self Priming Centrifugal Pump:

  • Dairy
  • Beverages
  • Food
  • Chocolates & Sweets
  • Sugar
  • CIP & SIP
Overview

The CPC-ZA Sanitary Self-Priming Centrifugal Pump Series is the Self Priming variant of the CPC series. Its self-priming capabilities make it ideally suited for pumping liquids with entrained air and gases and where suction lift is required, such as CIP return or Truck Unloading.

Like the CPC Series, this range consists of 4 set sizes, CPC 160-210-260-310, with a capacity range of up to 300 m³/hr & 9 Bar in 50 Hz and 350 m³/hr & 13 Bar in 60 Hz. All liquid contact parts are manufactured from cast Stainless Steel AISI 316L or AISI 316L Mo Ni or Hastelloy C22 upon request for increased corrosion resistance with a surface roughness of <0.8 (<0.5 on request).

The CPC-ZA Sanitary Self Priming Centrifugal Pump is fitted with either open or star impellers, which are dry-mounted to the shaft by means of O-Rings and are also equipped with pressure relief holes to ensure optimal cleaning of the shaft seal and chamber. The O-Rings ensure that there is minimal liquid contact with the shaft whilst cleaning the contact faces at the same time. There are minimal clearances between the impeller and the back casing to ensure high efficiencies and pressures whilst retaining its solids-handling ability up to 10 mm. Units can be supplied close coupled in KAM, KAV & KAC designs with B3 or B5 motors or pneumatic, diesel driven or hydraulic motors in their IG & IGH forms. Various Mechanical Sealing & O-Ring options, drain connections and heating jackets are available on request.

Features & Benefits
  • Self-priming up to 6m & EHEDG rated
  • Suited to applications requiring suction lift (CIP Return or Truck Unloading)
  • Available in 4 set sizes
  • Capacity range of up to 300m³/hr & 9 Bar in 50 Hz and 350m³/hr & 13 Bar in 60 Hz
  • Solids-handling ability up to 10mm
  • ATEX-rating for operation in hazardous environments
Specifications
Max Capacity 350 m³/hr
Max Pressure 130 meters
Max Viscosity 500 cPs
Max Temperature 150ºC (higher upon request, special execution)
Max Suction Lift 6 m
Max Solids Passage 10 mm – Model and Impeller specific
Impeller Open or Star
Connections 1.5” – 6” (DN40 – 150)
Connection Types Couplings: DIN11851, DIN11864-1, SMS1145 Flanges: EN1092-1, DIN11864-2, ANSI Tri-Clamps: ISO2852, DIN32676, DIN11864-3
Shaft Sealing Single, double quench/flush, Inner and outer, EHEDG. according to DIN24960
Sealing Materials carbon/CrM, carbon/SiC, SiC/SiC, Tc/Tc
Elastomer Materials EPDM, Viton, NBR, Teflon, KALREZ, e.g. according to FDA
Wetted Parts AISI 316L (AISI 316L Mo Ni or Hastelloy C22 upon request)
Surface Roughness <0.8 Micron (Std.), <0.5 upon request
Drives Standard: IEC, IE2, B3/B5, IP55, isol cl. F, PTC Optional: IE3, ATEX, noise reduction, Hydraulic, Pneumatic, Diesel Driven
