Our Pneumatic (PWDU) and Electronic (EWDU) Wall Mount Decanting Units re modular systems which provide Plug-and-Play Batching Solutions, designed to simplify and enhance your fluid handling processes. Featuring both pneumatic and electronic variants, these decanting units are engineered for seamless integration into a variety of industrial applications, ensuring safety, efficiency, and reliability.
Overview
Features & Benefits
Specifications
Variations
Our Pneumatic Wall Mount Decanting Units and Electronic Wall Mount Decanting Units are versatile decanting solutions tailored to meet diverse dosing and batching needs. These units are equipped with our T50 (½”) or T100 (1”) Air Operated Diaphragm Pumps, available in HDPE, PTFE, or full PTFE materials to ensure compatibility with a wide range of process fluids. Designed for ease of installation and operation, these units require only connection to a pneumatic or electrical supply and fluid lines to begin batching. Internal protective shrouds, customisable fluid connections, and optional pulsation dampeners enhance functionality and safety, making these units ideal for various industrial settings.
PWDU Standard Features & Benefits:
- Fully pneumatic control with single Ø 8mm (T50) or Ø 10mm (T100) air connection
- ½” (T50) or 1” (T100) camlock fluid connections for suction & discharge pipework
- Integrated filter regulator with on/off pneumatic valve for pump actuation and pressure control
- Needle valve integrated onto pump air supply for adjustment of flow rate
- Safety cut off switch to remove power from the system when the door is opened
- Protective shroud to stop fluid leaks spraying the door & internal components
- Compact Mild Steel Enclosure w/Hinged Door & Mounting Kit – 500 x 400 x 300 mm (for T50 pump size) & 800 x 600 x 400 mm (for T100 pump size) – Stainless Steel AISI 304 Enclosures are available on request
- Stainless Steel AISI 316 Internal Pipework & Fittings as standard – PP/PVC/PVDF options are available on request
- Suction & Discharge Hose Assemblies are made to suit individual site requirements
- Bespoke or Standard Suction Lances in PP/PVDF/AISI 316 are available on request
- Optional Active Pulsation Dampeners are available on request
- Internal & External Batch Controller variants available for fixed batch sizes and adjustable batch sizes respectively
- Internal Batch Controller variant has Start & Stop Buttons on the exterior of the panel to actuate the system.=

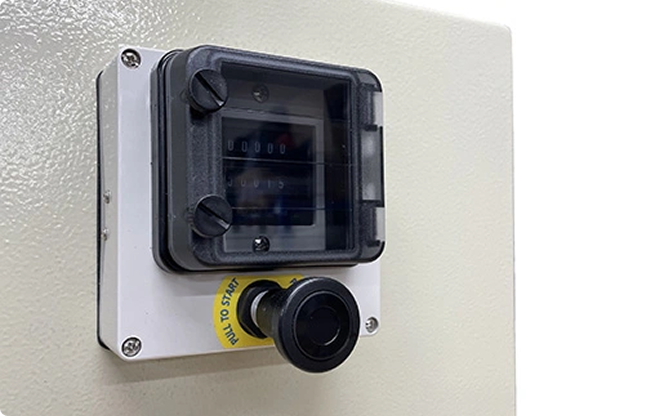

- External Batch Controller variant has the Controller mounted to the front of the enclosure to allow for the batch size to be adjusted
EWDU Standard Features & Benefits:
- Electronic oval gear flow meter w/ +/- 0.5% accuracy
- Electronic batch controller with the possibility for remote start of the batch controller for wider site control – optional M12 connector on the side of the panel
- 230V power supply required – system supplied as standard with 5m of cable with blue 3 pin mennekes plug
- ½” (T50) or 1” (T100) camlock fluid connections for suction & discharge pipework
- Integrated filter regulator with electronic on/off pneumatic valve for pump actuation and pressure control
- Needle valve integrated onto pump air supply for adjustment of flow rate
- Safety cut off switch to remove power from the system when the door is opened
- Protective shroud to stop fluid leaks spraying the door & internal components
- Segmented electrical & Pneumatic zones within the panel
- Compact Mild Steel Enclosure w/Hinged Door & Mounting Kit – 500 x 400 x 300 mm (for T50 pump size) & 800 x 600 x 400 mm (for T100 pump size) – Stainless Steel AISI 304 Enclosures are available on request
- Stainless Steel AISI 316 Internal Pipework & Fittings as standard – PP/PVC/PVDF options are available on request
- Leak detection sensor can be added as an optional extra
- Suction & Discharge Hose Assemblies are made to suit individual site requirements
- Bespoke or Standard Suction Lances in PP/PVDF/AISI 316 are available on request
- Optional Active Pulsation Dampeners are available on request
| Identification |
| Model No |
T50 PTT |
T100 PTT |
| Description |
½” Air Operated Diaphragm Pump in PE (HD) |
1” Air Operated Diaphragm Pump in PE (HD) |
| Materials and Specifications |
| Part Description and Part No |
Material Description |
Material Description |
| Housings (wetted, pos 11) |
PE HD (polyethylene) |
PE HD (polyethylene) |
| In/outlets (wetted, pos 13) |
PE HD (polyethylene) |
PE HD (polyethylene) |
| Diaphragms (wetted, pos 15) |
PTFE TFM 1705 |
PTFE TFM 1705 |
| In/outlet o-rings |
FEP / FKM |
FEP / FKM |
| Valve balls (wetted, pos 23) |
Virgin PTFE |
Virgin PTFE |
| Valve seats (wetted, pos 20, 21) |
PE HD (polyethylene) |
PE HD (polyethylene) |
| Centre block (not wetted) |
PP (polypropylene) |
PP (polypropylene) |
| Air valve (not wetted) |
Brass/NBR |
Brass/NBR |
|
|
|
| General Data |
| Inlet Connection |
½” BSP F |
1” BSP F |
| Outlet Connection |
½” BSP F |
1” BSP F |
| Air Connection |
¼” BSP F |
¼” BSP F |
| Max Capacity |
60 l/min |
125 l/min |
| Displacement |
116 ml/stroke |
305 ml/stroke |
| Max Discharge Pressure |
8 Bar |
8 Bar |
| Max Air Pressure |
8 Bar |
8 Bar |
| Suction Lift (Dry / Wet) |
2.4 / 9 m |
3.5 / 9 m |
| Solids Passage |
4 mm ø |
6 mm ø |
| Temperature Range |
-20ºC…+70ºC |
-20ºC…+70ºC |
| Weight |
5.5 Kg |
10 Kg |
| ATEX Details |
On Request |
On Request |
| Noise Data |
<80 dB(A) |
<80 dB(A) |
- Bespoke & Standardised Day Tanks
- Mixers: Electronic & Pneumatic
- Bespoke Suction & Discharge Hose Assemblies
- Bespoke Bunded Storage Solutions
- Contactless IBC/Plastic Container Level Control, Monitoring & Dry-Run Protection
- Remote Start/Stop Controllers
- PLC/I-O Interfaces
- Data Logging Modules
- Diaphragm Rupture Detection & Protection
- Noise Reduction/Insulation
- Automated Valves
- ATEX Rated Systems
- Food Grade/Hygienic Systems
