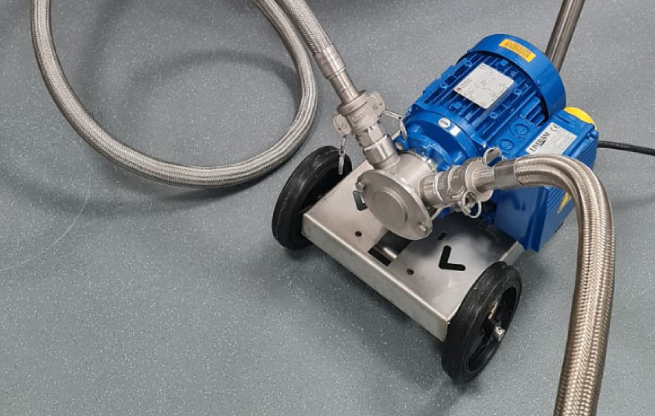

Our EP Flexible Impeller Pump is a Self-Priming Pump and is the most commonly used Flexible Impeller Pump in our range. Characterised by its close-coupled design, this pump delivers reversible and pulseless flows, dry suction lift up to 6m and solids passage between 3 – 25mm. An on/off/reversing switch can be located on the terminal box of its motor for enhanced versatility. Additionally, this pump can be fitted with carrying handles (U and L-shaped) or trolleys (Zinc-coated Iron & Stainless-Steel 304), making it a highly versatile and efficient utility pump.
Typical applications for our EP Self-Priming Flexible Impeller Pump:
Overview
Features & Benefits
Specifications
Variations
The EP Self Priming Flexible Impeller Pump is characterised by its close-coupled design and integral on/off/reversing switch on the terminal box of its motor which is available in both single and three-phase. Upon request, three-phase units can also be supplied with terminal board connections for hard wiring into the installation.
They are one of the most commonly used types of Self Priming Flexible Impeller Pumps, ideal for transferring, filling & emptying applications in a plethora of industries as they can also be fitted with carrying handles (U & L Shaped) or trolleys (Zinc Coated Iron & SS 304), which makes them a particularly versatile utility pump.
Manual & Spring Loaded By-Passes are available on request.
Voltages:Â 12, 24 DC (Continuously Rated) & 110, 230 & 400V (1 & 3 Phase)
Speeds:Â 470, 600, 900 & 1400 rpm single & dual speed
Counter Connections:Â EP MINI & MIDEX Models are supplied with SS 304 & 316 Hose Connections as standard. Garolla to BSP F Reducers are available on request for other models.
- Single or three-phase motor options available
- 470, 600, 900 & 1400 rpm single & dual speed
- Steady and pulseless flow
- Self-priming up to 6m (dry)
- Bi-directional operation
- Ability to handle solids up to 25mm (model-dependant)
- Seamlessly fits to various pipework configurations (owing to the flexibility of the pump head which can be rotated in 5 positions)
| Max Flow (l/min) |
730 l/min |
| Max Pressure (m) |
32m |
| Solids Passage (mm) |
3, 5, 10, 15 & 25mm |
| Voltages |
12 & 24V DC
110, 230 & 400V (MF & TF) |
| No. of Speed Settings |
1 or 2 |
| Speeds (rpm) |
470, 600, 900, 1400 |
| Pump Heads |
AISI 304
AISI 316 |
| Impellers |
Natural Rubber (NR)
Nitrile (NBR)
Neoprene (CR)
EPDM
Silicone (VQM) |
| Shaft Sealing |
Bi-Directional Single Mechanical Seal
Ceramic / Graphite / NBR (Std.)
SiC/SiC/EPDM
Tungsten Carbide / Tungsten Carbide / Viton etc… |
| Connections |
BSP M
BSP F
Garolla
DIN 11851
Macon
Tri-Clamp
SMS
BSM / RJT
Friederich |
- Manual / Spring-Loaded By-Passes
- Alternative Port Sizing
- Counter Connections (Hose Fittings & Adaptors)
- Carrying Handles & Frames
- Trolleys & Mobile Packages
- Control Panels & Variable Speed Drives
