| Model | Max Capacity (m³/hr) | Max Pressure (m) |
|---|---|---|
| MAJOR 5-120 | 12000 | 18 |
| MAJOR 10-200 | 22500 | 18 |
| MAXI 20-300 | 36000 | 18 |
| MAXI 20-400 | 43800 | 18 |
| Model | Max Capacity (m³/hr) | Max Pressure (m) |
|---|---|---|
| MAJOR 5-120 | 12000 | 18 |
| MAJOR 10-200 | 22500 | 18 |
| MAXI 20-300 | 36000 | 18 |
| MAXI 20-400 | 43800 | 18 |
How does an All-in-One Flexible Impeller Pump work?
How does this differ from other products on the Tapflo website?
What is the difference between a Centrifugal and a Flexible Impeller Pump?
What typical fluids are pumped via this pump?
Are these pumps self-priming?
Can this pump run dry?
Is this pump suitable for abrasive or hazardous chemicals?
Tapflo UK is proud to be a partner of Liverani, a leading Italian manufacturer, supplying us with highest-quality Flexible Impeller Pumps and Liquid Ring Pumps.

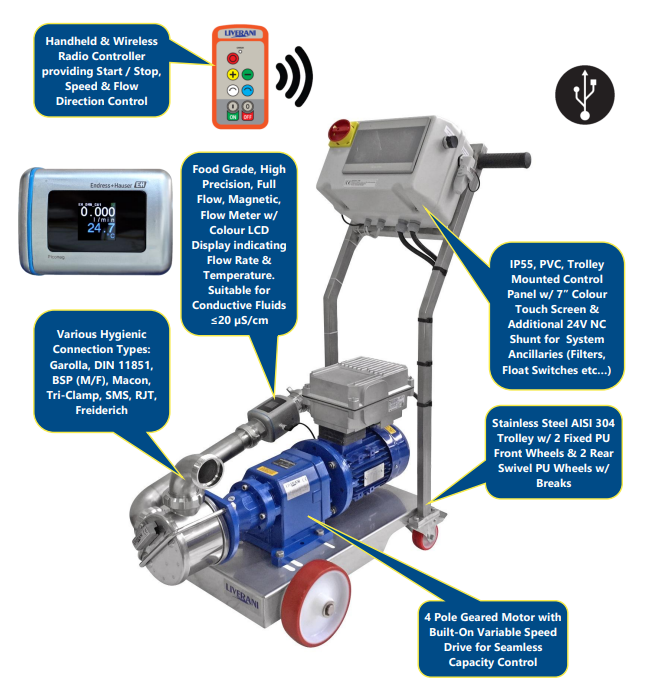

Our All in One Flexible Impeller Pump, are based on the features and functionality of the INV Series, is a complete system right out of the box. Designed for efficient wine transfer and food-grade applications, this Flexible Impeller Pump features a 7" colour touch screen that allows the operator to review current transfer data, schedule volumes to be transferred, and analyse previous operations, also known as traceability.
The panel includes a simple yet intuitive menu that allows the operator to perform traceability and diagnostics operations. Built onto a Stainless Steel trolley with 2 fixed and 2 pivoting wheels, this pump is built with a high-precision magnetic food-grade flow meter, and remote control for speed variation, inversion rotation and start/stop. Additionally, the vanes in our All-in-One Flexible Impeller Pump are capable of handling solids such as grape seeds and skins, making it an excellent option for a wine transfer.
Download Brochure
All-In-One Flexible Impeller Pump is an intelligent pump that allows the user to organize, monitor, and schedule all fluid transfer operations in the cellar.
Through 72 multi-function touch control panels, it is possible to view the transfer data in progress, program the volumes to be transferred as well as record the various actual operations (traceability).
From a simple intuitive menu, the operator can perform the following operations:
Free Transfer: transferring by displaying the flow rate in l/min, l/h, hl/h, Us Gal/min, or Us Gal/h.
Filling: A quantity of wine is preselected, starting at the desired speed, once the target is reached after programmed declaration and manageable by the operator, the pump will stop at the entered target value.
Barrel Filling: repeated filling in series of programmed volumes starting from touch or from the remote control.
Pump-Over: automatic work/pause cycles can be programmed, pipe emptying function included.
Traceability: it is possible to save and record data relating to all the operations, by entering the operator’s name and the operation performed in addition to the type of wine or the reference batch.
Diagnostics: a diagnostics section allows you to immediately see on the screen any inverter errors, stops due to dry stop intervention, or stop by auxiliary contact intervention
All-In-One Flexible Impeller Pump is an intelligent pump that allows the user to organize, monitor, and schedule all fluid transfer operations in the cellar.
Through 72 multi-function touch control panels, it is possible to view the transfer data in progress, program the volumes to be transferred as well as record the various actual operations (traceability).
From a simple intuitive menu, the operator can perform the following operations:
Free Transfer: transferring by displaying the flow rate in l/min, l/h, hl/h, Us Gal/min, or Us Gal/h.
Filling: A quantity of wine is preselected, starting at the desired speed, once the target is reached after programmed declaration and manageable by the operator, the pump will stop at the entered target value.
Barrel Filling: repeated filling in series of programmed volumes starting from touch or from the remote control.
Pump-Over: automatic work/pause cycles can be programmed, pipe emptying function included.
Traceability: it is possible to save and record data relating to all the operations, by entering the operator’s name and the operation performed in addition to the type of wine or the reference batch.
Diagnostics: a diagnostics section allows you to immediately see on the screen any inverter errors, stops due to dry stop intervention, or stop by auxiliary contact intervention
Performance Table:
| Pump Type | DN | Feeding Supply | Power (kW) | Speed (rpm) | Head (m) | |||||||||
| 0 | 4 | 8 | 12 | 16 | 18 | Capacity (l.hr) | ||||||||
| All in One MAJOR 5-120 | DN40 | MF | TF | 2.2 | Min | 25 | 650 | 0 | ||||||
| 175 | 4320 | 3840 | 2800 | 0 | ||||||||||
| 350 | 9000 | 7800 | 6000 | 3700 | 0 | |||||||||
| Max | 470 | 12000 | 10500 | 8700 | 5100 | 0 | ||||||||
| All in One MAJOR 10-200 | DN50 | MF | TF | 2.2 | Min | 50 | 1230 | 0 | ||||||
| 175 | 4320 | 3840 | 2800 | 0 | ||||||||||
| 470 | 12000 | 10500 | 8700 | 5100 | 0 | |||||||||
| Max | 900 | 22500 | 19560 | 15000 | 11220 | 3000 | 0 | |||||||
| All in One MAXI 20-300 | DN50 | TF | 4.0 | Min | 25 | 2100 | 0 | 2800 | 1750 | 0 | ||||
| 150 | 12000 | 10000 | 7500 | 0 | ||||||||||
| 300 | 24600 | 22200 | 18900 | 12000 | 0 | |||||||||
| Max | 470 | 36000 | 34200 | 30000 | 24000 | 12000 | 0 | |||||||
| All in One MAXI 20-400 | DN65 | TF | Min | 50 | 3800 | 0 | ||||||||
| 150 | 12000 | 10000 | 0 | |||||||||||
| 300 | 24600 | 22200 | 12000 | 0 | ||||||||||
| Max | 600 | 43800 | 41400 | 33000 | 30000 | 16000 | ||||||||
