PT100 D130 Wellpoint Dewatering Pump
PT100 D130 Wellpoint Dewatering Pump
PT100 D130 wellpointing Diesel

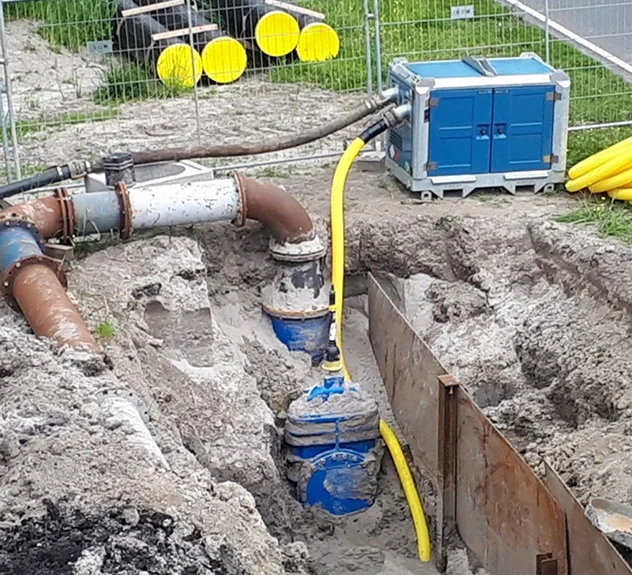

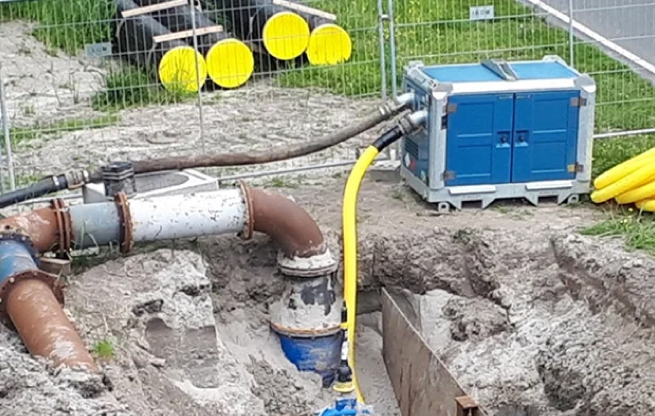

PT100 D130 wellpointing Diesel Pump on site
PT100 D130 wellpointing Diesel
PT100 D130 wellpointing Diesel Pump on site
PT100 D130 Wellpoint Dewatering Pump
Diesel
PT100 D130 wellpointing Diesel Pump on site
On-Site Image
PT100 D130 wellpointing Diesel Pump on site
On-Site Image

PT100 D130 Wellpoint Dewatering Pump

Tapflo UK is proud to be the exclusive UK Partner of BBA Pumps, a leading Dutch manufacturer of the highest-quality, best-in-class Diesel-Driven Sets and Self-Priming Centrifugal Pumps.

Our PT100 D130 Wellpoint Dewatering Pump is a robust 3-inch diesel-driven pump designed for effective groundwater lowering during construction and excavation projects. With its Positive Displacement mechanism, this pump ensures reliable operation by efficiently handling mixtures of water and air without the need for a separate priming system.

  • Groundwater Lowering at Construction Sites
  • Site Dewatering
  • Shallow Well and Trench Dewatering

Download Brochure
Overview

Designed for high-efficiency dewatering, the PT100 D130 features a self-priming Piston Pump and a single-cylinder Hatz diesel engine with DriveOn® technology. This pump is ideal for applications requiring minimal noise and a compact design, making it suitable for use in densely populated areas.

Features & Benefits
  • Positive Displacement Pump: Double-acting Piston Pump handles air and water mixtures effortlessly
  • Diesel Engine: Hatz single-cylinder engine with DriveOn® technology for low fuel consumption and extended service intervals (1500 hours)
  • Sound Attenuated Canopy: Ultra-quiet operation with a robust canopy that includes a composite fuel tank and fluid containment system
  • Compact Design: Includes forklift pockets and lifting eyes for easy mobility
Specifications
Feature Details
Max Flow 30m³/hr
Max Head 18 mWC
Max Suction Lift 9.6 mWC
Engine Hatz DriveOn®
Service Interval 1,500 hours
Fuel Consumption 0.7 l/hr
Sound Level 49 dB at 10 m
Dimensions (L x W x H) 1500 x 940 x 1228 mm
Connections 3″ or 4″
Dry Weight 950kg
Warranty 4 years
