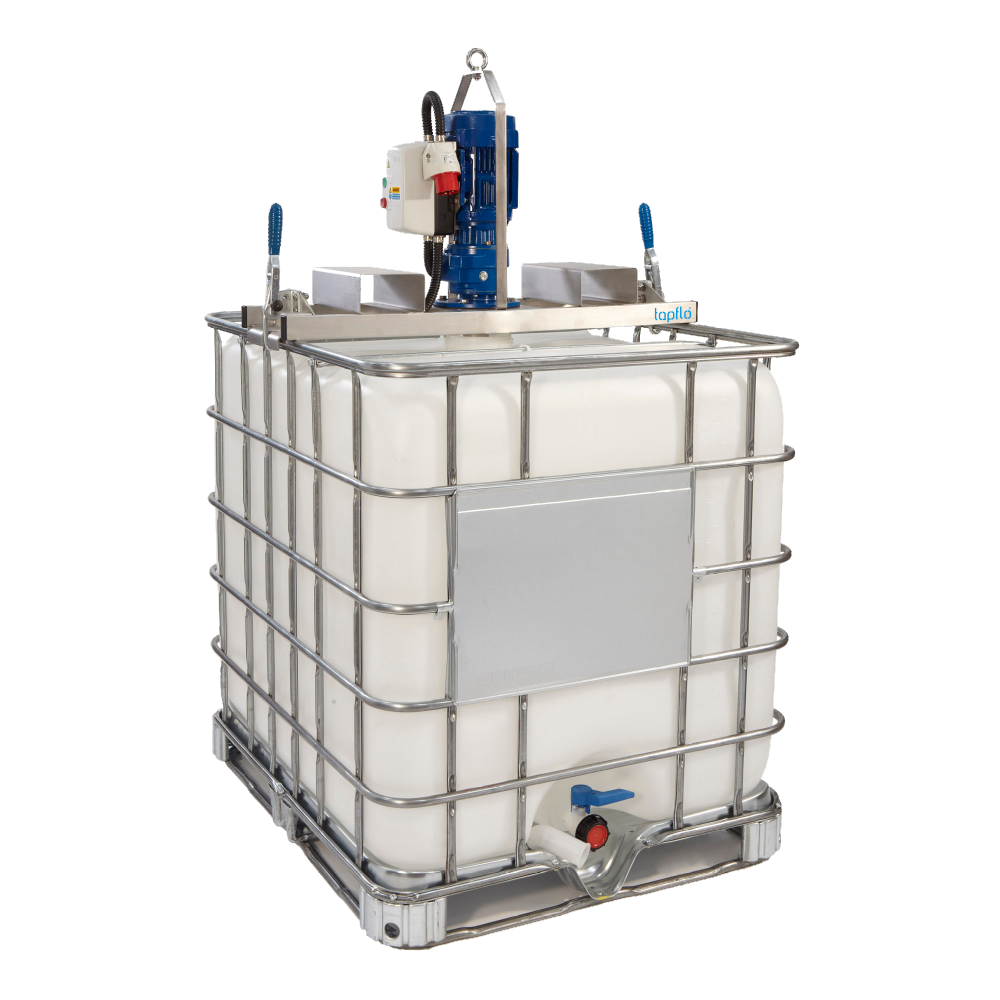

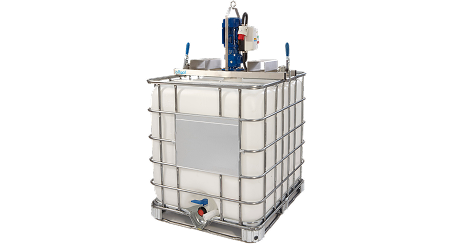

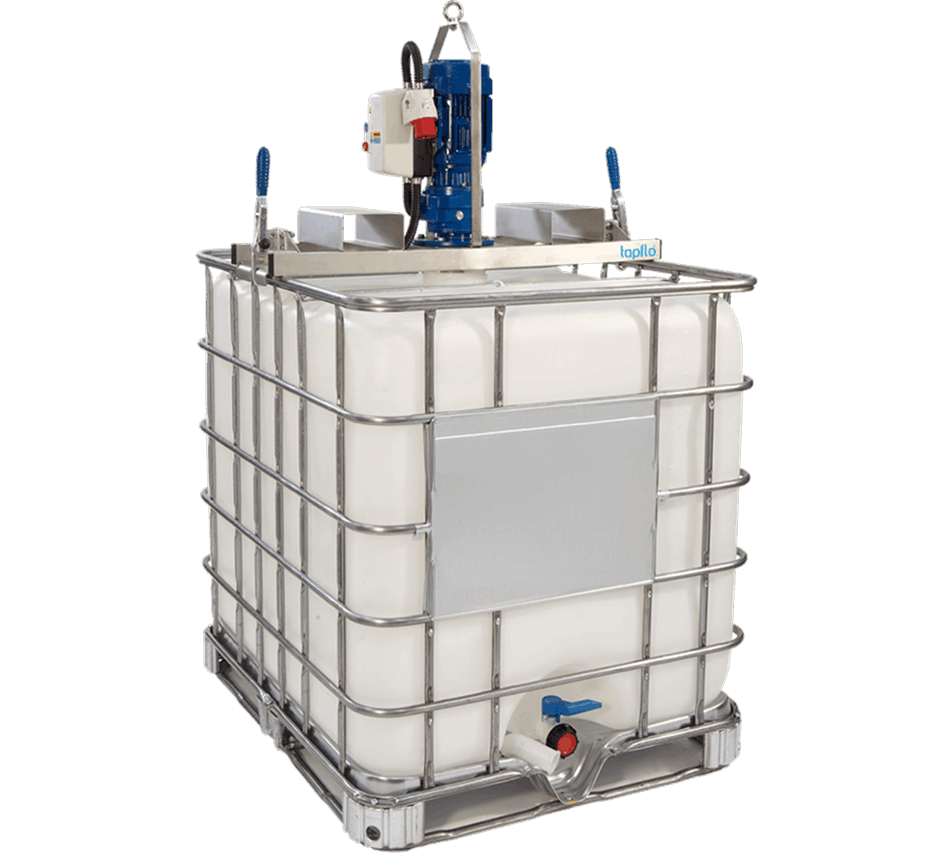

Our IBC Mixers are designed to deliver optimal mixing performance within Intermediate Bulk Containers (IBCs, also known as pallet tanks or totes). Built from premium, durable materials, these mixers ensure thorough homogenisation of liquids, powders, and suspensions, even with high viscosities or solids content.
Whether for Food, Cosmetics, Adhesives, Water Treatment, or Industrial applications, Tapflo IBC Mixers provide a reliable, efficient, and safe mixing solution.
Mixes liquids up to 20,000 cP viscosity, including powders and solid particles
Supplied as a complete light-frame assembly with only 2 toggle clamps for quick mounting
Safety interlock switch prevents operation when the mixer is not securely fixed; overload protection included on electric drives
Stainless Steel and corrosion-resistant materials ensure longevity in demanding environments
Available in electric and pneumatic variants, suitable for both standard and ATEX zones

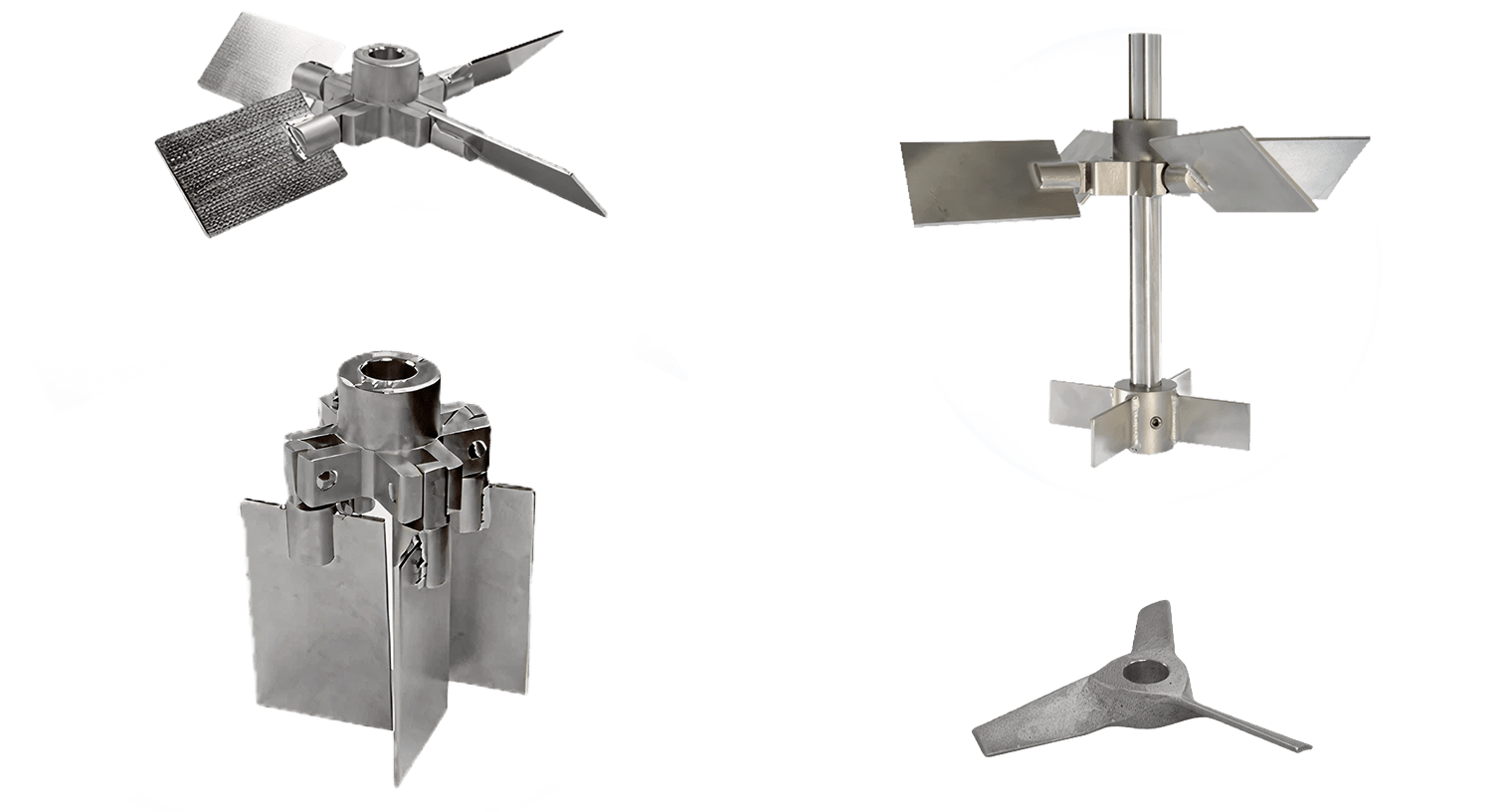

Compatible with fixed, folding, or kicker impellers for different applications
Forklift mobility module, additive dosing connections, powder hopper, frequency inverter for adjustable speed
Liquid Properties:
Up to 20,000 cP, powders/solids, standard in 1000L IBCs (600L available on request)
ATEX Availability:
ATEX-certified models for hazardous areas (Zone II 2G)
Power Supply:
Electric: 400V AC, 50–60Hz or 220–230V AC, 50–60Hz
Frame Dimensions:
1020 × 300 mm (L × W)height depends on motor/impeller type
Materials:
Wetted parts: AISI 316 stainless steel, PP, PFA, ECTFE / Frame & other parts: AISI 304 stainless steel or painted steel.
Certificates:
CE Declaration of Conformity, ATEX 2014/34/EU
All Pumps Types, All Brands, All Ages All Pumps Types, All Brands, All Ages
Choose the IBC mixer tailored to your specific requirements
| Viscosity (cP) | Mixer Model | Mixing | Drive Type | RPM | Impeller | Weight |
|---|---|---|---|---|---|---|
| 1 – 100 | HBC-037 | Mild – Medium | Motor | 1,400 | Fixed | 23kg |
| 1 – 100 | HBC-075 | Vigorous | Motor | 1,400 | Fixed | 25kg |
| 1 – 250 | LBC-037 | Vigorous | Gearmotor | 236 | Folding | 30kg |
| 250 – 1,000 | LBC-037 | Mild – Medium | Gearmotor | 236 | Folding | 30kg |
| 500 – 2,000 | LBC-075 | Vigorous | Gearmotor | 236 | Folding | 32kg |
| 2,000 – 5,000 | LBC-075 | Mild – Medium | Gearmotor | 236 | Folding | 32kg |
| 2,500 – 5,000 | LBC-150 | Vigorous | Gearmotor | 236 | Folding | 38kg |
| 5,000 – 15,000 | LBC-150 | Mild – Medium | Gearmotor | 236 | Folding | 38kg |
For viscosities up to 100 cP, 1400 rpm, 1-phase or 3-phase, mild/medium mixing
For low-viscosity liquids, with speed control valve, quick coupling & silencer
Gearbox – Electric or Pneumatic (Low-Speed):
IBC Mixers homogenise liquids, powders, or suspensions directly inside IBCs, ensuring consistency before processing, packaging or discharge.
Our Mixers handle liquids up to 20,000 cP, depending on the drive and impeller selected.
Yes. ATEX-certified versions are available for explosive or hazardous areas.
Yes! We offer a range of customisation options, such as forklift modules, additive dosing connections, powder hoppers, and frequency inverters, all designed to enhance your applications and support processing needs.
Wetted parts are typically constructed from AISI 316 Stainless Steel, with options for PP (Polypropylene), PFA (Perfluoroalkoxy) Â and ECTFE (Ethylene Chlorotrifluoroethylene). Frames are built from AISI 304 Stainless Steel or painted steel.
Do I Need Special Tools for the Installation of The Mixer?
No. Each mixer is supplied as a complete assembly with clamps for secure fixing. Installation is quick and operator-friendly. If you require any installation support, please get in touch with our technical team.
Ready to experience high performance and flexible operation? Our IBC Mixers are built to deliver consistent results.
