Shell & Tube Heat Exchangers

Shell and Tube Heat Exchangers consist of a shell with a tube bundle inside. Their versatility in construction and size makes them widely used across industrial and heating applications. They are known for their durability, efficiency, and adaptability to various operating conditions.



Typical applications for our Metal Diaphragm Pump:

  • Low-pressure steam condensers (flash steam condensers)
  • Industrial and chemical processes
  • Recuperation and regeneration in industrial technologies
  • Waste heat recovery (diesel/gas engines, cogeneration systems)
  • Water and steam systems, cooling circuits
  • Pharmaceutical production and sterile applications
  • High-viscosity and solid-particle media treatment (e.g., wastewater)
ST variant Shell and Tube heat exchangers

Specification

Features

Variations

Specifications

Description Data
Max Pressure 232 PSI (16 Bar)
Max Temperature 200°C
Materials Stainless Steel 316L/1.4404, Viton, Silicon

Features

Enhanced heat transfer through sprial/ corrugated tube designs that promote turbulent flow, improve thermal efficiency, and reduce sediment build-up.

Low pressure losses, high flow rates, and optimised designs that minimise dead zones and maximise thermal power utilisation.

Durable stainless steel or titanium construction, offering excellent corrosion resistance and suitability for aggressive media.

Hygienic, pharmaceutical-grade options with polished surfaces, double tubesheets, and compliance with industry standards.

Flexible and maintainable designs, including dismountable construction for mechanical cleaning and modular expandability.

Compatible with a wide range of heating and cooling applications, including heat pumps, solar systems, and conventional heat sources.



Variants

DNA variant Shell and Tube heat exchangers

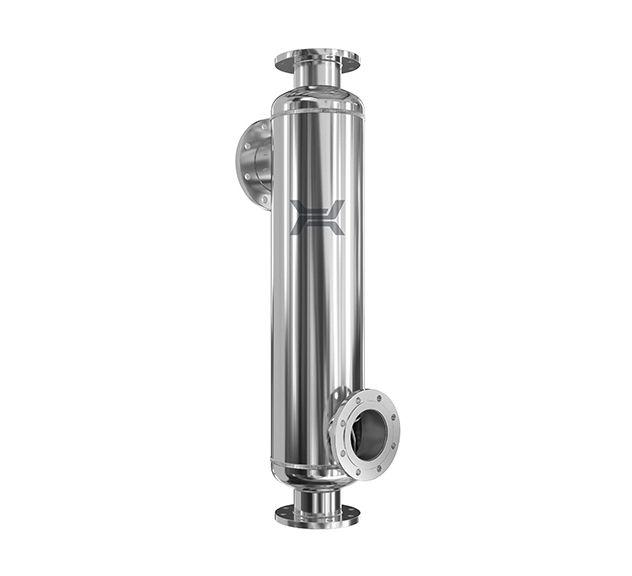

DNA Variant

  • Spiral tubes ensure turbulent rotational flow, doubling the heat exchange coefficient.
  • Low pressure drops and elimination of dead zones.
  • Stainless steel construction with a titanium option for aggressive substances.
P-Line variant Shell and Tube heat exchangers

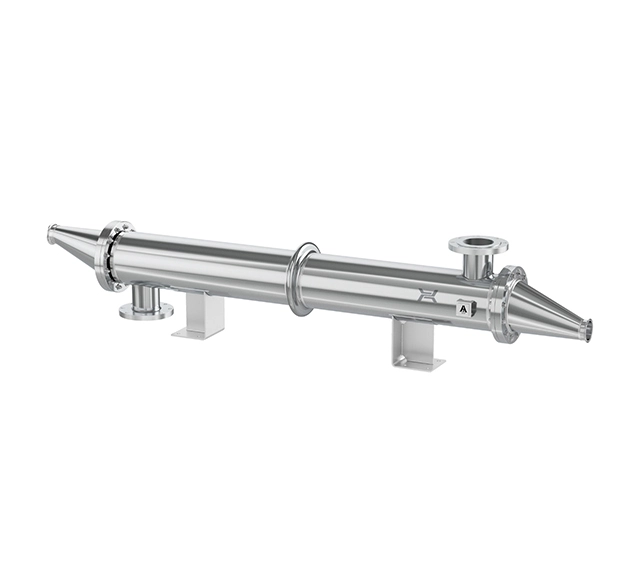

P-Line Variant

  • Meets stringent pharmaceutical standards (3-A, cGMP, PED, ASME).
  • Double tubesheet prevents medium contamination.
  • Polished surfaces (Ra ≤ 0.5 µm) ensure easy cleaning and hygiene.
ST variant Shell and Tube heat exchangers

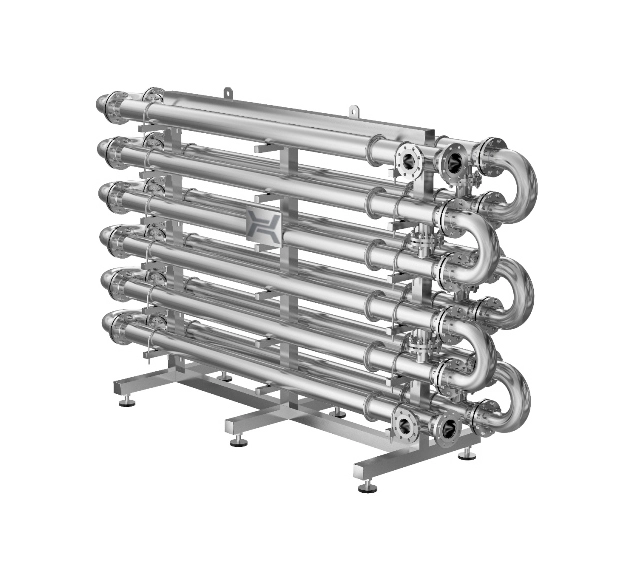

ST Variant

  • Dismountable design allows for mechanical cleaning.
  • Corrosion-resistant stainless steel construction.
  • Modular expandability with sections of 3m and 6m.
B variant Shell and Tube heat exchangers

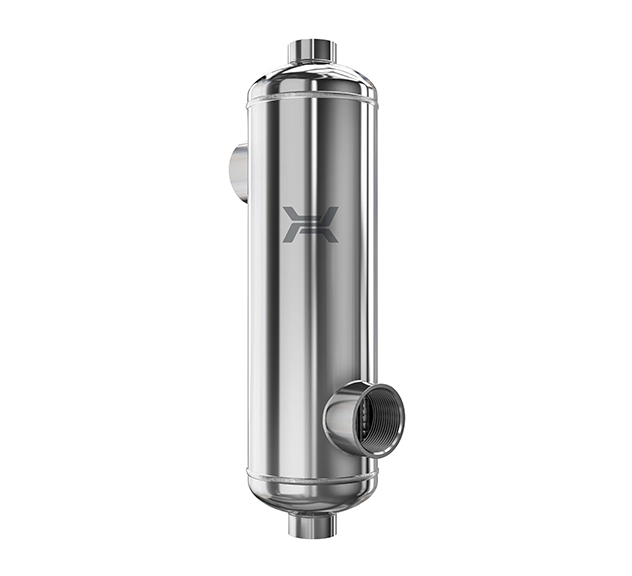

B Variant

  • Corrugated tubes enhance heat transfer and prevent sediment build-up.
  • Compact, welded, and airtight structure.
  • High flow rate with minimal pressure losses.
REV variant Shell and Tue heat exchangers

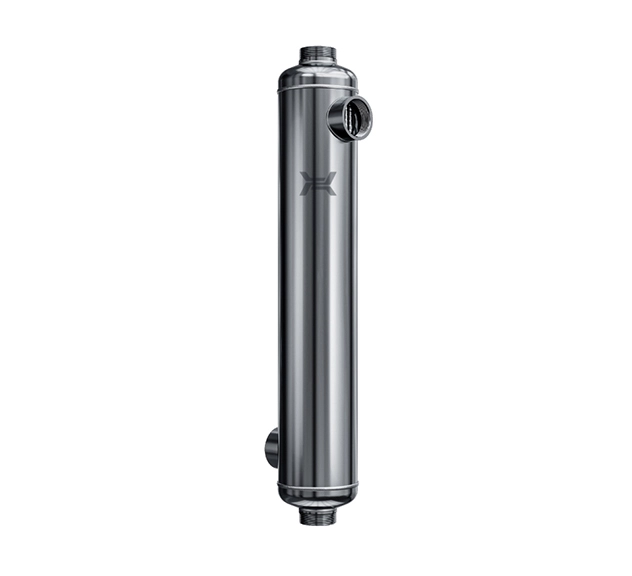

REV Variant

  • 3-pass tube bundle design ensures efficient thermal power utilisation.
  • Compatible with heat pumps, solar panels, and conventional heating sources.
TI variant Shell and Tube heat exchangers

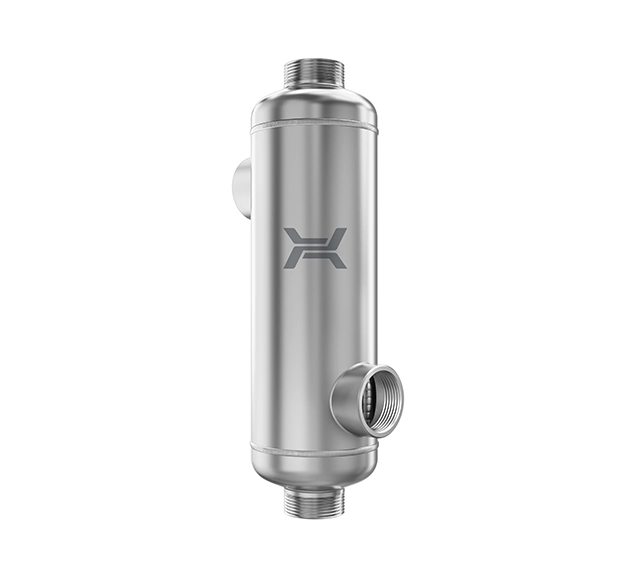

TI Variant

  • Titanium construction ensures maximum resistance to chlorine, fluorine, and salt.
  • Compact design with high durability in aggressive environments.
