Protection Sheets for our Heat Exchangers accessories range

Accessories

Our extensive range of accessories enhances the installation and operation of Hexonic products, offering additional features and components that make the devices more efficient and easier to maintain. These accessories are designed to be fully compatible with our products, ensuring seamless integration and maximising their functionality. From insulation to protection sheets, each accessory plays a vital role in optimising system performance and protecting the equipment.



Typical applications for our HDPE & PTFE Air Operated Diaphragm Pump:

  • Thermal Insulation: Prevents energy losses, protects against freezing and corrosion, and minimises environmental impact
  • Mounting and Fitting Accessories: Facilitate smooth installation and proper alignment of equipment
  • Cleaning Systems: Improve the maintenance and longevity of the devices, keeping them running efficiently
  • Protection Components: Safeguard equipment from external damage and environmental factors



Specifications

Features

Products

Design

Operation

Specifications

Insulation Type Exchanger Type Thickness (mm) Heat Conductivity (W/mK) Max Temperature (°C) Density (kg/m³)
PFI JAD 30 0.024 +135 –
AMWI JAD 30 0.035 250 –
APFI L 30 0.026 135 35 ±10%
EPPI L 28 0.035 110 45–55
RNI R 20 0.037 40 to +110 –
AMWI JAG F 30 0.038 580 –

Features

  • Thermal Insulation:
    • Reduces energy losses and protects devices from freezing and internal corrosion.
    • Prevents overheating of the environment and ensures safe operation by protecting users from direct contact with heated surfaces.
  • Compatibility: Accessories are specifically designed to work seamlessly with Hexonic products, ensuring optimal performance and integration
  • Protection: Insulation and protective components safeguard the heat exchangers and other equipment from environmental factors, extending the life of the system
  • Energy Efficiency: Proper insulation helps improve the overall energy efficiency of the system, reducing operational costs
  • Ease of Installation and Maintenance: Most accessories are easy to install and replace, saving time and minimising system downtime

Products

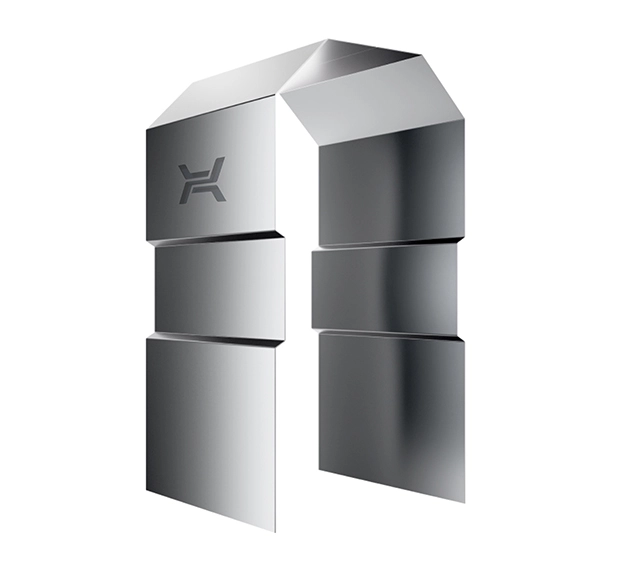

Protection Sheets

To safeguard sensitive components.

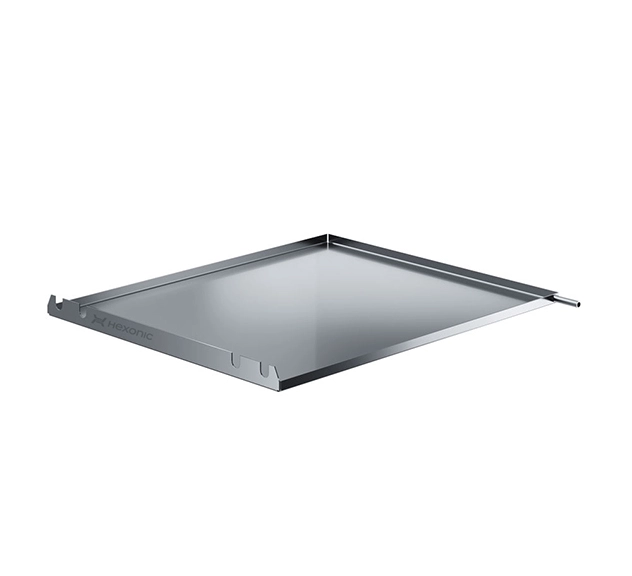

Drip Trays

 For collecting excess fluids.

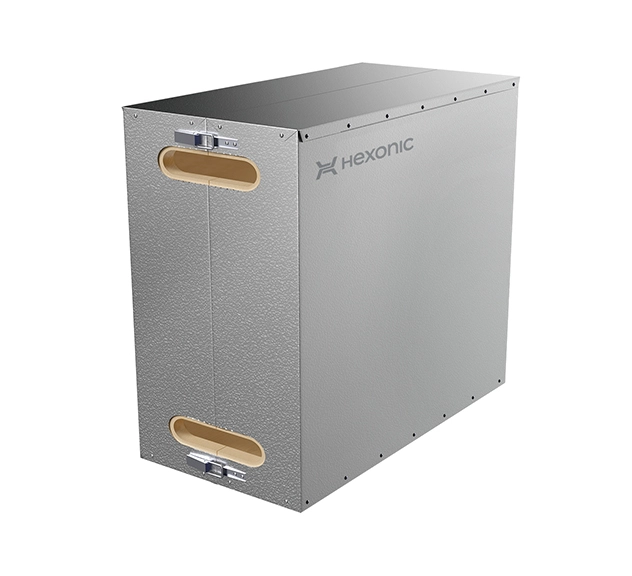

Insulation

Various types for different models.

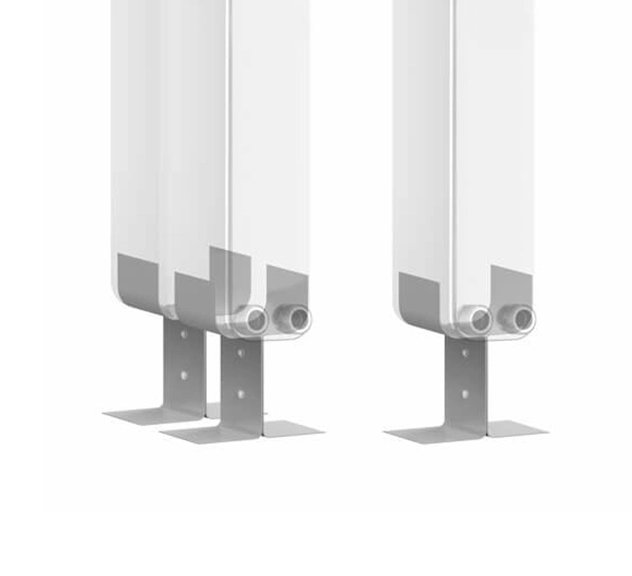

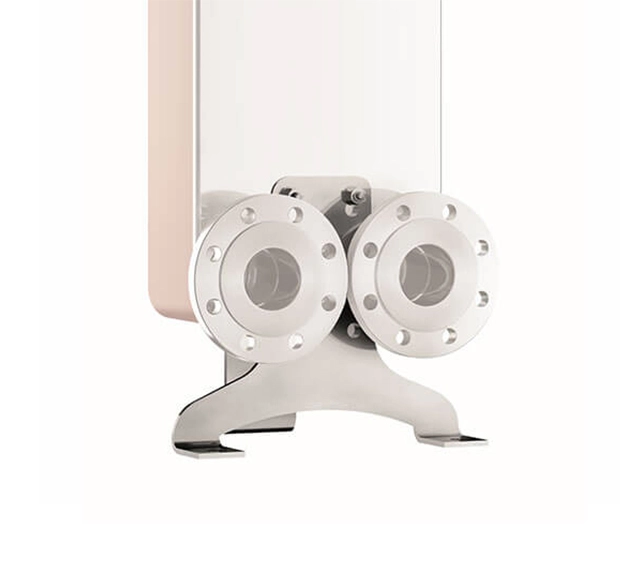

Mounts

For secure installation.

RDS System

For enhanced performance.

Fittings

Including connectors and fasteners.

deSCAL Cleaning System

For maintaining the heat exchanger.

Bolts

For fastening and securing parts.

Design

Insulation Materials:

  • Polyurethane Foam Insulation (PFI): High-quality insulation for JAD exchangers with low heat conductivity and resistance to high temperatures.
  • Mineral Wool Insulation (AMWI): Used for JAD exchangers, offering higher temperature resistance and excellent thermal insulation properties.
  • Polyurethane Insulation with Aluminum Coating (APFI): For L-line heat exchangers, combining excellent insulating properties with high-temperature resistance.
  • Expanded Polypropylene Insulation (EPPI): Eco-friendly and recyclable, used for L-line heat exchangers, providing superior insulation and environmental sustainability.
  • Self-Adhesive Elastomer Foam (RNI): Cold insulation for R exchangers, ensuring minimal heat loss in low-temperature applications.
  • Mounting and Fastening: Accessories are designed to securely mount and fasten exchangers and other components, preventing movement and misalignment during operation

Operation

  • Thermal Insulation: Prevents energy loss by minimising heat transfer and helps maintain the desired temperature of the fluid
  • Drip Trays and Protection Sheets: Protect the surrounding environment from any leakage or spills while shielding sensitive equipment from dust, dirt, or damage
  • Cleaning Systems: The deSCAL system helps maintain clean and efficient heat exchangers by removing scale buildup, ensuring optimal heat transfer and system performance
  • RDS System: Enhances the performance of the system by improving fluid distribution and heat exchange efficiency
