The MX Series Hygienic Single Screw Dosing Pump is part of our Progressive Cavity Pump range and is an ideal solution for the pharmaceutical, chemical, cosmetic and food industries. Dosing a broad range of products from low to very high viscosity, clear and containing solids of various types and size.
These pumps are designed to allow drainage and avoid dead zones and are the highest in class for 'Sterilising In Place' and 'Clean In Place'.
The highest level of finish and utmost cleanliness is maintained through manufacturing.
The DMX, JMX and FMX series are part of this range and are known for their type of coupling of the pump to the drive.
Typical applications for this pump:
Download Brochure
The Hygienic Single Screw Dosing Pumps are available in a wide selection of materials, depending on your application. From corrosion-resistant cast iron and stainless steel for harsher climates, to ceramic coatings for exceptional performance.
Connections, sealing systems and bases can be tailored to meet your application needs, including food-grade models or high-pressure environments. Flushing solutions in accordance with the FDA are available.

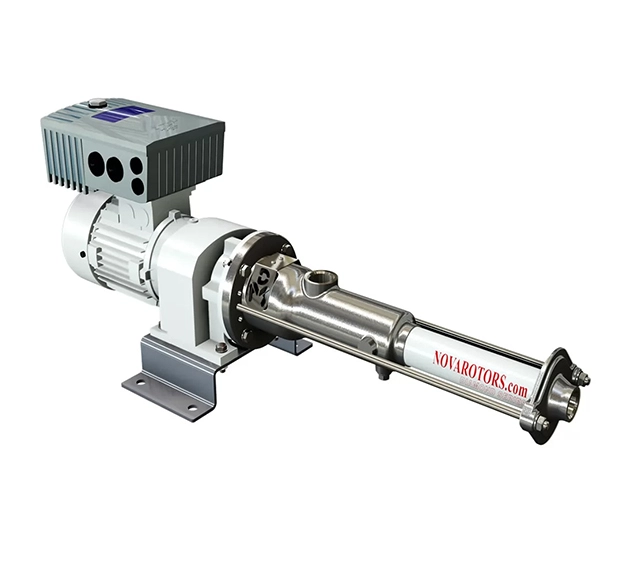

DMXC Series
This pump series is cost-effective and compact, helping reduce installation costs and keeping maintenance simple. Each motor has been chosen as a result of its technical parameters and has undergone rigorous durability tests. In this series, the pump is connected directly to the motor.
JMXC Series
This pump series is the perfect solution for performance and maximum durability when requiring large installation spaces. This is a result of high-load-resisting bearings being precisely mounted on the components. The motor is connected to the pump input shaft via coupling, whilst the bearing holder is modular and can be installed later in a pump with a monoblock holder of the DMX series.
FMXC Series
This pump series is the most versatile as it allows the use of standard flanged gearboxes and output shaft, coupling with hydraulic or pneumatic motors, meaning a simple and compact classic monobloc solution, whilst ensuring reversibility and superior bearing support. FMX is reliable and works with any type of motor, and allows for quick maintenance of the motor drive.

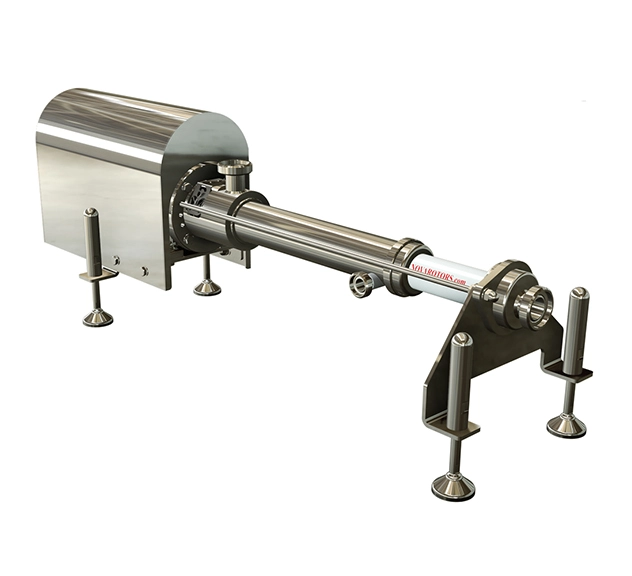

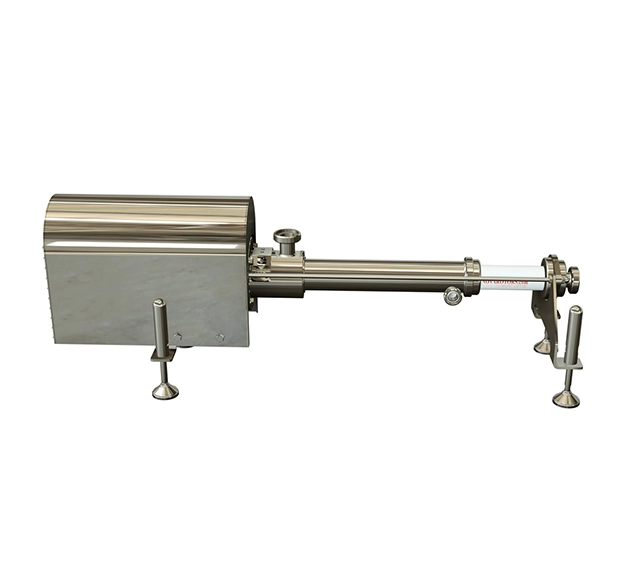

MXF Sanitary Series (Titanium)

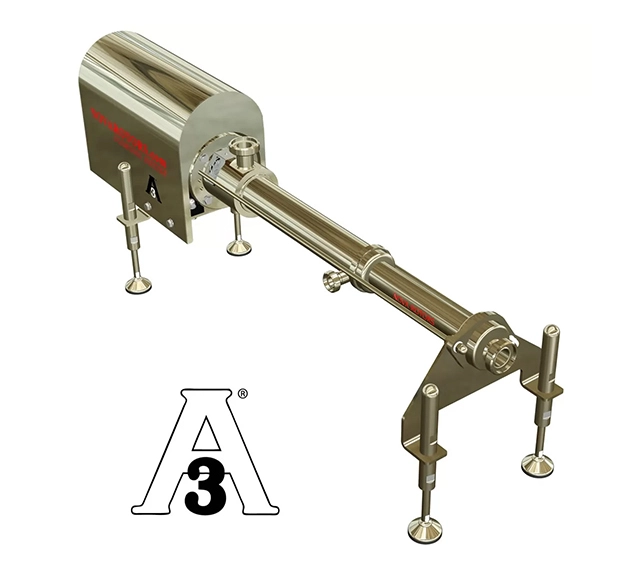

The MXF Sanitary Series is top of the range for the food, pharmaceutical, chemical and cosmetic industries, with an EHEDG sanitary compliant design and certified to a 3-A Sanitary standard.
This pump series is designed for ‘Clean in Place’ and ‘Sterilising in Place’ applications with the highest standard of cleanliness of every component. The monoblock support and base are made of stainless steel, and hygienic feet are also available.
All pumps can be configured with a monoblock support, independent shaft bearing support or bearing housing.
JMXF Series (Titanium)
This version is the best in terms of performance and durability. All forces generated by the pump are absorbed by the bearings in the support, and the motor is connected to the pump’s input shaft via a coupling joint. This is modular and can be retrofitted into a pump with a monoblock support from the M series.
FMXF Series (Titanium)
This pump is an ideal solution in terms of performance and durability. The bearings have a very high load resistance as they absorb the forces generated by the pump. The bearing support is modular and can be retrofitted into a pump with a monoblock support from the DM Series.
Titanium Shaft
The flexible titanium shaft offers advantages such as an extremely clean transmission free from mechanical joints, reducing the risk of product stagnation. This provides maximum hygiene and simplified washing and sanitisation processes, making it perfect for applications in the chemical and food industries.
The Hygienic Single Screw Dosing Pumps are available in a wide selection of materials, depending on your application. From corrosion-resistant cast iron and stainless steel for harsher climates, to ceramic coatings for exceptional performance.
Connections, sealing systems and bases can be tailored to meet your application needs, including food-grade models or high-pressure environments. Flushing solutions in accordance with the FDA are available.
DMXC Series
This pump series is cost-effective and compact, helping reduce installation costs and keeping maintenance simple. Each motor has been chosen as a result of its technical parameters and has undergone rigorous durability tests. In this series, the pump is connected directly to the motor.
JMXC Series
This pump series is the perfect solution for performance and maximum durability when requiring large installation spaces. This is a result of high-load-resisting bearings being precisely mounted on the components. The motor is connected to the pump input shaft via coupling, whilst the bearing holder is modular and can be installed later in a pump with a monoblock holder of the DMX series.
FMXC Series
This pump series is the most versatile as it allows the use of standard flanged gearboxes and output shaft, coupling with hydraulic or pneumatic motors, meaning a simple and compact classic monobloc solution, whilst ensuring reversibility and superior bearing support. FMX is reliable and works with any type of motor, and allows for quick maintenance of the motor drive.
MXF Sanitary Series (Titanium)
The MXF Sanitary Series is top of the range for the food, pharmaceutical, chemical and cosmetic industries, with an EHEDG sanitary compliant design and certified to a 3-A Sanitary standard.
This pump series is designed for ‘Clean in Place’ and ‘Sterilising in Place’ applications with the highest standard of cleanliness of every component. The monoblock support and base are made of stainless steel, and hygienic feet are also available.
All pumps can be configured with a monoblock support, independent shaft bearing support or bearing housing.
JMXF Series (Titanium)
This version is the best in terms of performance and durability. All forces generated by the pump are absorbed by the bearings in the support, and the motor is connected to the pump’s input shaft via a coupling joint. This is modular and can be retrofitted into a pump with a monoblock support from the M series.
FMXF Series (Titanium)
This pump is an ideal solution in terms of performance and durability. The bearings have a very high load resistance as they absorb the forces generated by the pump. The bearing support is modular and can be retrofitted into a pump with a monoblock support from the DM Series.
Titanium Shaft
The flexible titanium shaft offers advantages such as an extremely clean transmission free from mechanical joints, reducing the risk of product stagnation. This provides maximum hygiene and simplified washing and sanitisation processes, making it perfect for applications in the chemical and food industries.
| Max Flow (m³/hr) | 2.7³/hr |
| Max Pressure (m) | 24m (348psi) |
| Temperature Range (°C) | -40°C up to 150°C |
