Mobile Decanting Unit

Our Mobile Decanting Pump Units include a discharge lance with PoD valve and adjustable swan neck for dispensing directly into the points the chemical is required, thus removing the risk of operators carrying buckets of hazardous chemicals that are often in excess of the safe working weights.

The Pneumatic Batcher is a fully pneumatic predetermining counter system. It registers pump strokes via the air exhaust of an AODD pump, stopping the pump once the pre-set number of strokes has been recorded, thus controlling the volume of product dispensed by the pump.

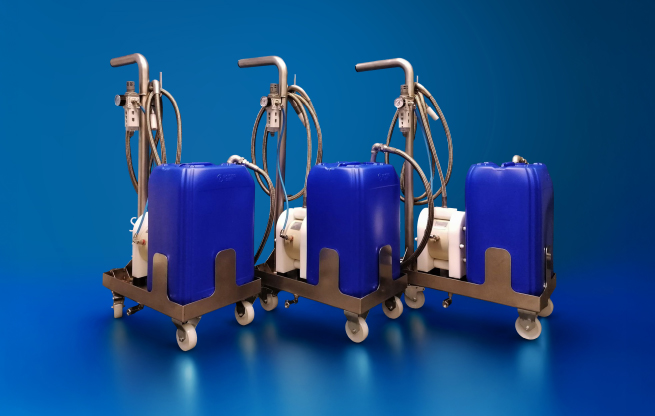

MDU-20 Mobile Decanting Unit

MDU-200 Mobile Decanting System

Removes the risks associated with carrying open containers of chemicals to the process Controls the amount of dispensed chemicals preventing over-dosing PoD valve prevents drips Easy to manoeuvre Designed to fit through a standard door Self-braking when vertical Can be adjusted to suit differing chemical container neck positions Fully pneumatic Simple operation Integral hose stowage PoD valve improves accuracy due to minimal wet leg Broad media compatibility Stainless steel trolley construction

Removes the risks associated with carrying open containers of chemicals to the process Controls the amount of dispensed chemicals preventing over-dosing Shepherd’s crook with integral NRV improves accuracy and minimises drips Fully manoeuvrable Locking front wheels Fully pneumatic Simple operation Integral hose stowage Broad media compatibility Simple integral refilling system Top-plate and front legs can be removed to allow the container to be replaced Stainless steel trolley construction Ideal for positioning next to the dosing point preventing the need for long chemical lines

Max Capacity: 50 l/min

Rated Capacity at 4 Bar: 30 l/min

MDU-20 System: Designed for 20 or 25L containers

MDU-200 System: Designed for 205L Drums

Both systems feature the following key components:

• TPUK-BP Pneumatic Batch Controller
• T(X)50 PTT Air-Operated Diaphragm Pump
• Pump Speed Control Blocking Needle Valve
• Air Filter & Pressure Regulator with Gauge
• Stroke Sensitivity Adjustment Screw
• Discharge Hose with POD valve and Adjustable Swan Neck

The system will dispense fluid from its onboard vessel and stop the pump automatically once the number of strokes recorded equals the number in the pre-set value (pump strokes). If stopped mid-batch, the pump will stop immediately, and the number of recorded strokes will be re-set to zero.

The Batcher is also equipped with a loss of pressure automatic reset system. If the compressed air supply is removed, the start/stop-push/pull valve will automatically reset to the ‘off’ position. The MDU-200 system also features a fill function that enables the operator to fill the onboard tank from a bulk container.
