Our JP 180 PP & HC Electric Drum Pump Smartset is a pre-assembled, high-efficiency solution for safely transferring chemicals and detergents around a facility.
This lightweight and versatile solution features a Polypropylene tube and Hastelloy-C shaft and rotor. The SMART motor contains an integrated electric switch in the handle for flow control.

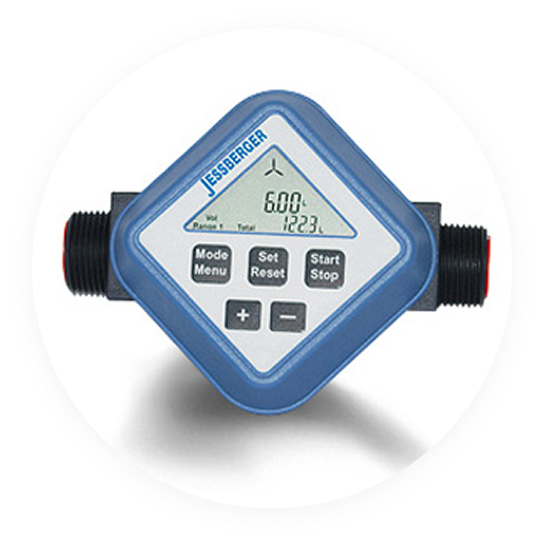

This Drum Pump is also equipped with an electronic flow meter with batch control for accurate, controllable dispensing.
This pump can be personalised to meet your needs.
Applications for the JP 180 PP & HC Electric Drum Pump Smartset include:
| Specification | Data |
|---|---|
| Max Flow Rate: | 93 l/min |
| Max Head: | 11m |
| Max Viscosity: | 600 cPs |
| Max Density: | 1.5kg/dm³ |
| Max Temp: | 50°c |
Key features and benefits of the JP 180 PP & HC Electric Drum Pump Smartset include:

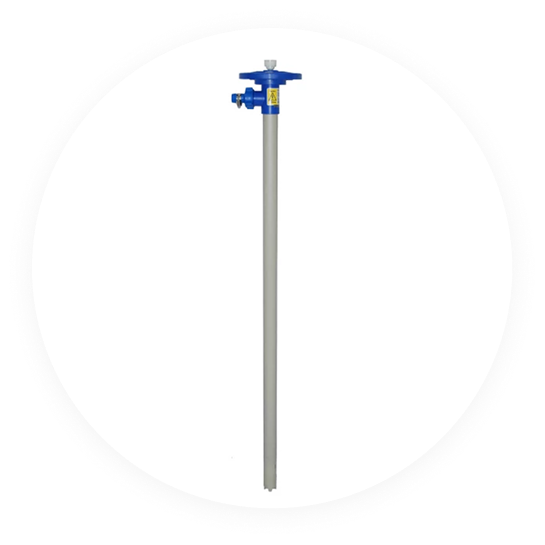

41mm x 1000mm ø PP with Hastelloy-C shaft & rotor, 1¼” ISO G Outlet with 1” Hose Tail & SS Hose Clamp

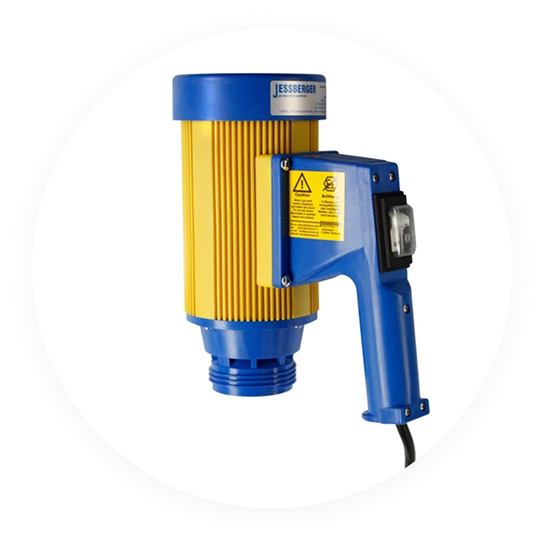

JP-280 Universal Motor with batch control integrated in handle. Double Insulation Protection. Overload Protection Switch. Speed control on request.
1” PP Housing and internal parts, FKM valve seat and O-rings with Hastelloy spring

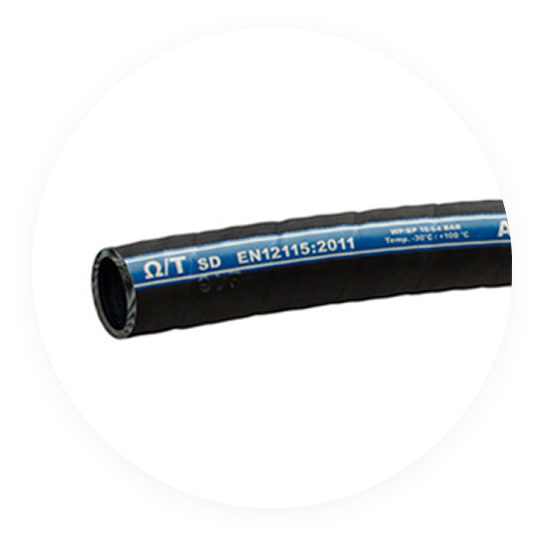

Smooth walled conductive, 1” UHMWPE hose, suitable for nearly all chemicals, oils and gasoline.
The user can select the desired flow rate using the keypad and start the filling process immediately. To ensure best dosing accuracy, the flowmeter can be calibrated for different media.
