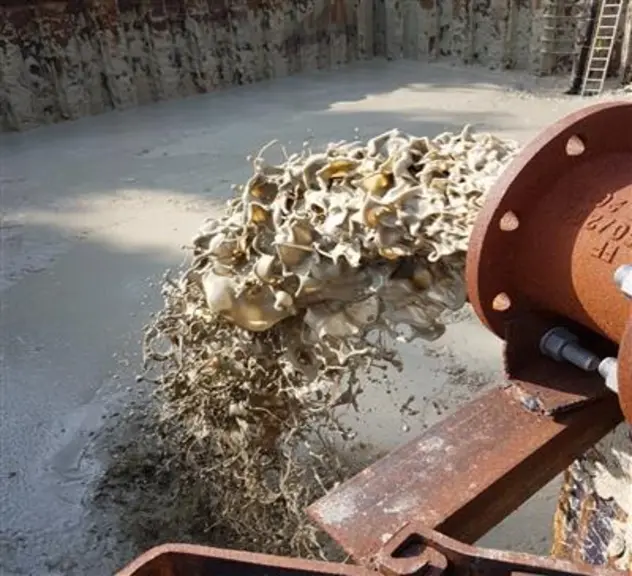

BV110-D265-Bentonite Pump in a Construction Pit
In Pit

BV110 D265 Bentonite Pump

Tapflo UK is proud to be the exclusive UK Partner of BBA Pumps, a leading Dutch manufacturer of the highest-quality, best-in-class Diesel-Driven Sets and Self-Priming Centrifugal Pumps.

Our BV110 D265 Bentonite Pump is a robust 4-inch Diesel-Driven Centrifugal Pump designed for pumping drilling fluids, abrasive sludge, and bentonite with solids up to 80mm. Equipped with a modern Hatz diesel engine and a large vacuum priming system, this pump ensures high efficiency and compliance with the latest global emission standards.

  • Horizontal directional drilling (HDD)
  • Controlled tunnelling operations
  • Sludge and bentonite transfer
  • Abrasive slurry pumping

Download Brochure
Overview

With a pump flow capacity of up to 285m³/h, the BV110 D265 Bentonite Pump is built for reliability and performance in tough conditions. Its chrome molybdenum impeller and wear plate provide excellent durability against abrasive materials, while the advanced vacuum system facilitates quick and efficient priming. The sound-attenuated canopy ensures quiet operation and weather resistance.

Features & Benefits
  • High Performance: Capable of flows up to 285 m³/h with a head of 34 mwc
  • Durable Build: Chrome molybdenum impeller and wear plate withstand abrasive conditions
  • Efficient Priming: Features a 100 m³/h vacuum system for quick and reliable priming
  • Low Emissions: Powered by a Stage-V compliant Hatz diesel engine
  • User-Friendly Design: Easy-clean float box, large inspection covers, and accessible drain valves
  • Sound Attenuated: Operates quietly at 64dB from 10m
Specifications
Discharge x Suction 4″ x 4″
Max. Flow 285 m³/h
Max. Head 34 mwc
Free Passage 80mm
Priming System MP100 (100 m³/h)
Engine Hatz, 1900 rpm
Canopy M10-23X
Dimensions 2663 x 1050 x 1595 mm
Dry Weight 1790 kg
Variations
  • Central flushing system for prolonged pump life
  • Pump trailers for enhanced mobility
  • Pump telematics (linQ) for remote monitoring
  • Radio remote control
  • Portable piping products
