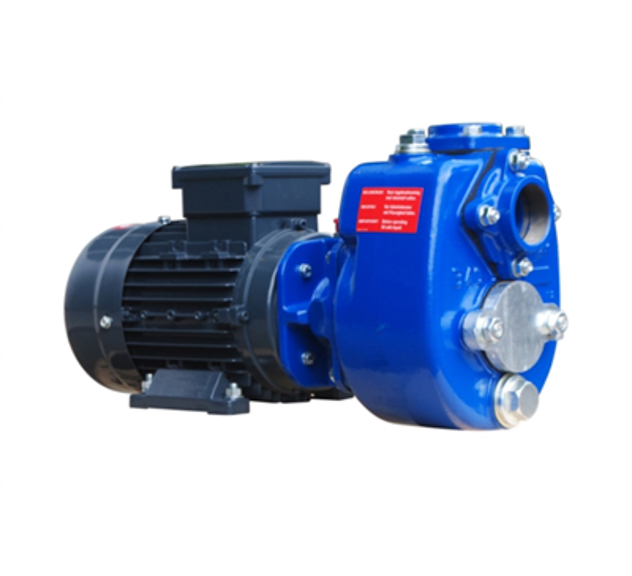

Our BBA Self Priming Centrifugal Pump, part of the B-Series from Dutch partner, BBA Pumps, is distributed by Tapflo UK to the Industrial market. The B40 model stands out as an Electrically Driven Self Priming Centrifugal Pump, offering flow rates of 21m³/hr and a max head of 12 m.W.C. Constructed from high-quality Cast Iron and Stainless Steel, these versatile pumps cater to diverse industrial needs, finding applications across various industries like Wastewater Management and Construction. The B-Series Electrically-Driven pumps include the Electrically Driven Self Priming Pumps (2-pole), Electrically Driven Self Priming High Head Pumps (2-pole), and Electrically Driven Solids Handling Pumps (4-pole), providing comprehensive solutions. For enhanced versatility, a range of Diesel Driven Self Priming Centrifugal Pumps is also available. Equipped with an Open impeller design for solids and particle handling, these pumps offer a free passage of up to 80mm and are fitted with a cooled shaft seal, making them suitable for use with hot fluids. Additionally, ATEX certification is available on request for enhanced safety in hazardous environments.
Typical applications for our BBA Self Priming Centrifugal Pump:
Overview
Features & Benefits
Specifications
Tapflo UK is proud to be distributing BBA Pumps’ B-Series to our customers.
BBA has been manufacturing the B-series range of Self-Priming Centrifugal Pumps since the 1980s. These pumps are perfect for a diverse range of applications, from wastewater management to construction purposes.
Included within the B-Series range are:
- Electrically Driven Self-Priming Pumps, 2-Pole
- Electrically Driven Self-Priming High Head Pumps, 2-Pole
- Electrically Driven Solids Handling Pumps, 4-Pole
The B-series is fitted with an open impeller, changeable wear plate and non-return valve in the suction port. These pumps are easily maintained and have minimal spare part costs.
The B-series can be supplied in sizes from 1” up to 12” with free passage up to 80mm.
The range has been designed with a clear focus on reliability, efficiency and durability, ranging from 1-1/2ʺ to 12″. They feature an open impeller configuration combined with a changeable wear plate, facilitating servicing and minimising costs of spares. All B-Series pumps are fitted with a non-return valve in the suction port, eliminating the need for a foot valve in the suction line and allowing quick priming.
Why choose the BBA Self-Priming Centrifugal Pump?
- Complete in-house design & production
- Over 60 years of experience in the market
- Extensive testing facility in-house
- Contemporary & functional design
- Durable & eco-friendly materials
- Custom builds available
Design Features
- Open Impeller for Solids and Particles: The BBA Self-Priming Centrifugal Pump features an open impeller design, perfectly suited for handling solids and particles. This design ensures efficient and reliable operation, even in challenging conditions
- Free Passage of Up to 80mm: With a generous free passage, these pumps can handle liquids containing larger debris and particles, making them a versatile choice for various industries
- Equipped with Cooled Shaft Seal: The inclusion of a cooled shaft seal prolongs the pump’s life and minimises wear, guaranteeing consistent performance over time
- Suitable for Hot Fluids: Whether you’re dealing with high-temperature liquids or processes, these pumps are up to the task, ensuring reliable operation in a wide range of environments
- ATEX-Rating for Hazardous Environments: These pumps can be equipped with ATEX rating upon request, making them suitable for use in hazardous environments where safety regulations are stringent
Pump Specifications:
- Max. flow: 7,800m³/hr
- Max. head: 200m
- Materials: Stainless Steel, Cast Iron, Bronze
- Connections: 1.5″ BSP
- Free passage: 18mm
- Pump speed: 2850 rpm
- Electric motor: 1.1 kW – 2 pole
- Voltage: 230/400V
- Assembly: Monobloc
- Weight (net): 26kg
| Model |
Flow m3/h |
Head mwc |
ø mm |
Connection (mm) |
Power kW |
Speed rpm |
Assembly |
| B40 |
21 |
15 |
18 |
40 |
1,5 |
2850 |
BVGMC |
| B45 |
22 |
29 |
14 |
40 |
2,2 |
2850 |
BVGMC |
| B50 |
35 |
18 |
25 |
50 |
2,2 |
2850 |
BVGMC |
| B58 |
52 |
62 |
25 |
80 |
11 |
2950 |
BVGMC |
| B70 |
82 |
20 |
22 |
80 |
4 |
2900 |
BVGMC |
| B70-4 |
90 |
19 |
30 |
80 |
5,5 |
2880 |
BVGMC |
| B85-S2 |
76 |
44 |
15 |
80 |
11 |
2930 |
BVGMC |
| B85-S3 |
86 |
57 |
18 |
80 |
18,5 |
2930 |
BVGSMC |
| B100-S2 |
120 |
62 |
29 |
100 |
30 |
2950 |
BVGSMC |
