Tapflo UK is proud to be the exclusive UK Partner of BBA Pumps, a leading Dutch manufacturer of the highest-quality, best-in-class Diesel-Driven Sets and Self-Priming Centrifugal Pumps.
Our BA150KS D285 Sewage Pump is a robust 6-inch mobile pump designed for handling sewage and wastewater with large solids. Available in both diesel and electric configurations, it is ideal for a variety of demanding applications. Featuring a unique screw channel impeller and advanced priming system, the BA150KS is built for high performance and reliability in tough conditions.
Overview
Features & Benefits
Specifications
Variations
The BA150KS D285 comes in two versions:
- Diesel-Driven Variant: Powered by a modern, clean, and economical diesel engine, designed for efficiency and low maintenance
- Electric-Driven Variant: Equipped with a powerful electric motor, suitable for environments with reliable electrical power
- High Solids Handling: Capable of pumping wastewater with solids up to 100 mm, making it suitable for challenging sewage applications
- Impressive Performance:
- Diesel Variant: Maximum flow of 400 m³/h and head up to 27 mwc
- Electric Variant: Maximum flow of 360 m³/h and head up to 19 mwc
- Advanced Centrifugal Pump: Features a screw channel impeller for efficient handling of large solids and long fibrous materials. Includes large inspection covers, suction and pressure gauges, and a heavy-duty bearing frame with extra oil chamber for dry running
- Efficient Priming System: Fully automatic priming system for quick and reliable priming and re-priming, including a diaphragm vacuum pump, check valve, and float box for air-water separation
- Flexible Power Options:
- Diesel Version: Driven by a DriveOn® engine with a variable speed, low fuel consumption (5.5 l/h at BEP), and a service interval of 1500 hours. Meets Stage V emission requirements with no aftertreatment system
- Electric Version: Features a 15 kW motor with options for Direct-On-Line (DOL), soft starter, or Variable Frequency Drive (VFD)
- Sound Attenuated Canopy: Both variants are available with a sound-attenuated canopy, offering quiet operation (64 dB at 10 m) and weather protection. The canopy also includes a composite fuel tank and fluid containment system
- Durability and Safety: Both versions come with a 4-year limited warranty and are available with additional options such as pump trailers and telematics
| Discharge x Suction |
6″ x 6″ |
| Max Flow |
Diesel Variant: 400 m³/h
Electric Variant: 360 m³/h |
| Max Head |
Diesel Variant: 27 mwc
Electric Variant: 19 mwc |
| Free Passage |
100mm |
| Priming System |
MP50 (50 m³/h) |
| Engine/Motor |
Diesel Variant: Hatz, max. speed 1700 rpm
Electric Variant: 15 kW – 4 pole, voltage 400/690V – 50 Hz |
| Fuel Consumption |
Diesel Variant: Max. 5.5 l/h at BEP
Electric Variant: Not applicable |
| Canopy/Frame |
Diesel Variant: M10-23X (Canopy), BF10-23 (Frame)
Electric Variant: L10-23 (Canopy), BF10-23 (Frame) |
| Sound Level |
64 dB at 10 m |
| Dimensions (L x W x H) |
Diesel Variant: 2270 x 1050 x 1595 mm
Electric Variant: 2300 x 1040 x 1400 mm |
| Dry Weight |
Diesel Variant: 1630 kg
Electric Variant: 1400 kg |
| Warranty |
4 years |

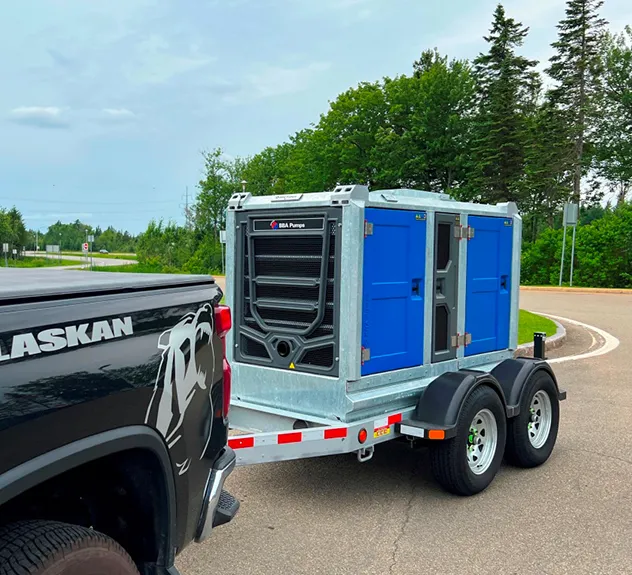

- Pump Trailers: For enhanced mobility and transport
- Pump Telematics linQ: Advanced monitoring and control features
- Cold Climate Package: For operation in extreme cold conditions
- Portable Piping Products: Flexible piping solutions for various applications
