VARiFLO Single Pump Booster Set

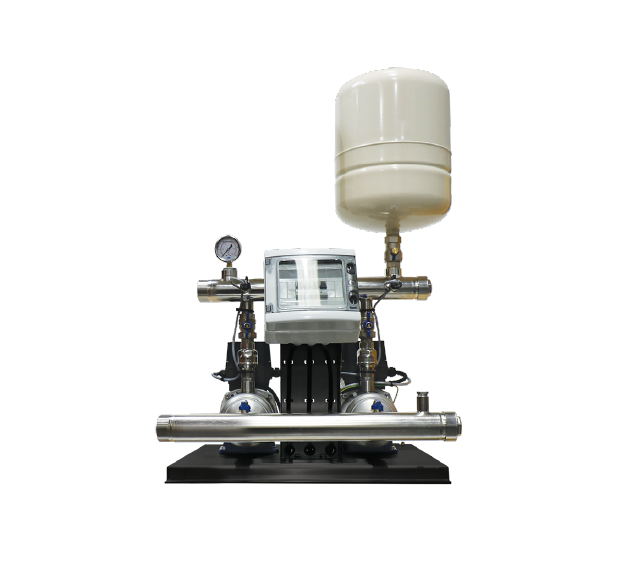

STL AQUABOOST VARIFLO 2H
Variflo Twin Booster Set
The AquaBoost VARiFLO booster set utilities WRAS-approved components* and is available with one, two or three 304/316 Stainless Steel pumps. The Booster Sets are designed to boost water pressure within a building where there is an existing feed tank or incoming mains supply that cannot provide adequate system pressure.
Operated by our advanced variable speed controller, the pumps deliver a nominal flow rate of 3 m³/h and a nominal head pressure of up to 2 bar.
Typical applications for our VARiFLO Booster Sets:
| Specification | Data |
|---|---|
| Max Flow Rate | 24 m³/h |
| Max Head | 9.1 bar |
| Max Air Temperature | 40 °C |
| Material | 304/316 Stainless Steel |
| Voltage | 230 V / 1 / 50 Hz |
| Maximum Static Inlet Pressure 10 m | 10 meters |
| Glycerine Filled Pressure Gauge | Yes |
| Dry Run Protection | Yes |
| Water Temperature Range | Max 23 °C |
