In-Tank 250L
In-Tank 1000L
In-Tank 1000L

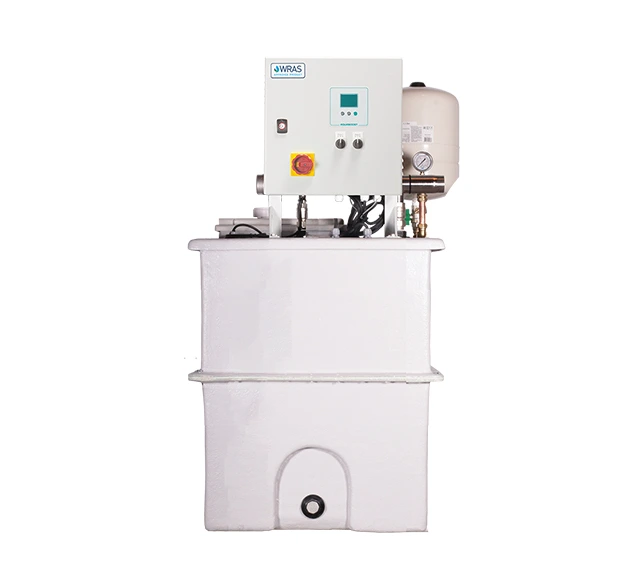

The AQUABOOST IN-TANK booster systems are equipped with one, two or three ultra-quiet submersible pumps and variable speed controllers. These controllers constantly adjust the motor speed to match the changing flow, while maintaining a constant minimum required pressure.
The ABI IN- TANK booster systems series of automatic variable speed booster systems provides a compact, extremely quiet and easy to install solution for a range of domestic and commercial applications. Available with 250 – 2000L cold water storage capacity, with one, two or three pumps providing flow rates up to 27 m3/h and heads up to 8 bar.
Typical applications for our ABI IN-TANK Integrated Booster Systems:
| Specifications | Data |
|---|---|
| Max Flow Rate | 27 m³/h |
| Max Head | 7.9 bar |
| Max Capacity | Up to 2000L |
| Air Temperature | 40 °C |
| Pressure Valve | Up to 24L |
| Material | Stainless Steel |
| Pump Type | Submersible multistage centrifugal |
| Pump Control System | Variable speed/pressure transducer |
| Power Supply | 16 A 230 V.a.c./1/50 Hz |
| Dry run protection | Yes |
