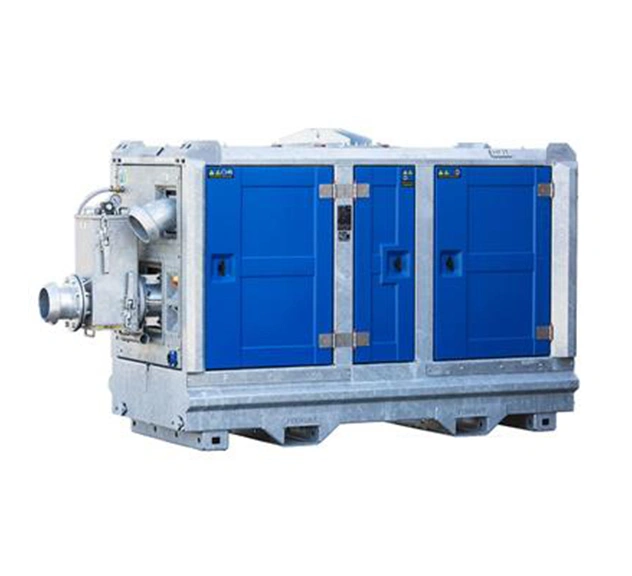

BV150 D275 Bentonite Pump

BV150-D275 Diesel Driven Bentonite Pump On Site

BV150-D275 Diesel Driven Bentonite Construction Pump

6 inch

80mm Solids

Drilling Fluids & Abrasive Sludge

Tapflo are the exclusive UK distributor for BBA’s B-series

Our BV150 D275 Bentonite Pump is a powerful 6-inch Diesel-Driven Centrifugal Pump designed to pump bentonite, abrasive sludge, and drilling fluids containing solids up to 80mm. Built with reliability in mind, it features a high-performance vacuum system and a Stage-V compliant diesel engine.

Offering a flow rate of up to 500 m³/h, it is equipped with a robust impeller and wear plate to handle harsh materials, while its sound-attenuated canopy ensures quiet, safe operation in all environments.

Large-scale horizontal directional drilling (HDD)
Abrasive sludge handling
Drilling fluid transfer

Specifications

Downloads

Features

Variations

Specifications

Discharge x Suction	6″ x 6″
Max. Flow	500 m³/h
Max. Head	42 mwc
Free Passage	80mm
Priming System	MP100 (100 m³/h)
Engine	Hatz, 2000 rpm
Canopy	M10-23X
Dimensions	2663 x 1050 x 1595 mm
Dry Weight	1790 kg

See below to download full specifications

Downloads

BBA BV150 D275 Brochure

Key Features

Exceptional Capacity: Max flow of 500 m³/h with a 42 mwc head
Eco-Friendly Performance: Low-noise, Stage-V compliant diesel engine
Quick Priming: High-capacity vacuum priming system (100 m³/h)
Integrated Safety Features: Key switch, warning lights, and fuel monitoring
Ease of Use: Large inspection covers and accessible maintenance points
