Available from stock BV110-D265-Diesel-Driven-Bentonite-Pumpset

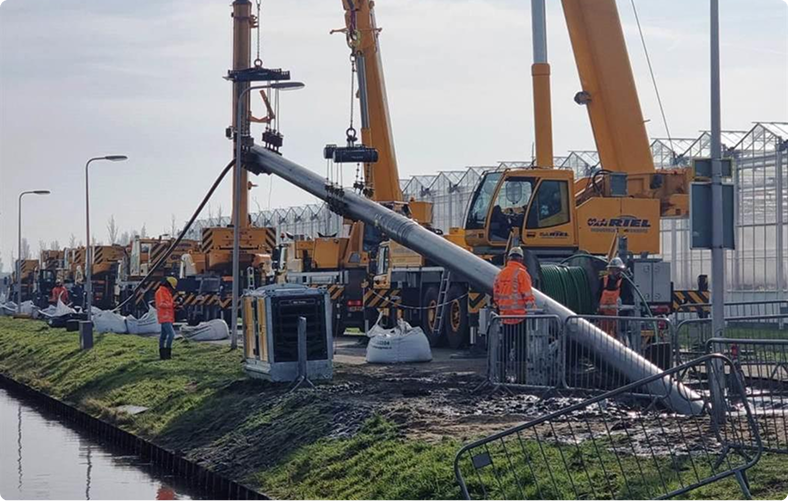

Available from stock BV110-D280 Electrically Driven Bentonite Pump in Construction Pit

Available from stock BV110-D265 Bentonite Pump

BV110-D265-Diesel-Driven-Bentonite-Pumpset BV110-D280 Electrically Driven Bentonite Pump in Construction Pit BV110-D265 Bentonite Pump

4 inch

80mm Solids

Drilling Fluids & Abrasive Sludge

BV110 D265 Bentonite Pump

Tapflo are the exclusive UK distributor for BBA’s B-series

The BV110 D265 Bentonite Pump is a robust 4-inch diesel-driven centrifugal pump designed for demanding applications involving drilling fluids, abrasive sludge, and bentonite with solids up to 80 mm.

Delivering flows of up to 285 m³/h, it features a durable chrome-molybdenum impeller and wear plate for enhanced wear resistance, an advanced vacuum priming system for rapid startup, and a sound-attenuated, weatherproof canopy for quiet, reliable performance.

Powered by a modern Hatz diesel engine, it combines efficiency, durability, and compliance with current global emissions standards.

  • Horizontal directional drilling (HDD)
  • Controlled tunnelling operations
  • Sludge and bentonite transfer
  • Abrasive slurry pumping

Specifications

Downloads

Features

Variations

Specifications

Discharge x Suction 4″ x 4″
Max. Flow 285 m³/h
Max. Head 34 mwc
Free Passage 80mm
Priming System MP100 (100 m³/h)
Engine Hatz, 1900 rpm
Canopy M10-23X
Dimensions 2663 x 1050 x 1595 mm
Dry Weight 1790 kg
See below to download full specifications

Downloads

BV110 D265 Diesel Specifications

Key Features

  • High Performance: Capable of flows up to 285 m³/h with a head of 34 mwc
  • Durable Build: Chrome molybdenum impeller and wear plate withstand abrasive conditions
  • Efficient Priming: Features a 100 m³/h vacuum system for quick and reliable priming
  • Low Emissions: Powered by a Stage-V compliant Hatz diesel engine
  • User-Friendly Design: Easy-clean float box, large inspection covers, and accessible drain valves
  • Sound Attenuated: Operates quietly at 64dB from 10m
BV110-D265

Variations

Variations for the BV110 D265 include:

  • Central flushing system for prolonged pump life
  • Pump trailers for enhanced mobility
  • Pump telematics (linQ) for remote monitoring
  • Radio remote control
  • Portable piping products
