Available from stock BA80H-D290 Diesel Driven High Head Pump

3 inch

25mm Solids

Dewatering

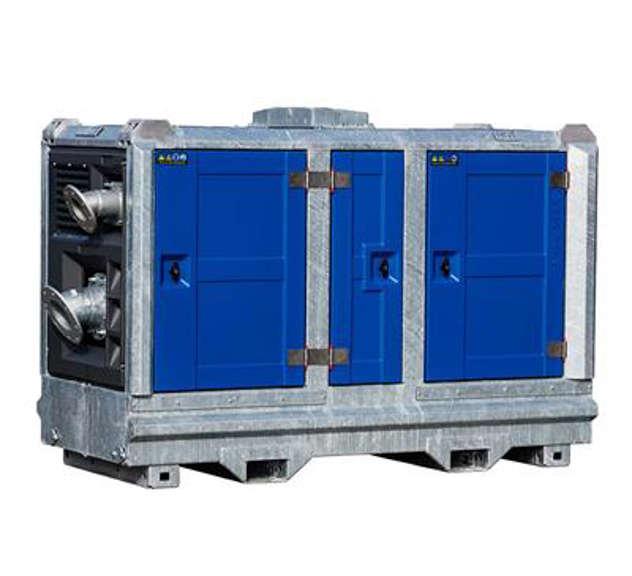

BBA BA80H D290 Diesel Driven High-Head Pump

Tapflo are the exclusive UK distributor for BBA’s B-series

Our BA80H D290 Diesel-Driven High-Head Pump is a premium 3-inch mobile pump designed to handle slightly polluted fluids with solids up to 25 mm. Equipped with a self-priming Centrifugal Pump and an advanced priming system, this unit excels in demanding applications.

The BA80H is powered by a modern, economical Hatz diesel engine that meets the highest Stage V emission standards, making it suitable for use in various global regions.

Typical applications for this pump include:

  • Firefighting
  • Construction
  • Tank Cleaning
  • Underwater Excavation
  • Jetting Wellpoint Filters

Specifications

Downloads

Features

Specifications

Discharge x Suction  3″ x 6″
Max Flow 100m³/hr
Max Head 105 m.w.c
Free Passage 25mm
Priming System MP50 (50 m³/h)
Engine Hatz
Max Speed 2800 rpm
Fuel Consumption @ BEP 13 l/h
Canopy M10-23
Sound Level 69 dB at 10 m
Dimensions (L x W x H) 2270 x 1050 x 1595 mm
Dry Weight 1575 kg
See below to download our full specifications.

Downloads

BA80H D290 Data Sheet

Key Features

  • High Head Capacity: Achieves a maximum total head of 105 mwc, making it suitable for high-pressure applications
  • Slightly Polluted Fluids Handling: Effective for pumping fluids with solids up to 25 mm in diameter
  • Dry Self-Priming: Features a built-in priming system that ensures quick and efficient priming even from dry conditions
  • Efficient Diesel Engine: Driven by a Hatz diesel engine that complies with Stage V emission regulations, offering low fuel consumption and minimal noise
  • High Efficiency: Enclosed impeller design and excellent NPSH curve result in outstanding pump performance and low operating costs
  • Sound Attenuated Canopy: Offers ultra-quiet operation, protection from the elements, and features a composite fuel tank and fluid containment system
BA80H-D290
