Tapflo are the exclusive UK distributor for BBA’s B-series

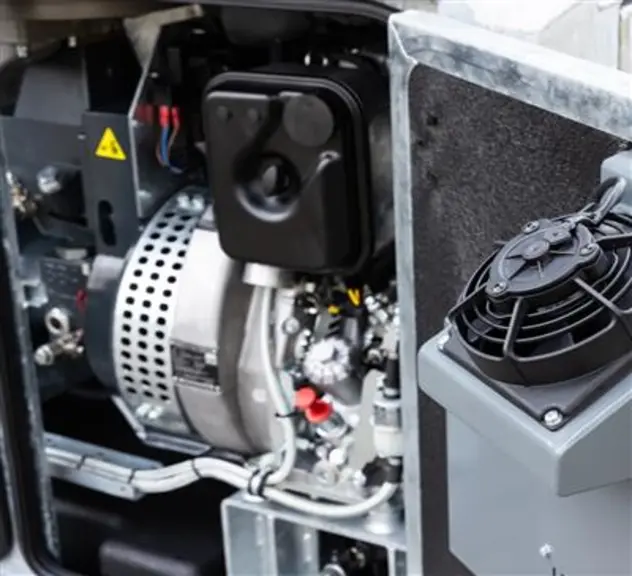

The BA55E D220 High-Head Pump is a portable 2-inch diesel-driven pump designed for clear liquid transfer and solids handling up to 9mm.
With dry self-priming capability, a modern emissions-compliant engine, and a high-efficiency centrifugal pump featuring a semi-open impeller, it delivers reliable performance for demanding high-head applications such as jetting wellpoint filters.
Its robust priming system and sound-attenuated canopy provide an economical, dependable, and easy-to-deploy pumping solution.
An optional remote-control and branded canopy can be added.
Applications include:
| Discharge x Suction | 2″ x 3″ |
| Max. Flow | 74 m³/h |
| Max. Head | 51 mwc |
| Free Passage | 9mm |
| Engine | Hatz, max speed 3000 rpm |
| Fuel Consumption | 4 l/h at BEP |
| Sound Level | 61 dB at 10 m |
| Dimensions | 1500 x 940 x 1228mm |
| Dry Weight | 895 kg |
