Tapflo are the exclusive UK distributor for BBA’s B-series

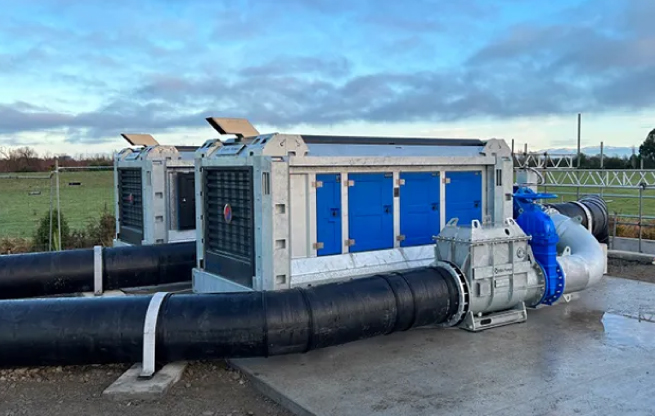

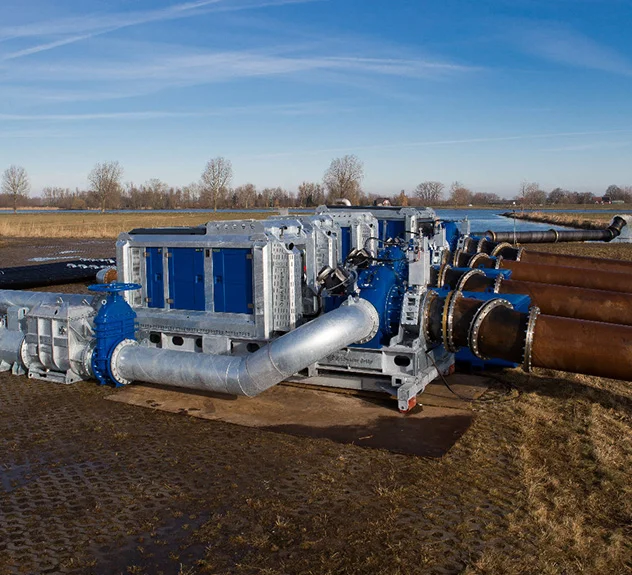

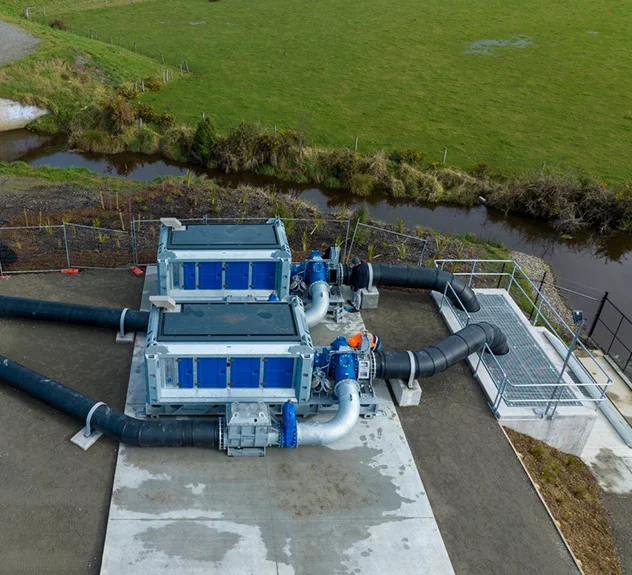

The BA500G D675 High-Flow Pump is built for heavy-duty performance, combining a 20-inch Centrifugal Pump with a powerful diesel engine.
Its high flow rate and large solids handling capacity make it an ideal choice for demanding applications. The pump features a high-efficiency, mixed-flow impeller and an excellent Net Positive Suction Head required (NPSHr) curve, ensuring reliable operation in various conditions.
The sound-attenuated canopy offers protection and ease of use, making it a robust solution for challenging environments.
Typical applications include:
| Feature | Details |
|---|---|
| Discharge × Suction | 20″ × 24″ |
| Maximum Flow | 4,500 m³/h |
| Maximum Head | 26 mwc |
| Free Passage | 115 mm |
| Priming System | MP100 (100 m³/h) |
| Engine | Volvo Penta |
| Maximum Speed | 740 rpm |
| Fuel Consumption at BEP | 65 l/h |
| Canopy | EL23-58 |
| Sound Level | 75 dB at 10 m |
| Dimensions (L × W × H) | 5,830 × 2,306 × 2,300 mm |
| Dry Weight | 10,900 kg |
| Warranty | 4 years |
