Available from stock BA400G D500 High-Flow Pump

BA400G

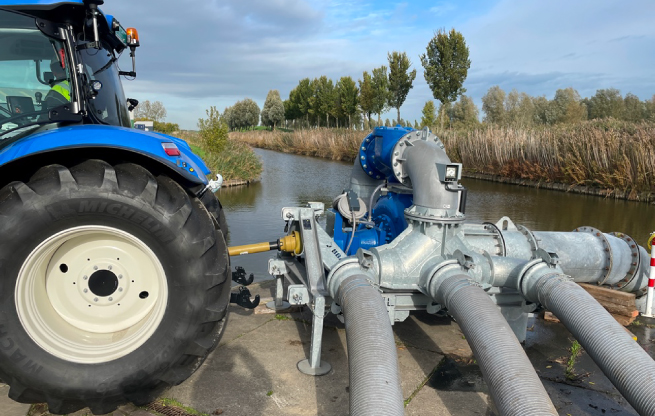

Available from stock A photo of BA400G D500 tractor driven flood control pump in use as a flooding pump in a reservoir

On-site

Available from stock BA400G D500 high flow Pump on site

On-site

BA400G D500 High-Flow Pump A photo of BA400G D500 tractor driven flood control pump in use as a flooding pump in a reservoir BA400G D500 high flow Pump on site

16 inch

100mm Solids

Tractor Driven

Dewatering

BBA BA400G D500 High Flow PTO Pump

Tapflo are the exclusive UK distributor for BBA’s B-series

Our BA400G D500 High-Flow Pump is a high-capacity, 16-inch, PTO-driven pump designed for efficient, reliable dirty-water pumping. Perfect for emergency scenarios, this pump leverages the tractor’s power take-off (PTO), making it a versatile and space-efficient solution.

Ideal for temporary high-flow applications, the BA400G D500 ensures rapid deployment and operation with minimal storage requirements.

Applications include:

  • Flood protection
  • Waste water management
  • Emergency pump units
  • Irrigation
  • Agriculture
  • Horticulture

Specifications

Downloads

Features

Specifications

Feature Details
Discharge x Suction 3 × 12″ IT × 20″
Max. Flow 3,000 m³/h
Max. Head 23 mwc
Free Passage 100 mm
Priming System MP100 (100 m³/h)
Required PTO Power 125 kW
Max. Speed 1,000 rpm
Frame 3-point suspension frame
Dimensions (L × W × H) 2,538 × 2,506 × 2,100 mm
Dry Weight 3,500 kg



See below to download our full specifications.

Downloads

BA400G D500 Data Sheet

Key Features

  • High Flow Capacity: Pumps up to 3000 m³/h, ideal for demanding applications
  • Large Solids Handling: Equipped with a 100 mm free passage impeller to handle substantial debris
  • PTO Driven: Utilises a readily available tractor PTO for operation, minimising the need for dedicated power sources
  • Efficient Priming System: The MP100 system allows for quick priming and re-priming, even from dry conditions
  • Compact and Portable: Designed to be stored compactly and easily transported with a tractor
BA400G-D500
