BA300KS-D355 Electrically Driven Pump with Variable Frequency Drive

12 inch

130mm Solids

Sewage & Wastewater

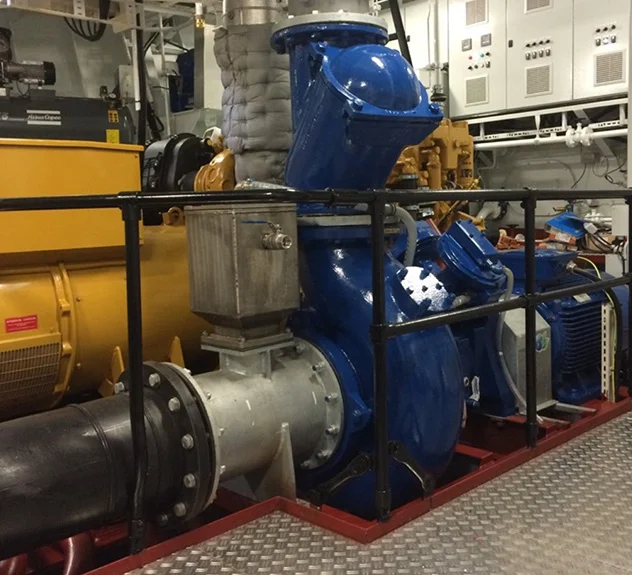

BBA BA300KS D355 Electric Sewage Pump

Tapflo are the exclusive UK distributor for BBA’s B-series.

Our BA300KS D355 Sewage Pump is a 12-inch Electrically-Operated Pump with a screw-channel impeller for unparalleled solids-handling capabilities up to 130mm. This pump is available in both open-frame and canopy-mounted configurations, providing versatile solutions for sewage bypassing and wastewater management.

This electrically driven pump boasts low operating costs and high-efficiency output. Its robust design ensures safe and quiet operation in urban and industrial settings.

Typical applications include:

  • Sewage handling
  • Sewer bypassing
  • Wastewater handling
  • Industrial dewatering

Specifications

Downloads

Features

Specifications

Spec Value
Discharge x Suction 12″ x 12″
Max. Flow 1020 m³/h
Max. Head 26 mwc (2.6 Bar)
Free Passage 130 mm
Priming System MP100 (100 m³/h)
Motor Power 55 kW (options: 45 kW, 75 kW)
Voltage 400/690V – 50 Hz
Starting Method DOL – VFD
Dimensions 3313 x 1200 x 2125 mm
Dry Weight 3600 kg
See below to download our full specifications.

Downloads

BBA BA300KS D355 Data Sheet

Key Features

  • High Capacity: Flow rates up to 1020 m³/h and head up to 26 mwc (2.6 Bar)
  • Customisable Performance: 3 different motor options for tailored solutions (45 kW, 55 kW, 75 kW)
  • Durable Design: Hot-dip galvanised open frame or sound-attenuated canopy options
  • Safety & Convenience: Lockable T-locks, large inspection covers, and minimal maintenance
  • Reliable Priming: Fully automatic MP100 priming system (100 m³/h) for quick priming and re-priming, even from dry conditions
  • Built to Last: Screw channel impeller with adjustable wear plate, best-in-class efficiency and NPSH curve, heavy-duty bearing frame with extra oil chamber for dry running
  • Optional Control Panel: with variable frequency drive, featuring automatic level control to cope with changing water supply
