Tapflo are the exclusive UK distributor for BBA’s B-series.

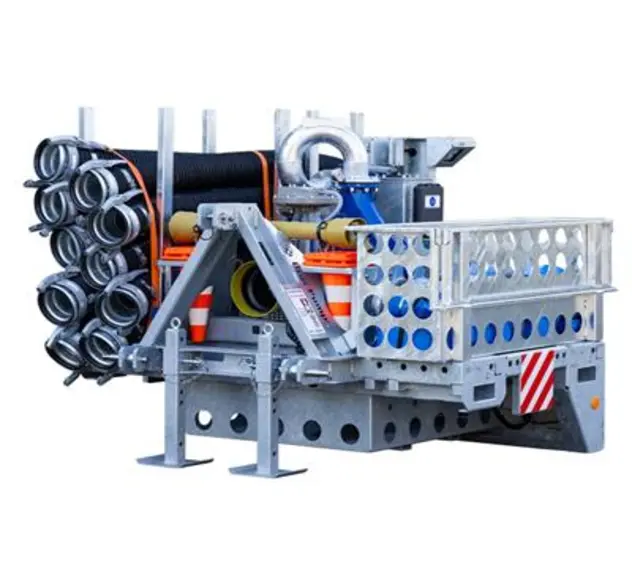

Our BA220L D510 High-Flow Pump is a 12-inch PTO-Driven Pump that delivers high flow rates for large-scale water transfer and emergency operations. Its robust design ensures reliable performance in demanding conditions.
The BA220L D510 combines high efficiency with ease of deployment, thanks to its hot-dip galvanised tractor frame and automatic priming system. It’s built around a 12-inch centrifugal pump with an enclosed impeller and an adjustable wear plate, providing an 80 mm free passage well-suited to dirty water, and is designed for quick action and long-term reliability in demanding applications such as large-scale dewatering and emergency response.
Applications for the BA220L D510 Pump include:
| Spec | Value |
|---|---|
| Discharge x Suction | 12″ x 12″ |
| Max. Flow | 1020 m³/h |
| Max. Head | 38 mwc (3.8 Bar) |
| Free Passage | 80 mm |
| Priming System | MP100 (100 m³/h) |
| Max. Speed | 1000 rpm |
| Dimensions | 2182 x 1122 x 1936 mm |
| Dry Weight | 1950 kg |
| Required PTO Power | 100 kW |
