Tapflo are the exclusive UK distributor for BBA’s B-series

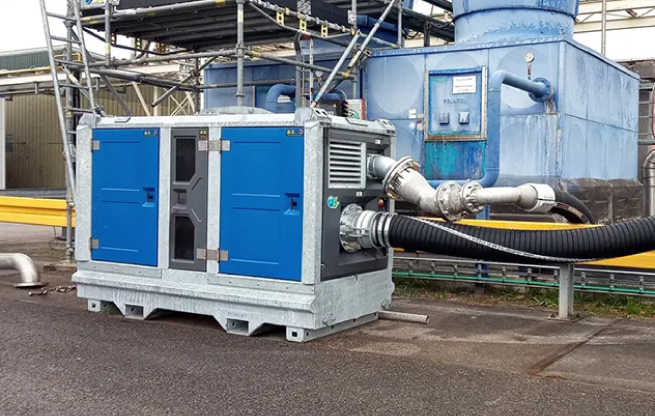

Our BA180KS D315 Sewage Pump is a robust 8-inch pump designed for heavy-duty applications. Available in both diesel and electric variants, this pump is engineered to handle wastewater with large solids (up to 125mm) and long fibrous materials effectively. It is equipped with a state-of-the-art priming system and features a high-performing Centrifugal Pump to ensure reliable operation in demanding environments.
Flexible Power Options: Available with a modern Stage V-compliant Hatz diesel engine (quiet, economical, variable-speed) or a 30 kW electric motor with DOL, soft-starter, or variable-frequency-drive options.
Typical applications include:
| Feature | Diesel | Electric |
|---|---|---|
| Discharge x Suction | 8″ x 8″ | 8″ x 8″ |
| Max. Flow | 580 m³/h | 485 m³/h |
| Max. Head | 41 mwc | 28 mwc |
| Free Passage | 125 mm | 125 mm |
| Priming System | MP50 (50 m³/h) | MP50 (50 m³/h) |
| Fuel Consumption/Voltage | 9 l/h | 400/690V – 50 Hz |
| Canopy | M10-23X | L10-23 |
| Dimensions (L x W x H) | 2270 x 1050 x 1595 mm | 2300 x 1040 x 1400 mm |
| Dry Weight | 1675 kg | 1650 kg |
