Available from stock BA180E D328 Multi Use Pump Diesel

Diesel

Available from stock BA180E D328 Multi-Use Pump Electric

Electric

Available from stock BA180E D328 multi-use Diesel Pump on Site

Pump on-site

BA180E D328 Multi Use Pump Diesel BA180E D328 Multi-Use Pump Electric BA180E D328 multi-use Diesel Pump on Site

8 inch

80mm Solids

Dewatering

Electric or Diesel

BBA BA180E D328 Multi-Use Pump

Tapflo are the exclusive UK distributor for BBA’s B-series

Our BA180E D328 Multi-Use Pump is an 8-inch pump designed for efficiency and versatility in handling dirty water and sewage. Available in both diesel and electric configurations, this pump is equipped to handle large solids and effectively cope with varying water supply conditions.

With advanced features like a vacuum-assisted Centrifugal Pump and sound-attenuated canopies, the BA180E ensures reliable performance across diverse applications.

Flexible Power Options: Available with a Stage V-compliant Perkins diesel engine (clean, economical, variable speed) or a 45 kW electric motor with DOL, soft starter, or variable frequency drive options.

Typical applications include:

  • Sewage
  • Dirty Water

Specifications

Downloads

Features

Specifications

Feature Diesel Electric
Discharge x Suction 8″ x 8″ 8″ x 8″
Max. Flow 735 m³/h 620 m³/h
Max. Head 44 mwc 32 mwc
Free Passage 80 mm 80 mm
Fuel Consumption/Voltage 18 l/h 400/690V – 50 Hz
Canopy M12-29 L10-23

Downloads

BBA BA180E D328 Data Sheet

Key Features

  • High Solids Handling: Capable of handling solids up to 80mm, ideal for dirty water and sewage applications.
  • High Flow Performance: Delivers up to 735 m³/h (diesel) and 620 m³/h (electric)
  • Maximum Head: Provides up to 44 mwc (diesel) and 32 mwc (electric)
  • Automatic Priming System: Reliable priming and re-priming from dry conditions using a diaphragm vacuum pump, check valve, and float box.
  • Mounting & Protection Options: Offered frame-mounted (stackable) or with a sound-attenuated canopy for reduced noise, environmental protection, and integrated fluid containment with a composite fuel tank.
  • Pump Design: Centrifugal pump configuration for efficient and consistent performance.
  • Advanced Impeller Design: Open impeller with an adjustable wear plate and cutting slots for effective handling of large solids.
  • Easy Maintenance & Monitoring: Large inspection covers with suction and pressure gauges for convenient access and system monitoring.
  • Heavy-Duty Construction: Durable bearing frame with an additional oil chamber to support dry running conditions.

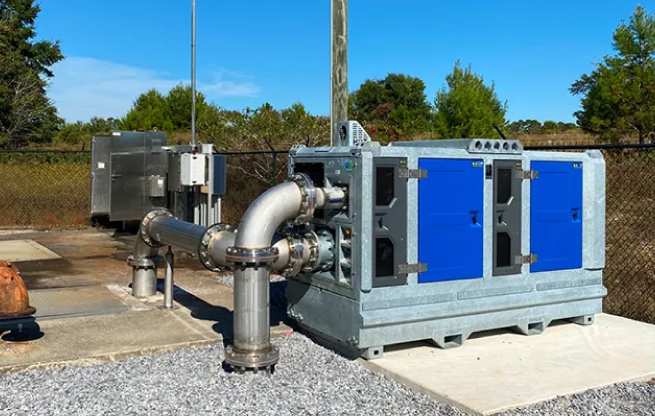

BA180E-D328 pump on site
