Tapflo are the exclusive UK distributor for BBA’s B-series

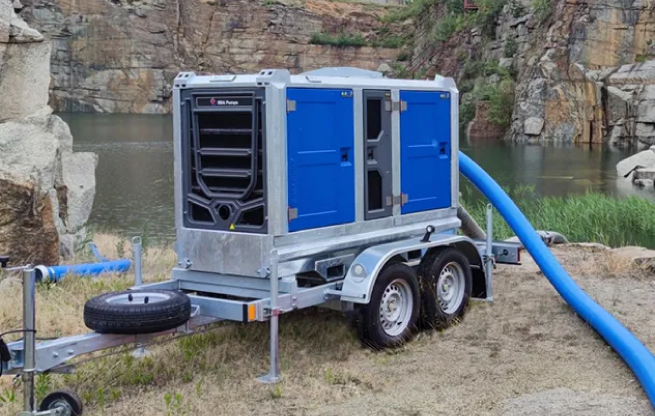

Our BA150E D285 Multi-Use Pump is a robust 6-inch mobile pump designed for versatile performance in managing dirty water and sewage with solids up to 80 mm. It is available in 3 configurations: Diesel-Driven, Electric, and Electric ATEX-Certified, ensuring versatility to various operational needs, from urban construction sites to hazardous environments.
Typical applications include:
| Feature | Diesel Variant | Electric Variant | Electric ATEX Variant |
|---|---|---|---|
| Discharge x Suction | 6″ x 6″ | 6″ x 6″ | 6″ x 6″ |
| Max. Flow | 500 m³/h | 430 m³/h | 430 m³/h |
| Max. Head | 38 mwc | 24 mwc | 24 mwc |
| Free Passage | 80 mm | 80 mm | 80 mm |
| Priming System | MP50 (50 m³/h) | MP50 (50 m³/h) | MP50 (50 m³/h) |
| Engine/Motor | Hatz, max. speed 1900 rpm | 22 kW – 4 pole | 22 kW – Ex II 2G Ex de IIC T4 |
| Fuel Consumption | 9 l/h | Not Applicable | Not Applicable |
| Voltage | Not Applicable | 400/690V – 50 Hz | 400/690V – 50 Hz |
| Starting Method | Variable Speed | DOL – Soft Starter – VFD | Automatic Star-Delta |
| Frame/Canopy | M10-23X (Canopy), BF10-23 (Frame) | L10-23 (Canopy), BF10-23 (Frame) | BF10-18 (Frame), L10-23 (Canopy) |
| Dimensions (L x W x H) | 2270 x 1050 x 1595 mm | 2300 x 1040 x 1400 mm | 1800 x 1040 x 1400 mm |
| Dry Weight | 1675 kg | 1500 kg | 1650 kg |
| Sound Level | 64 dB at 10 m | 64 dB at 10 m | 64 dB at 10 m |
