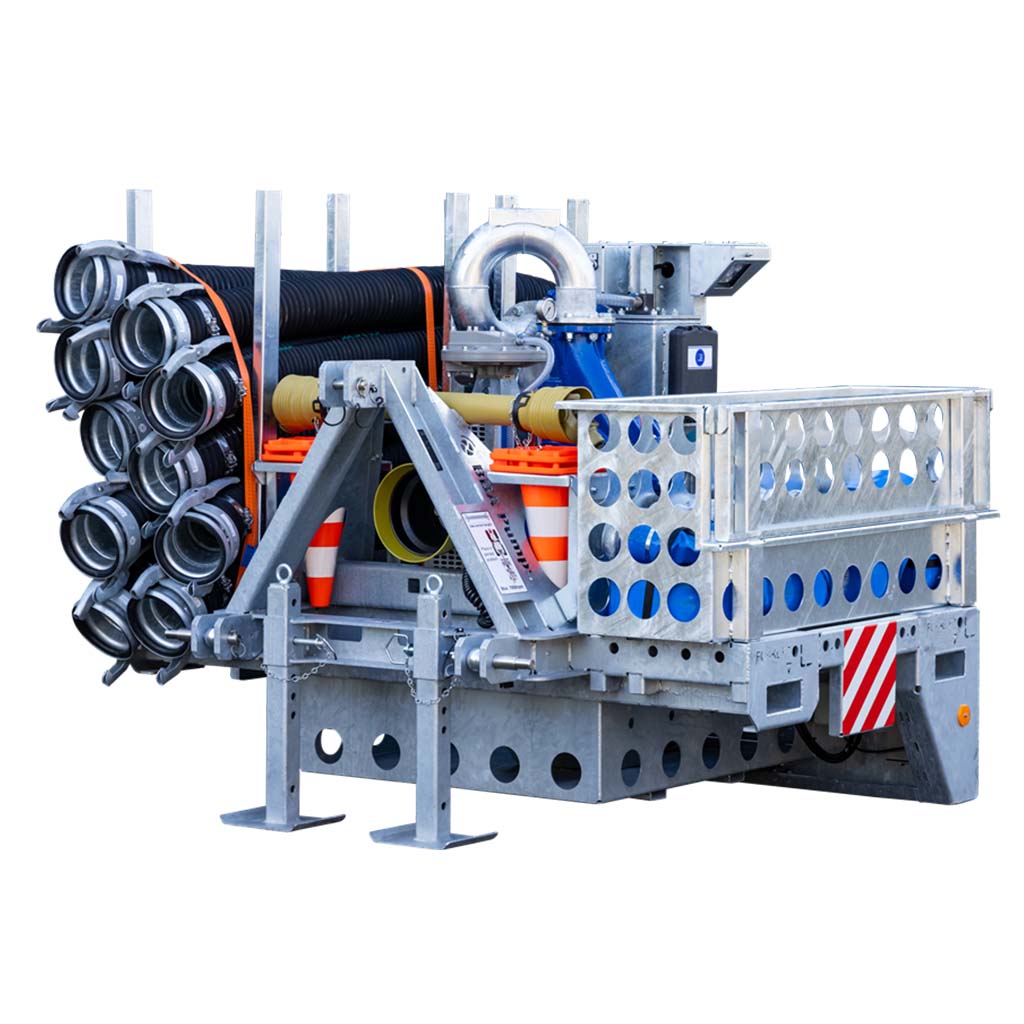

BA110L D444 Tractor Driven BBA Pumps Tractor Driven Pump With Storage System

4 inch

80mm Solids

PTO Tractor Driven

BBA BA110L D444 Multi-Use Pump

Tapflo are the exclusive UK distributor for BBA’s B-series.

Our BA110L D444 Multi-Use Pump is a 4-inch PTO tractor-driven pump designed for emergency applications requiring high capacity and efficiency. Featuring a robust frame and vacuum-assisted priming system, it delivers reliable performance when pumping dirty water.

Built for reliability in emergency situations, the BA110L D444 provides quick suction with its automatic priming system and high-efficiency centrifugal pump. Its compact tractor frame ensures easy field deployment and minimal storage requirements, with an enclosed impeller and adjustable wear plate supporting an 80 mm free passage for dirty water.

Typical Applications include:

  • Emergency response
  • Dirty water pumping
  • Dewatering

Specifications

Downloads

Features

Specifications

Spec Value
Discharge x Suction 4″ x 6″
Max. Flow 400 m³/h
Max. Head 32 mwc (3.2 Bar)
Free Passage 80 mm
Priming System MP50 (50 m³/h)
Max. Speed 1000 rpm
Dimensions 2330 x 2090 x 1700 mm
Dry Weight 1400 kg
Required PTO Power 40 kW
See below to download our full specifications.

Downloads

BBA BA110L D444 Data Sheet

Key Features

  • Pump Capacity: Up to 400 m³/h flow with a max head of 32 mwc (3.2 Bar)
  • Robust Frame: Hot-dip galvanised with forklift pockets, working lights, safety cones, rear lighting, normalised lifting hitch, and 2 jack stands
  • Ease of Maintenance: Large inspection covers, adjustable wear plate, and suction/pressure gauges as standard
  • Environmentally Friendly: Low operating costs and corrosion-resistant materials
  • Reliable Priming: Fully automatic MP50 priming system (50 m³/h) for quick priming and re-priming, even from dry conditions
  • Built to Last: Enclosed impeller with adjustable wear plate, best-in-class efficiency and NPSH curve, heavy-duty bearing frame with extra oil chamber for dry running

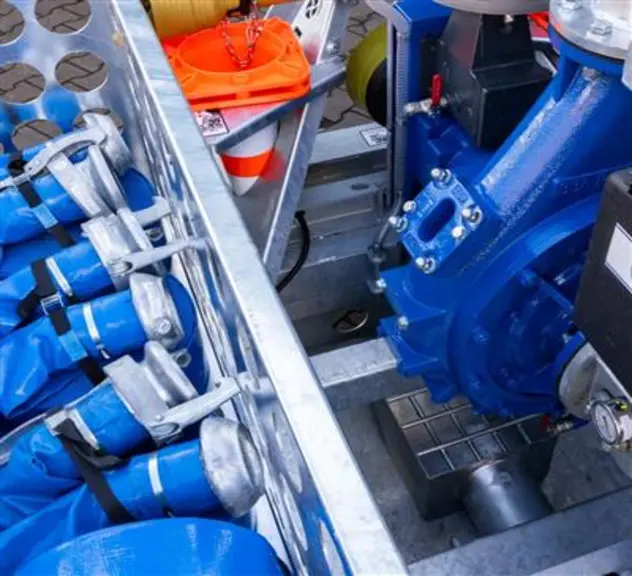

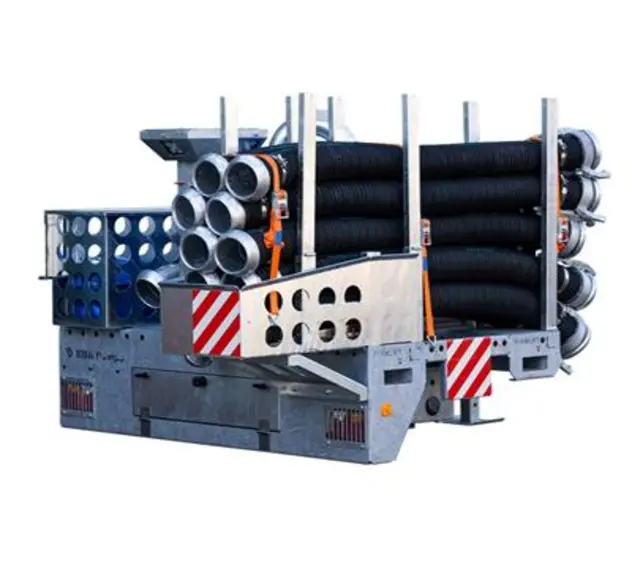

  • Hose Racks: Optional hose racks for the tractor frame: bars for suction hoses on one side, a rack for layflat discharge hoses on the other
  • Lockable Bin for Accessories: A lockable bin fitted under the frame for storing accessories such as a suction strainer and bends
