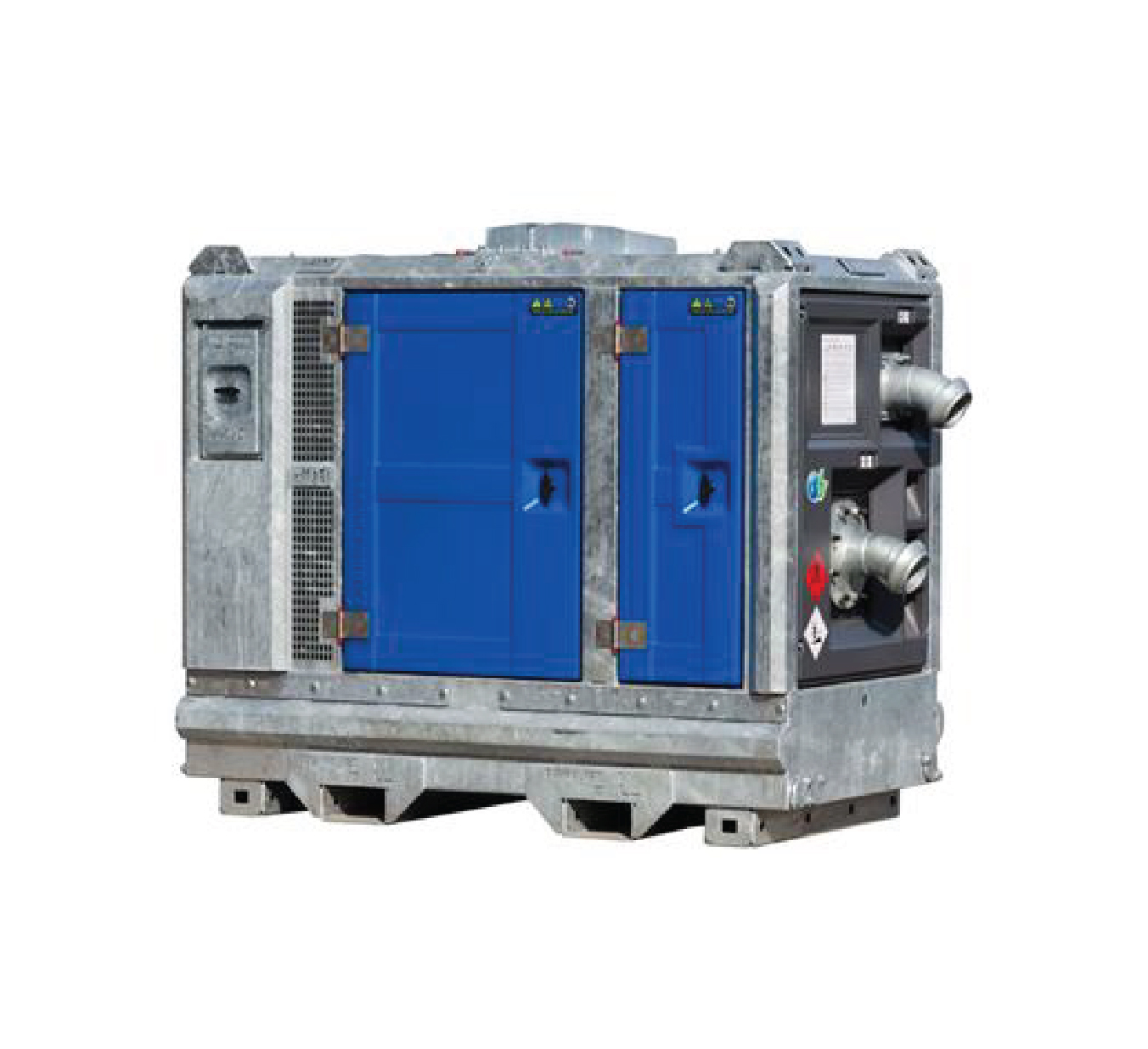

Available from stock BA100K-D193 Sewage Pump Diesel

Diesel Driven

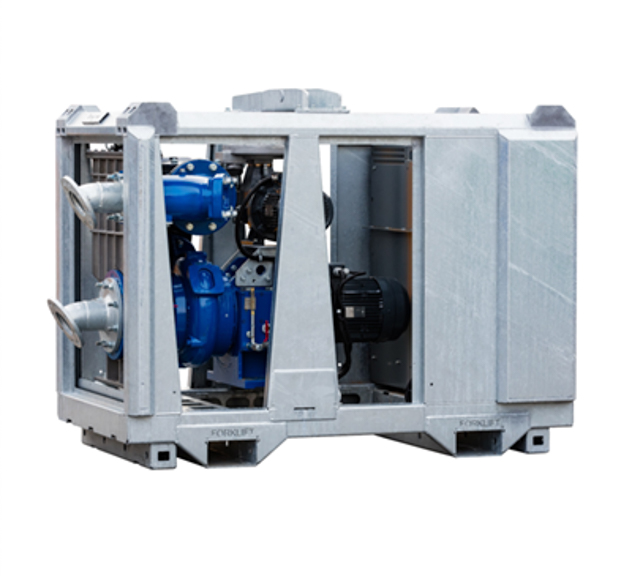

Available from stock BA100K-D193 Sewage Pump Electric

Electric

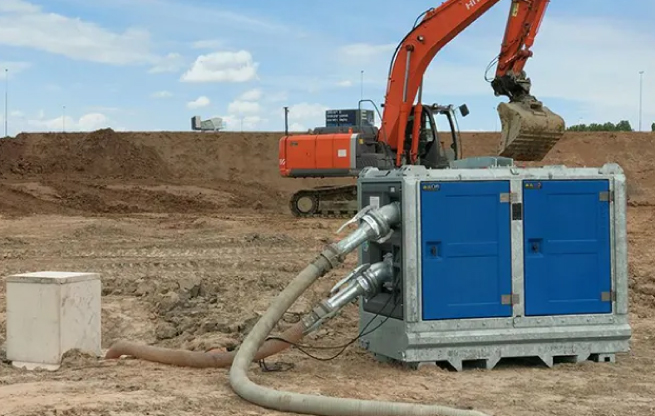

Available from stock BA100K D193 sewage Diesel Pump on site

On Site

BA100K-D193 Sewage Pump Diesel BA100K-D193 Sewage Pump Electric BA100K D193 sewage Diesel Pump on site

4 inch

82mm Solids

Sewage

BBA BA100k D193 Sewage Pump

Tapflo are the exclusive UK distributor for BBA’s B-series

Our BA100K D193 Sewage Pump is a powerful 4-inch mobile pump available in three distinct variants: diesel-driven, electric-driven, and ATEX-certified. Designed to handle Sewage and Wastewater with solids up to 82 mm, this pump offers flexibility and high performance across different operational environments.

With a robust centrifugal design and advanced vacuum-assisted priming system, the BA100K D193 ensures reliable operation in various applications, including Sewer Bypassing and Industrial Waste Management.

  • Diesel Version: Equipped with a Hatz single-cylinder engine, low fuel consumption (1.75 l/h max), and a 1500-hour service interval.
  • Electric Version: Features a 55 kW motor with options for Direct-On-Line (DOL), soft starter, or Variable Frequency Drive (VFD).
  • ATEX Version: Fully ATEX certified for Zones 1 and 2 with components compliant to EX II 2G IIB T4 Gb standards.

Typical applications include:

  • Sewage
  • Sewage Bypassing
  • Wastewater
  • Industrial Waste Management

Specifications

Downloads

Features

Specifications

Discharge x Suction  4″ x 4″
Max Flow 190m³/hr
Max Head 22 m.w.c for diesel & electric, 12 m.w.c for ATEX
Free Passage 82 mm (Diesel & Electric Versions), 80 mm (ATEX Version)
Priming System MP50 (50 m³/h)
Engine/Motor Diesel Version: Hatz single-cylinder, max. speed 1700 rpm

Electric Version: 55 kW – 2 pole, voltage 400/690V – 50 Hz

ATEX Version: 7.5 kW – Ex II 2G Ex de IIC T4
Fuel Consumption Diesel Version: Max. 1.75 l/h, BEP 1.8 l/h

Electric Version: N/A

ATEX Version: Not applicable
Service Interval (diesel) 1500 hours
Canopy/Frame Diesel & Electric Versions: M10-18 (Canopy), BF10-23 (Frame)

ATEX Version: M10-18 (Canopy), BF10-18 (Frame)
Sound Level 50 dB at 10m
Dimensions (L x W x H) 1800 x 1050 x 1596 mm (Diesel & Electric Versions), 1800 x 1040 x 1400 mm (ATEX Version)
Dry Weight 1450 kg (Diesel & Electric Versions), 1400 kg (ATEX Version)
See below to download our full specifications.

Downloads

BA100k D193 Data Sheet

Key Features

  • High Solids Handling: Pumps sewage with solids up to 82 mm, ensuring effective handling of very dirty water
  • Exceptional Performance: Best-in-class pump efficiency and excellent NPSH curve for superior operational performance
  • Sound Attenuated Canopy: Available with a robust and quiet canopy (50 dB at 10 m) for safe and noise-controlled operation
  • Durable Construction: Standard in 316 stainless steel with a cast iron option for the ATEX variant, ensuring durability and corrosion resistance
  • Versatile Setup: Choose between an open frame or a sound-attenuated canopy; includes options for additional components like pump trailers and telematics
  • User Safety: All variants include comprehensive safety features and user manuals; ATEX version includes a 3.1 certificate upon request
  • Warranty: 4-year limited warranty for peace of mind
BA100K D193
