B60-220 Jetting Pump

Tapflo are the exclusive UK distributor for BBA’s B-series

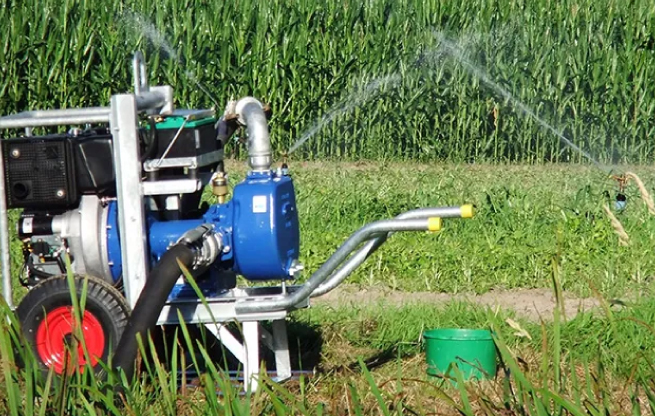

Our B60-220 Jetting Pump is a robust 2-inch self-priming Centrifugal Pump powered by a reliable single-cylinder Hatz diesel engine.

Engineered for high performance, this pump is designed to handle slightly contaminated water with solids up to 14 mm. With a maximum flow rate of 46 m³/h and a head of up to 53 mwc, the B60-220 Jetting Pump is ideal for various demanding applications.

Mounted on a galvanised wheelbarrow frame, it is highly portable and suitable for use in irrigation, construction, emergency firefighting, jetting wellpoint filters, and deck washing.

  • Irrigation
  • Emergency firefighting
  • Construction
  • Jetting wellpoint filters
  • Deck washing

Specifications

Downloads

Features

Specifications

Discharge x Suction 2″ x 2″
Max. Flow 46 m³/h
Max. Head 53 mwc
Free Passage  14mm
Material Cast iron (other options available on request)
Engine Hatz, single-cylinder diesel engine
Max Speed 3,000 rpm
Starting Method Electric start
Frame Galvanised wheelbarrow frame
Dry Weight 300kg
See below to download full specifications

Downloads

B60-220 Jetting Pump Specifications

Key Features

  • High Solids Handling Capacity: Capable of pumping water with solids up to 14 mm, suitable for slightly contaminated fluids
  • High-Performance Diesel Engine: Powered by a single-cylinder Hatz engine, delivering reliable performance with a maximum speed of 3000 rpm
  • Portability: Mounted on a galvanised wheelbarrow frame, making it easy to move and deploy in various locations
  • Material Flexibility: Standard cast iron construction with the option to request other materials for specific applications
  • Advanced Self-Priming System: Equipped with a non-return valve in the suction port, eliminating the need for a foot valve and ensuring efficient priming
  • Ease of Maintenance: Features an open impeller with a changeable wear plate, reducing maintenance time and costs
  • Electric Start: Facilitates easy operation with an electric start system, ensuring quick and reliable engine ignition
