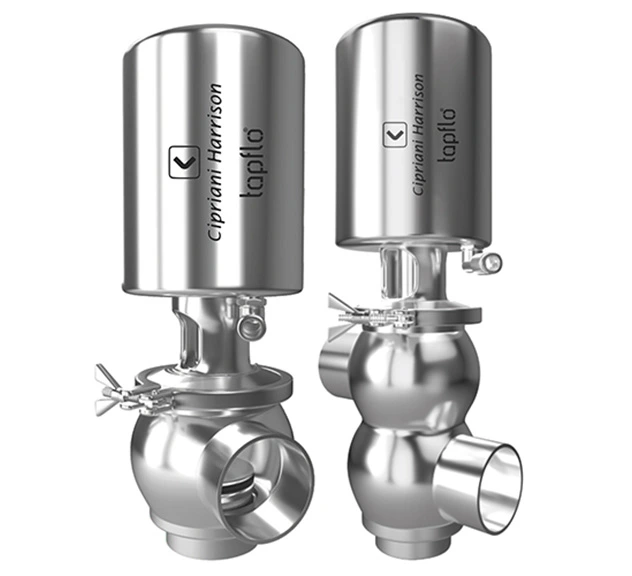

Our Single Seat Valve, also known as the Shut-Off and Divert Valve, is designed for optimal hygienic flow management. Manufactured in high-quality Stainless Steel 304L or 316L, and based on the trusted Cipriani Harrison design, this versatile valve facilitates seamless shut-off or diversion between different process pipelines. Thanks to its one-piece body construction and maintenance-free actuator, the valve offers reduced product entrapment, minimal wastage, and simple maintenance, a reliable solution for critical processing needs.
Design & Operation
Seal Technology
Configurations & End Connections
Technical Specifications
Options
- One-Piece Body Construction: Forged from solid bar for superior hygiene, minimising joints and potential contamination points
- Compact and Lightweight: Thanks to the integrated design, it offers easy handling and installation without compromising strength
- Minimal Product Trap: Special internal design reduces product hold-up, dead legs, and maximises process yield
- Increased Stroke Travel: Enables the smooth passage of viscous liquids and fluids with suspended solids
- Modular Design: Easily upgrade from manual to automated operation, or switch to a high-pressure actuator without replacing the whole valve
Maintenance is simplified with clamp connections between the valve body, yoke, and actuator, ensuring quick assembly and disassembly.
The Single Seat Valve is equipped with:
- PTFE and FDA EPDM seals as standard
- Comprehensive seal options are available to suit various chemical, temperature, and pressure requirements.
- Special aseptic configurations feature a one-piece diaphragm for hermetic sealing against atmospheric contamination.
This advanced seal technology ensures extended service life even in challenging process environments.
Tapflo UK’s Single Seat Valve range is highly versatile with multiple configurations to suit your process needs:
Standard and Special Configurations:
- Shut-Off Valve
- Divert Valve
- Long Stroke Valve – For viscous media like honey and chocolate
- Tangential Outlet Valve – For horizontal installations to prevent product trapping
- Angle Valve – For gentle handling of viscous or particulate media
- Tank Bottom Valve – Designed for optimal drainage inside or outside the tank
- Aseptic Single Seat Valve – For aseptic process environments
- Overflow Valve – Pressure relief option to protect the system
- Control Valve – Fine control of flow rates
- High-Pressure Valve – Rated up to 25 bar
- Double Seal (SS-DS) Valve – For safe media separation in automated systems
- Air Assisted Valve – Additional opening force for critical applications
- Manual Single Seat Valve – Simple quarter-turn operation
- Fractional Size Valves – Available in ½” and ¾” sizes for small-scale installations
End Connections:
- Sanitary Clamp Ends
- Butt-Weld Ends
- Available in ISO, DIN, RJT, IDF standards
| Feature |
Specification |
| Material |
Stainless Steel 304L or 316L |
| Surface Finish |
Highly polished, self-draining |
| End Connections |
Sanitary Clamp, Butt Weld |
| Sizes |
1″ – 4″ (fractional sizes ½” and ¾” also available) |
| Pressure Rating |
Standard and High Pressure (up to 25 Bar) |
| Seals |
PTFE and FDA EPDM as standard |
| Certifications |
3A, FDA |
| Actuator |
Maintenance-free sealed actuator |
- Stroke Limiter
- Oil Dampening Cylinder
- Steam Barrier for enhanced aseptic protection
- Electronic Control Tops for communication and automation (including 24V DC Direct I/O and AS-i protocol options)
