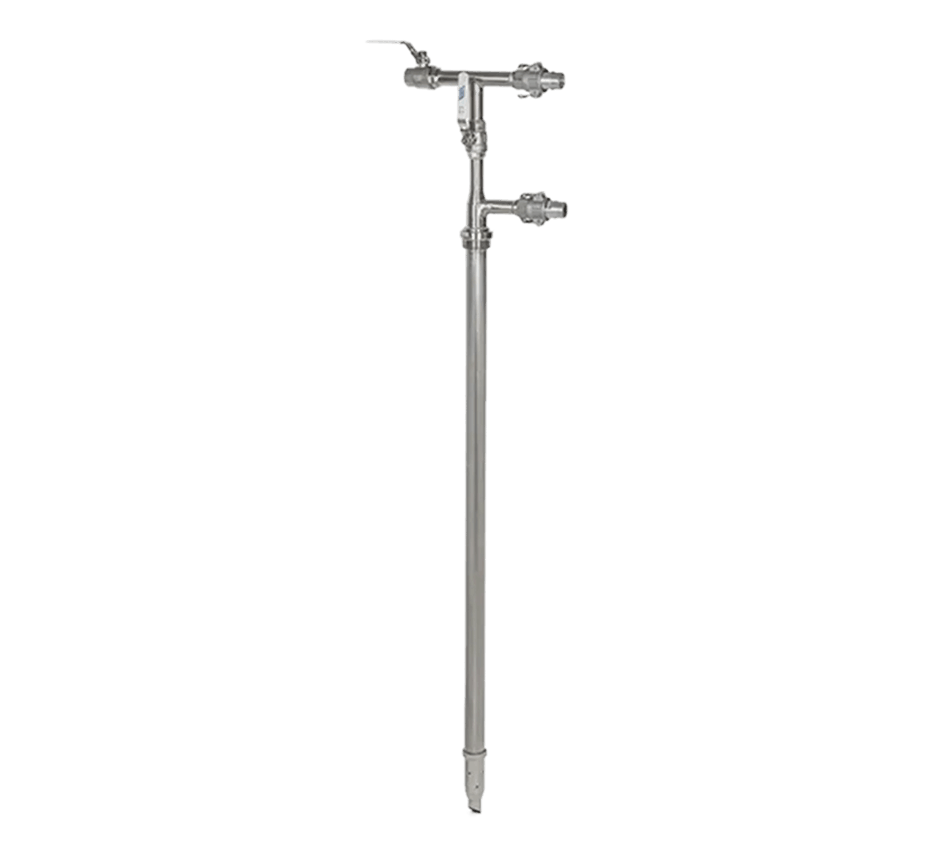

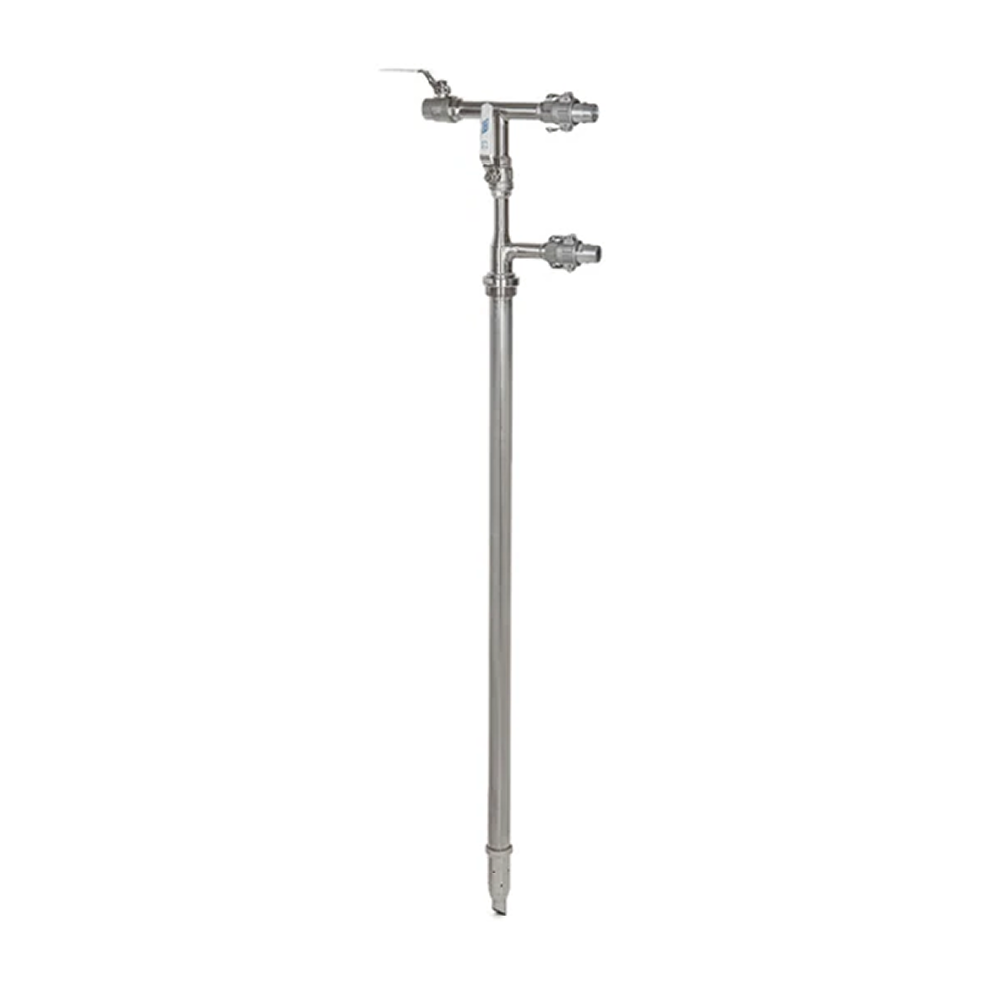

Pneumatic Mixing & Emptying System - Pneumixer

Download Manual


The Pneumix was predominantly developed for the paint and ink industry where most raw materials in drums or containers settle out over time and need to be mixed or blended prior to use. This usually means rolling, shaking or pumping to a mixing vessel; that adds time, waste, mess and expense.

Increased productivity and reduced waste with Pneumatic Mixing & Emptying System - Pneumix

The Pneumix utilises the container the product arrives in to mix and dispense and simply fits securely in the vessels fill hole, increasing productivity by reducing waste and further product handling.

  1. Eliminates problems with conventional mixing

  2. No need for pumping to mixing vessel

  3. No paddles or rotating blades

  4. Fully controllable pneumatic operation and control

  5. No moving parts utilises pump power to mix & dispense

  6. Variable agitation

  7. No shear

  8. No air entrainment

  9. Reduced environmental exposure

  10. Closed vessel mixing system

  11. Increased product life and performance

  12. Suits all containers up to 1000 litre IBC

  13. No modification to vessel

  14. Available in wide range of materials

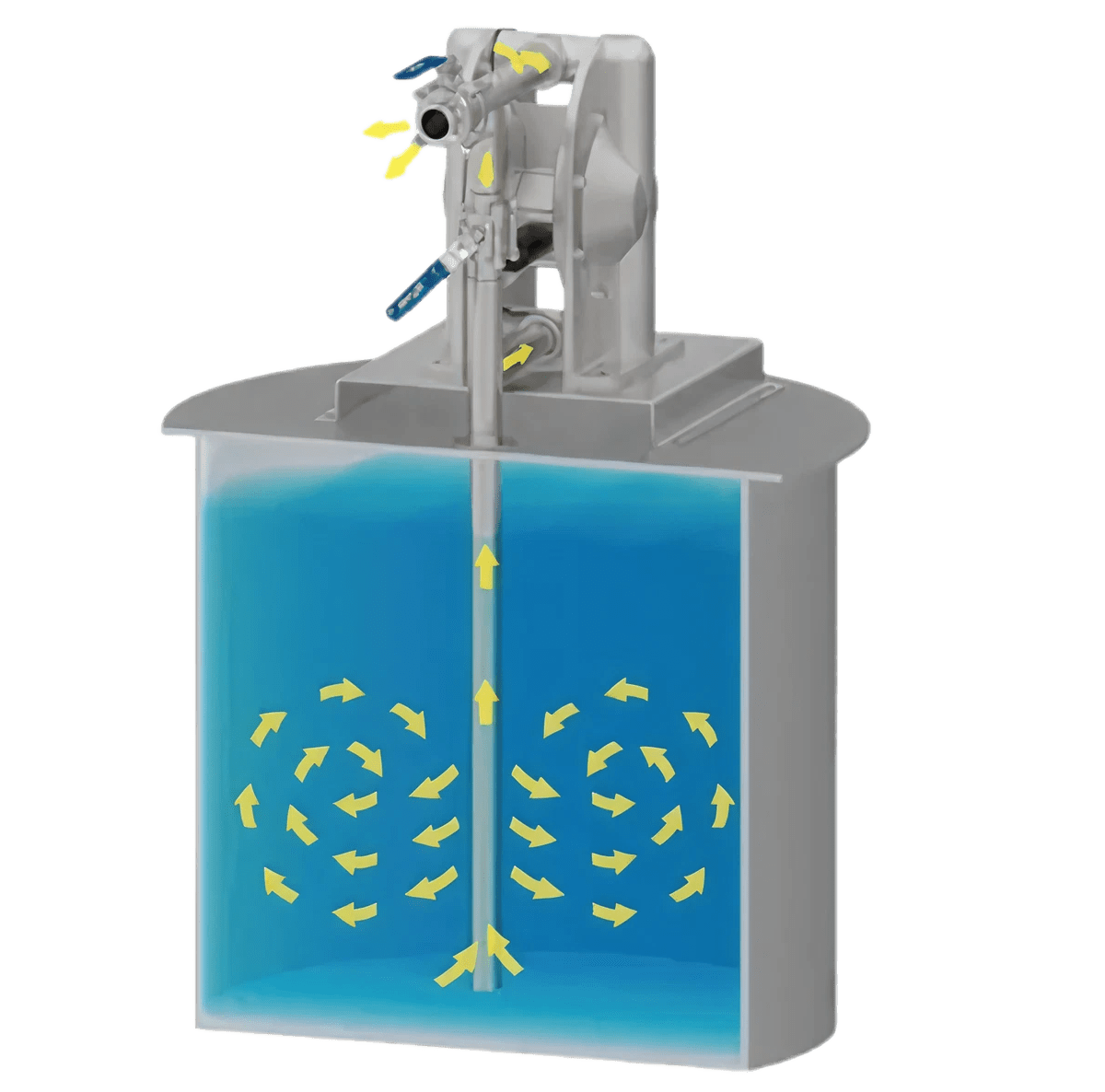

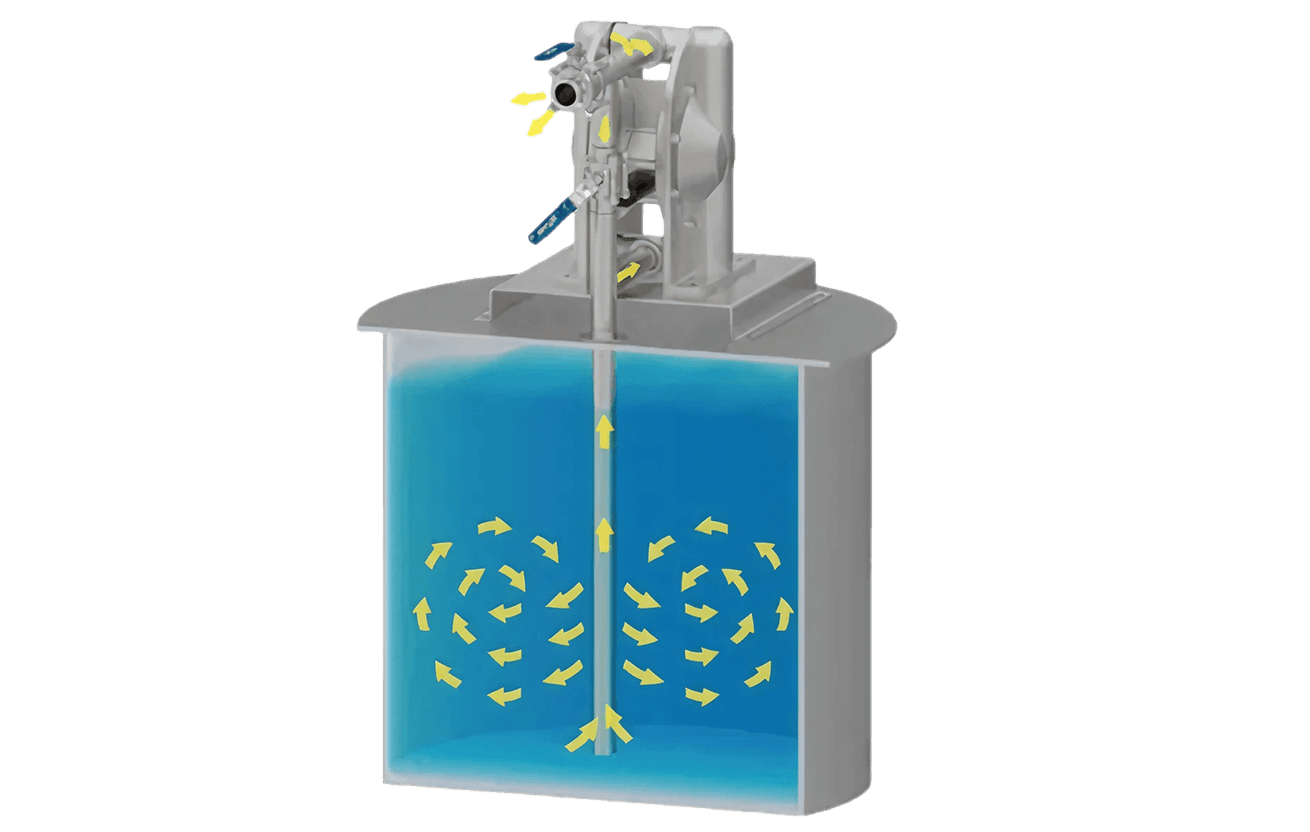

Pneumatic Mixing & Emptying System Operating Principle

Pneumixer operating principle

Transfer Mode (Image 1) The discharge valve (1) is opened and the recirculation (2) valve is partially opened, to both mix and transfer the product out of the vessel.

Mixing Mode (Image 2)The discharge valve (1) is closed and the recirculation (2) valve is opened, to allow the product to circulate in the vessel.

Stopping the pump can be achieved in a couple of ways:

  1. - By closing of the discharge valve and the recirculation valve the pressure from the system will stop the pump automatically. The pump restarts easily when the valve is opened again.

NOTE: When using this method keep in mind that air must be supplied to the pump. This is essential to keep the diaphragms in balance, which is what protects them from premature failure.

  1. - Cutting off the air supply. The discharge valve needs to be open in this instance.

We can also supply the pump and Pneumix with any of our Pneumatic & Electronic Protection Systems to provide even further protection and functionality!

Pneumatic Mixing & Emptying System - Pneumixer Features and Benefits

  1. Pneumatic mixing system: The Pneumix offers enclosed product handling, reducing worker or environmental exposure, spillage and contamination. Hazardous, sensitive or volatile products are securely protected within their container. All contributing towards a clean, safe working environment.

  2. Batch and mix: This system allows the product to be mixed and batched when it is needed, reducing time, increasing product life and minimising waste.

  3. Variable agitation: Means the mixing action can be matched to the specific product or application

  4. Safety: Air operated control and operation means no electrics are necessary. The SS version is also ATEX Rated.

  5. Materials and sizes: The Pneumixers are available in Stainless Steel AISI 316 & PP (polypropylene) as standard. Other materials upon request.

Available for all Tapflo pump sizes 1/2" up to 2". When being used in conjunction with our extensive range of Air Operated Diaphragm Pumps, we also recommend utilising our Air Treatment System to provide the best control and functionality of the system.

Pneumixer coding diagram
