Transform unlimited ingredients into finished products at speed, with precision and full automation. Achieve complete recipe control for both industrial and hygienic production, using flexible batch or continuous flow.

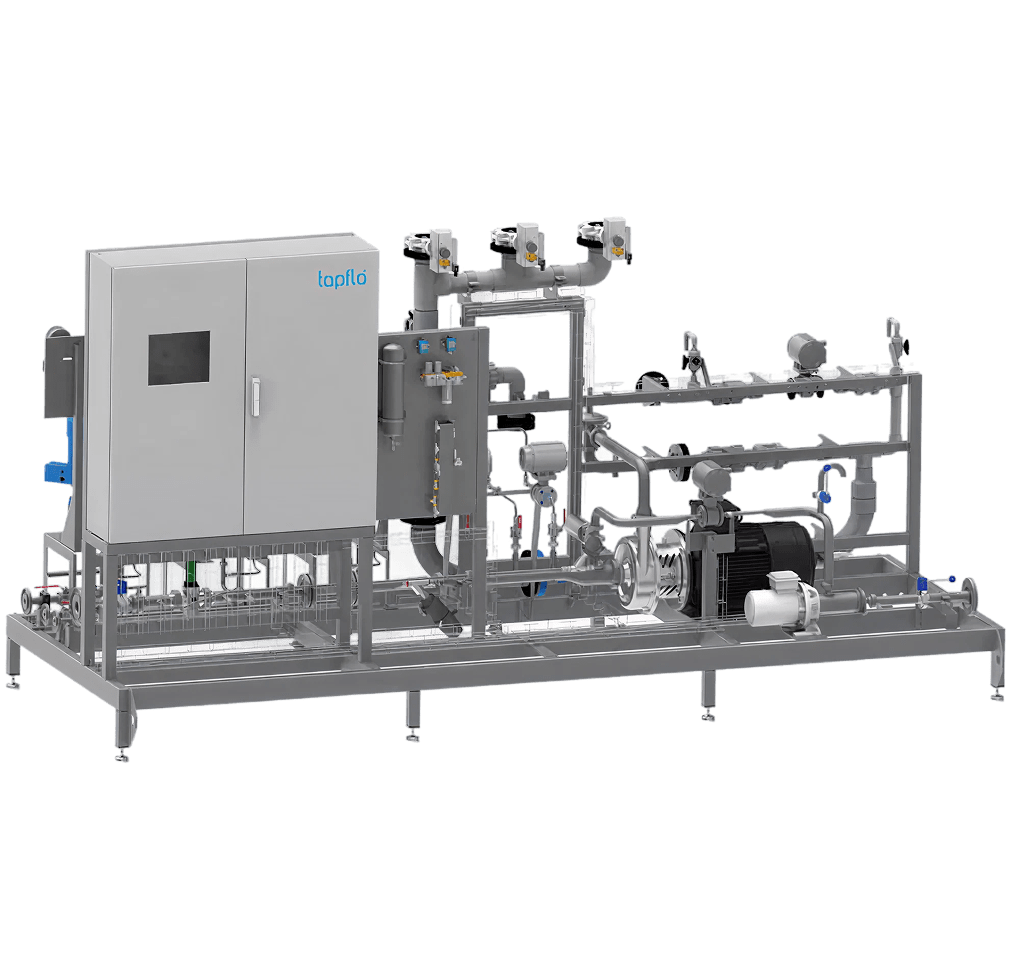

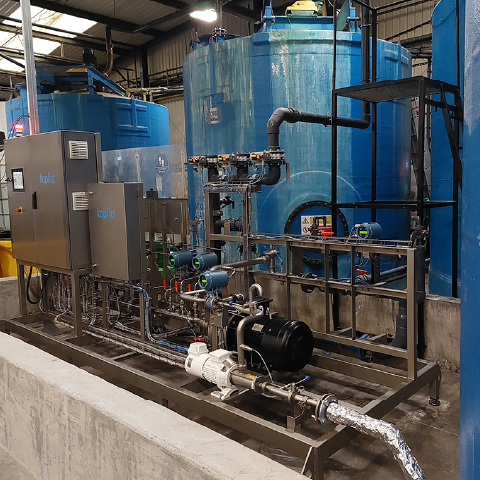

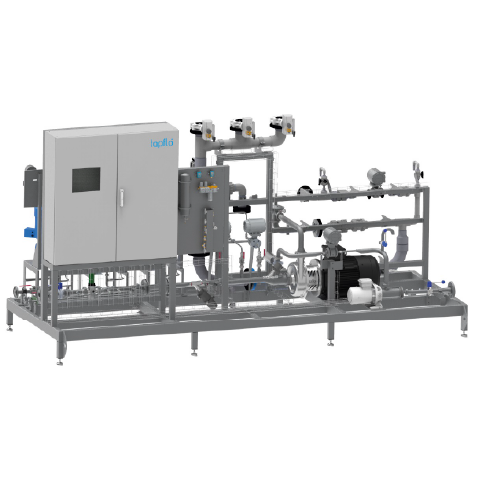

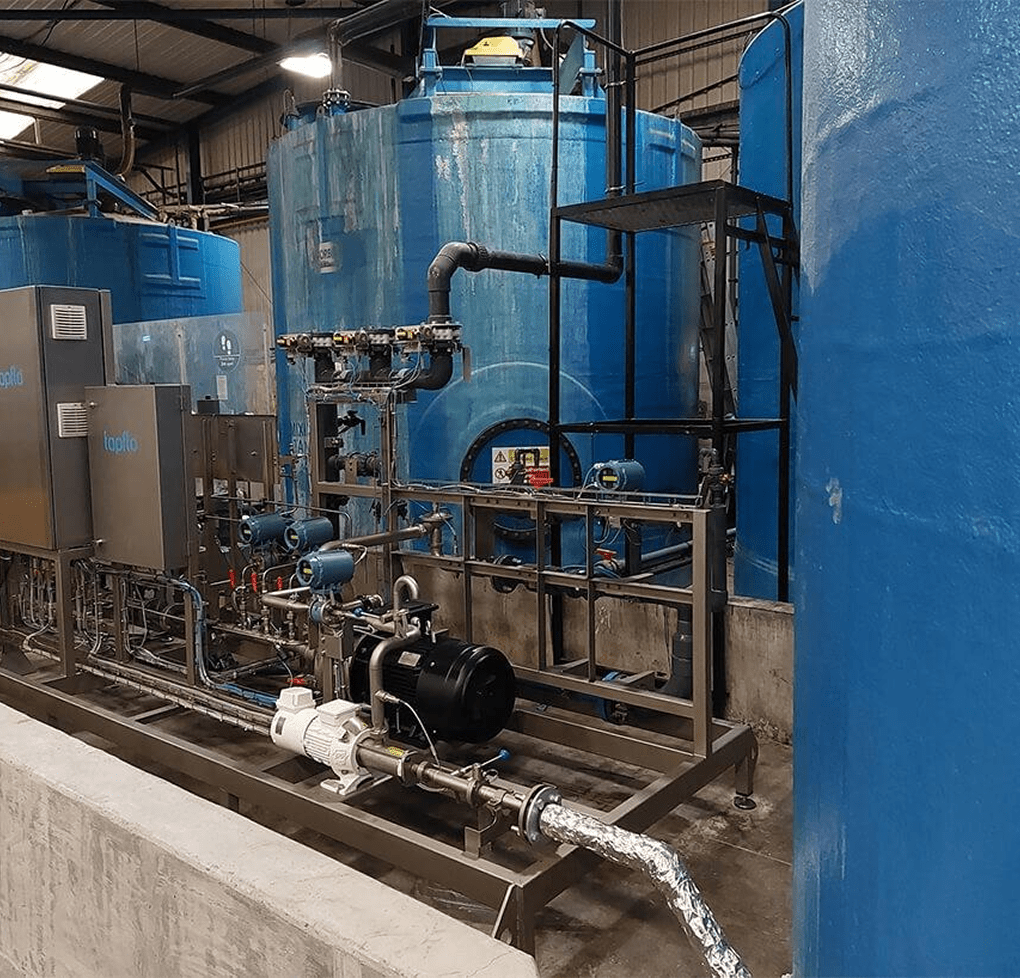

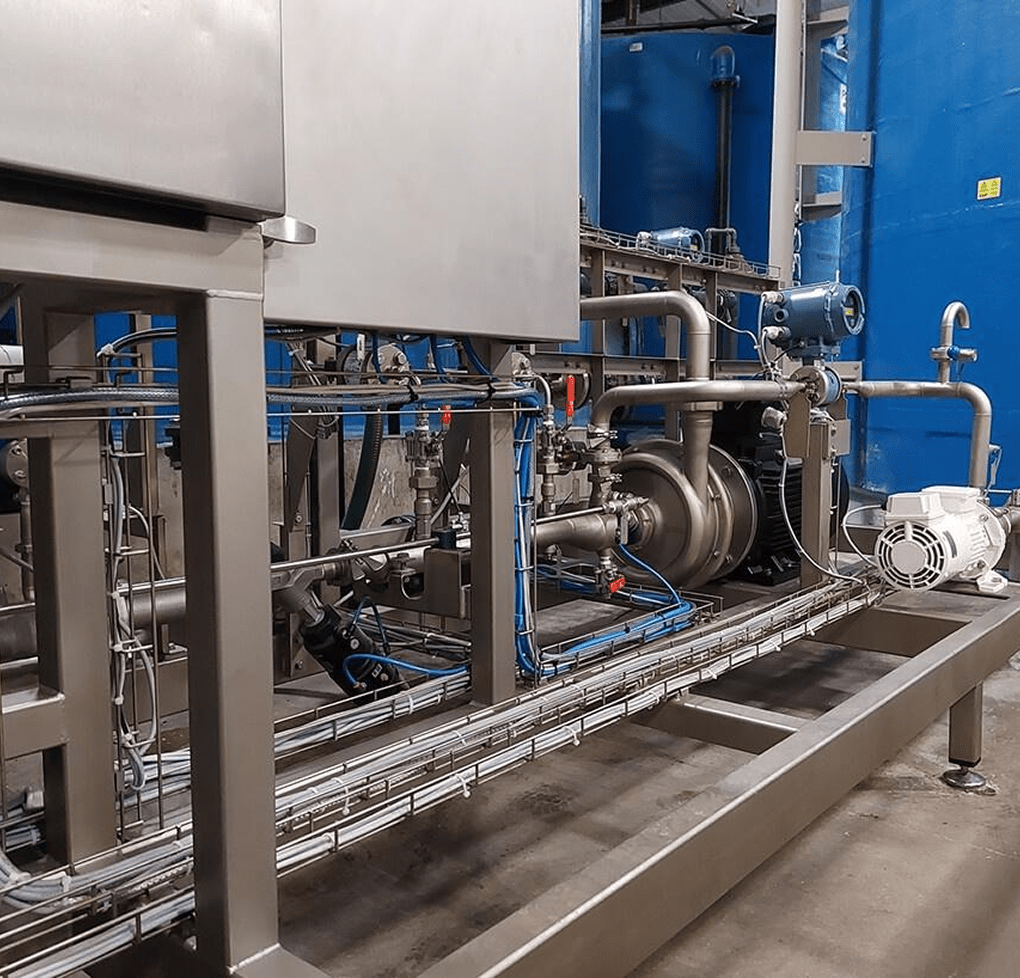

Our Liquid Blending System is a flexible and fully automated system designed to dose, mix, and dilute multi-ingredient liquids with high accuracy and repeatability. Ingredients are drawn from multiple container types, including IBCs, drums, storage tanks, or custom vessels, and dosed into the blend at precise, predefined ratios.
Our Liquid Blending System allows an unlimited number of separate ingredients per recipe, supports heated or viscous ingredients (e.g. 70% SLES) and can auto-fill final product tanks in sequence.
Designed for batch or continuous operation, this system streamlines formulation by replacing manual processes with programmable, recipe-driven control. Whether producing bleach, shampoo, or a flavoured syrup concentrate, our Liquid Blending System ensures precision, traceability, and reduced operational cost, all in a compact yet scalable package.
Our Liquid Blending System can be used for many applications, most commonly:
Don’t see your application listed? Get in touch with the team, and we can spec a system to meet your exact requirements.
Pre-defined recipes ensure accurate dosing, reduce waste, and deliver consistent product quality, while high-viscosity liquids like SLES are handled with precise dilution and ratio control.
Whether in fixed batches or continuous flow, the system adapts to your process, streamlining production planning and enabling seamless scale-up as demand grows.
Automatically switch between supply and storage tanks, monitor levels with refill alerts, and control product distribution, increasing flexibility and reducing downtime.

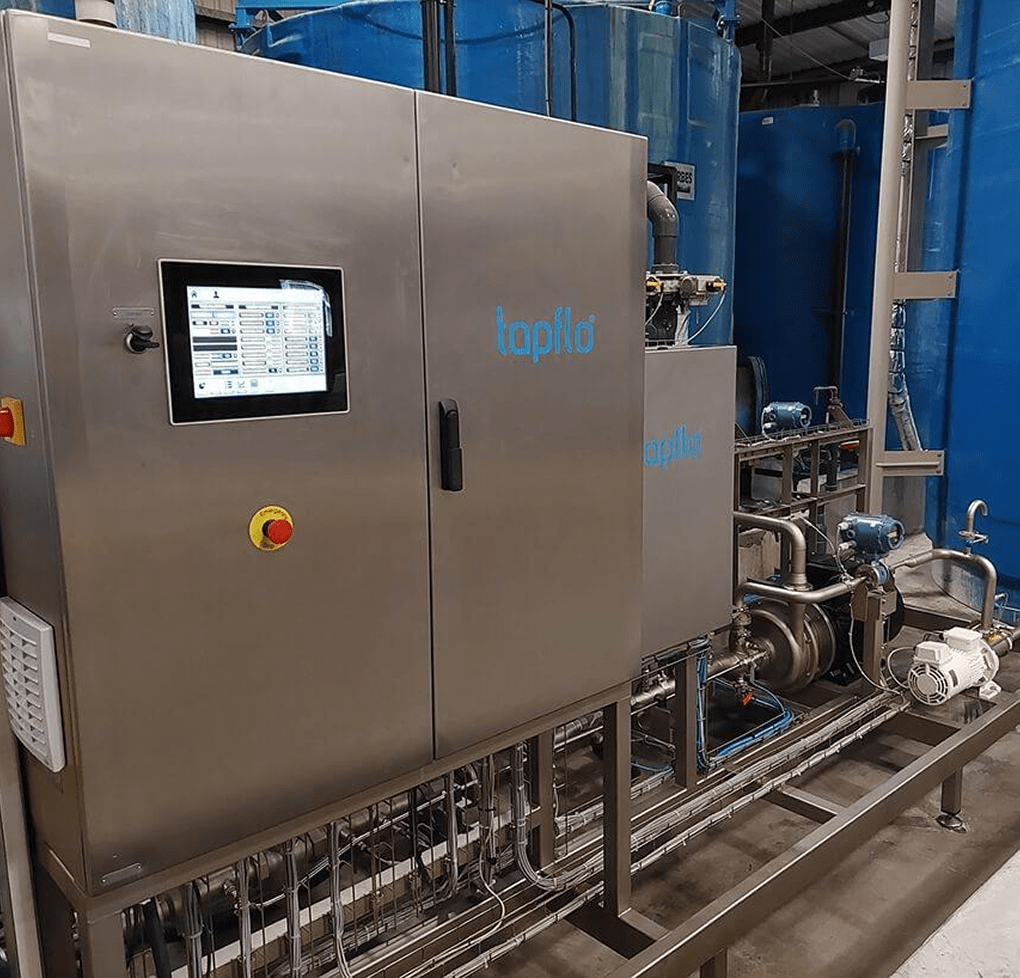

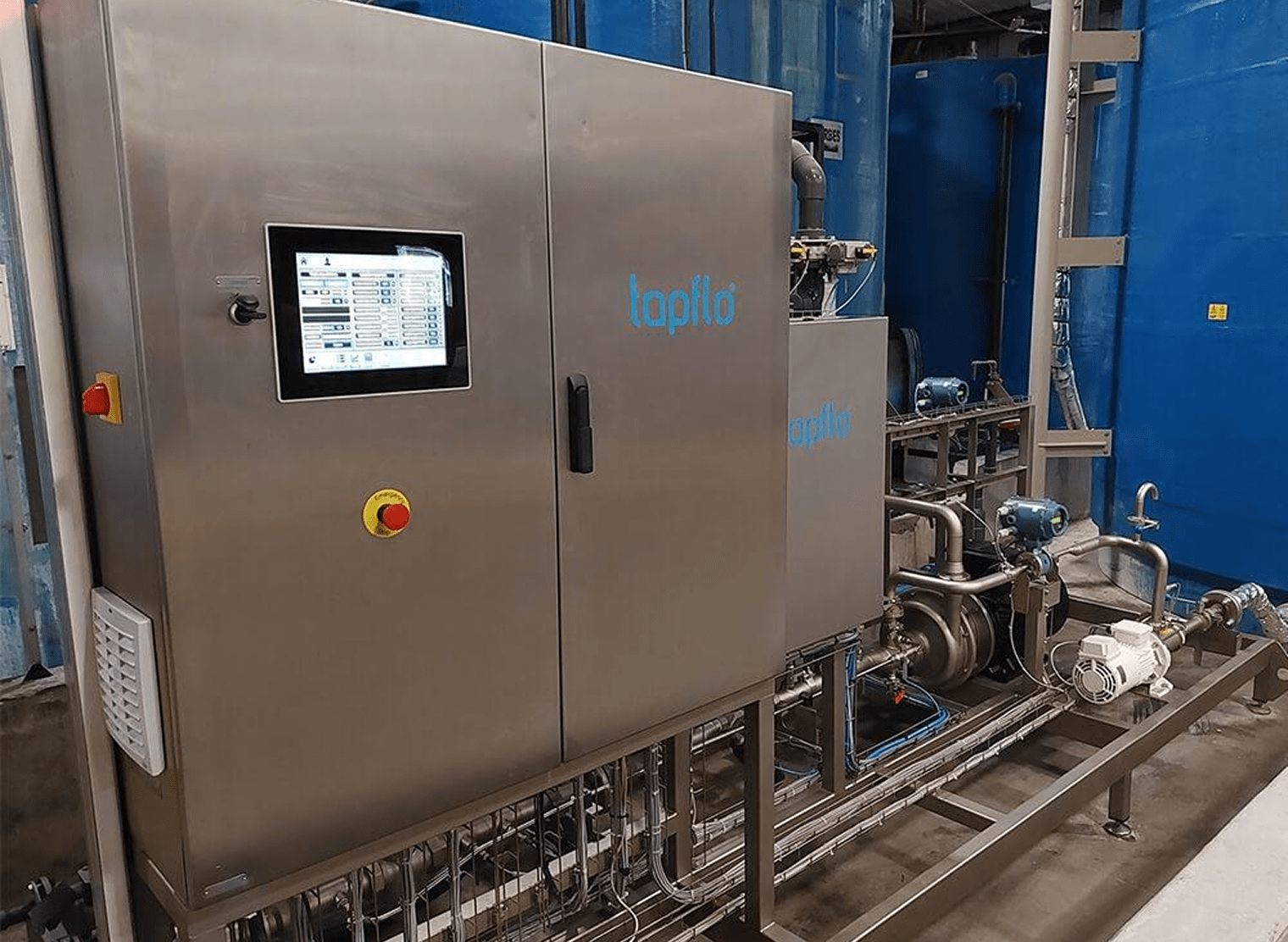

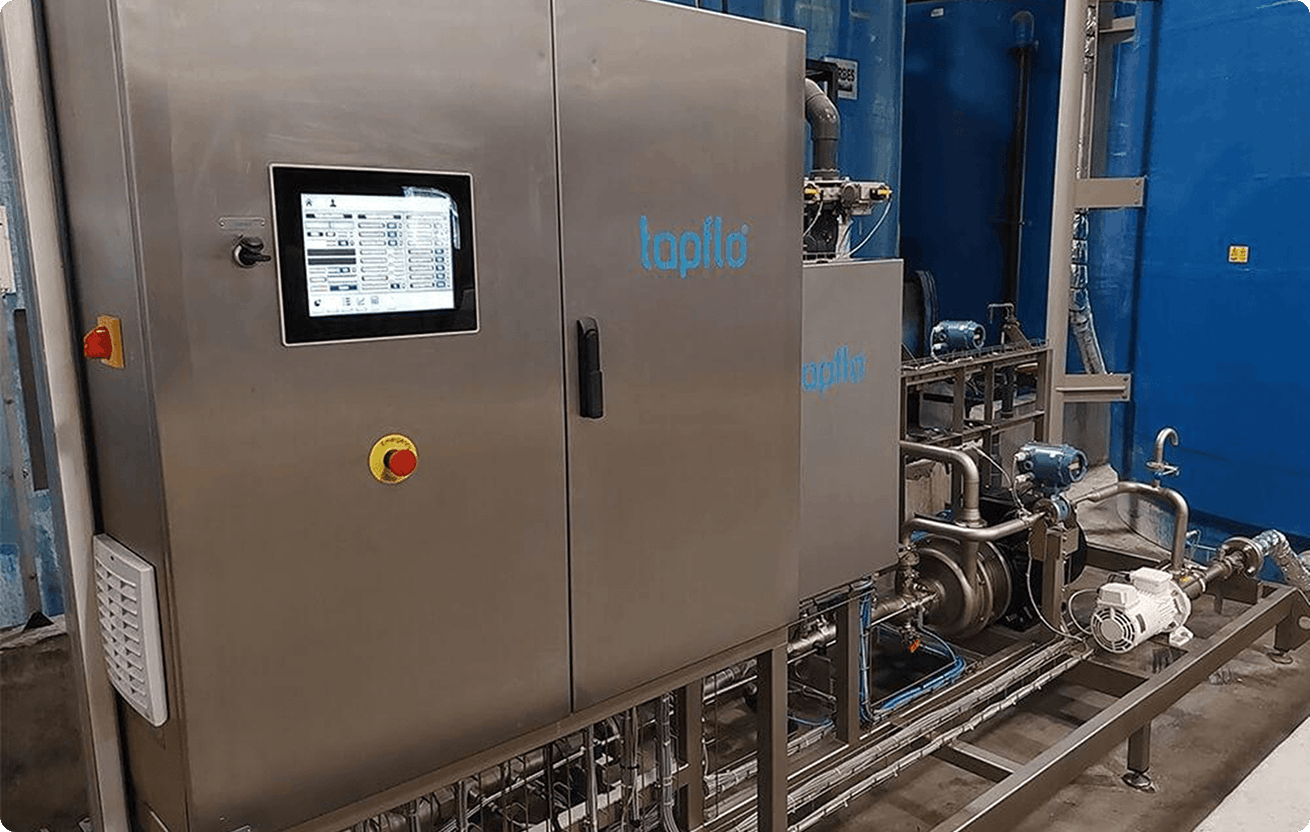

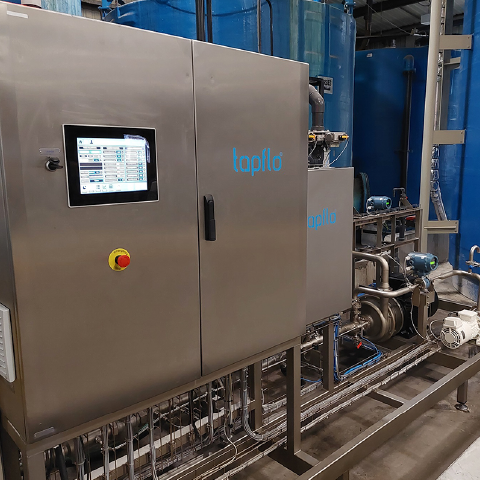

Monitor flows, pressures, levels, & dosing with full batch traceability. Control recipes and diagnostics via HMI, and access performance monitoring from anywhere.
| Ingredients per Recipe | Unlimited, depending on applicaton & recipe requirements |
| Flow Rate | Up to 30,000l/hr |
| Operation Modes | Batch or continuous |
| Container Options | IBCs, drums, tanks, heated/custom vessels |
| Control System | PLC & HMI with remote access |
| Trace Heating & Insulation | Available for viscous liquids |
| Add-ons | Hygienic fittings, CIP, FDA approved materials, ATEX available |
Our case study on the Liquid Blending System for bleach covers the bespoke elements of the system and how we adapted it to the customer’s exact requirements, including:
