Shell & Coil Heat Exchangers

• AD Variant: High-performance heat exchanger suitable for demanding applications, including heating installations and heating substations. The JAD X version is designed for installations with high requirements.
• HAD Variant: Fully equipped installation-ready unit, featuring horizontal connections, pre-installed insulation, and a mount for simplified installation.
• S Variant: Compact heat exchanger designed for low-power systems where space is limited. Available in standard and X-shaped connection versions.
• H Variant: Economic solution for small CH and DHW systems, designed for situations where plate exchangers are unsuitable.
• RAD Variant: Optimised for refrigerant applications, especially in ground source heat pumps, with high thermal efficiency and compatibility with modern A2L refrigerants.

• Space-saving design: Compact dimensions and the possibility of vertical installation reduce the required installation space.
• High efficiency: Corrugated coil tubes increase flow turbulence, intensifying heat exchange for a higher heat transfer coefficient.
• Low operating costs: X-shaped design of the connections and corrugated coil tubes improves resistance to deposits, reducing maintenance needs.
• Broad application range: Handles a wide range of temperatures, pressures, flow speeds, and media types.
• Durability and compliance: Manufactured according to PED and ASME standards, ensuring safety and long-term performance.
• Optimised refrigerant use: RAD variant is compatible with modern refrigerants like R32, R452B, R454B, and R290 (propane), ensuring high efficiency in heat pump applications.
• Corrosion resistance: Constructed from high-alloy austenitic stainless steel for long-lasting performance in aggressive environments.
• Easy installation: HAD variant comes with pre-installed insulation and a mount for quick and hassle-free setup.

• Shell: Durable outer casing ensuring pressure resistance and efficient thermal exchange.
• Coil: Corrugated or smooth tubes designed to optimise turbulence and minimise pressure drops.
• Core: Provides stability and structural integrity to the unit.
• Connections: Available in welded, threaded, flanged, or Victaulic connections for flexible installation.
• Dished heads: Used in various models for optimised flow distribution.
• Mounting components: Pre-installed in the HAD and RAD variants for simplified installation.
• Insulation (HAD variant): High-performance thermal insulation with easy-to-install fastening.
• Refrigerant-specific enhancements (RAD variant): Direct refrigerant inlet ensures even distribution and minimises maldistribution risks.

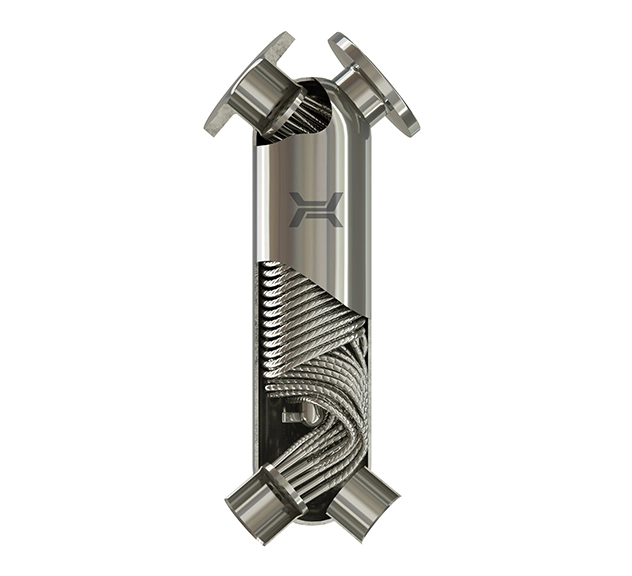

Specifications JAD Variant:

• Materials: Stainless Steel, and Carbon Steel
• Intended Media: Water, Propylene Glycol Solutions, Group 2 Fluids
• Max Temperature: 250°C
• Max Pressure: 507 PSI (35 Bar)

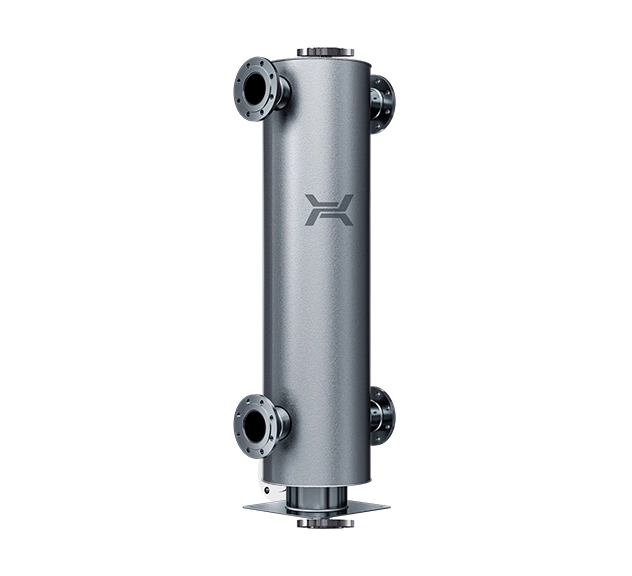

Specifications HAD Variant:

• Materials: Stainless Steel 316L and 304L
• Intended Media: Water, Steam
• Max Temperature: 250°C
• Max Pressure: 363 PSI (25 Bar)

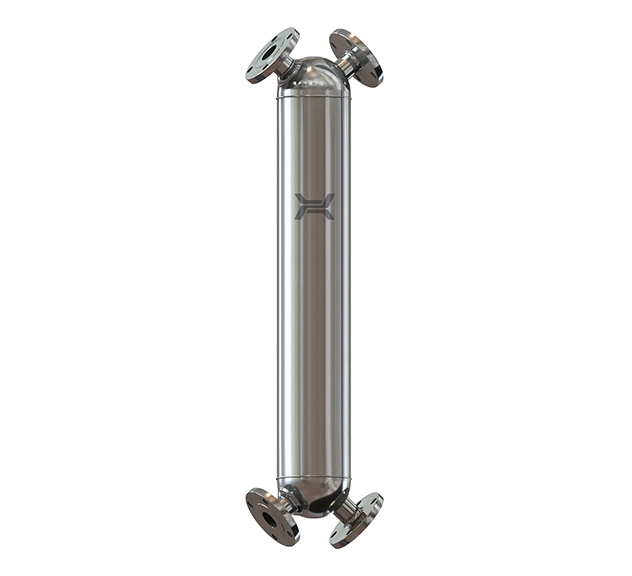

Specifications S Variant:

• Materials: Stainless Steel, and Carbon Steel
• Intended Media: Water, Propylene Glycol Solutions, Group 2 Fluids
• Max Temperature: 200°C
• Max Pressure: 232 PSI (16 Bar)

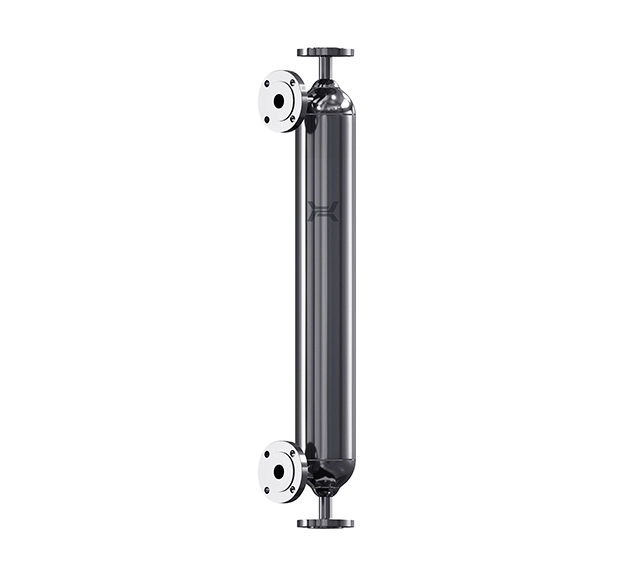

Specifications H Variant:

• Materials: Stainless Steel, and Carbon Steel
• Intended Media: Water, Propylene Glycol Solutions, Group 2 Fluids
• Max Temperature: 200°C
• Max Pressure: 232 PSI (16 Bar)

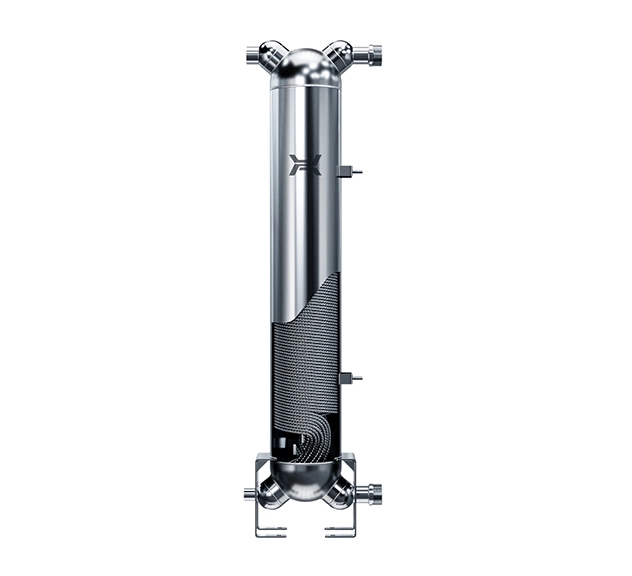

Specifications RAD Variant:

• Materials: Stainless Steel 316L/1.4404
• Intended Media: Water, Steam, Glycol, Flue Gas, Air, Ammonia, Acetone, Toluene, Synthetic Oils
• Max Temperature: 200°C
• Max Pressure: 652 PSI (45 Bar)

Shell and coil heat exchangers operate by allowing one medium to flow through the coil while another flows through the shell, ensuring efficient heat transfer through the coil’s surface. The corrugated tubes enhance turbulence, maximising thermal exchange efficiency while minimising pressure losses. Their compact design allows them to be used in constrained spaces without sacrificing performance. In applications such as heating and cooling systems, the exchangers provide reliable performance with low maintenance requirements. The RAD variant is specifically designed to handle refrigerant flow, ensuring even distribution and optimal thermal performance for ground source heat pump systems.
