Brazed Plate Heat Exchangers

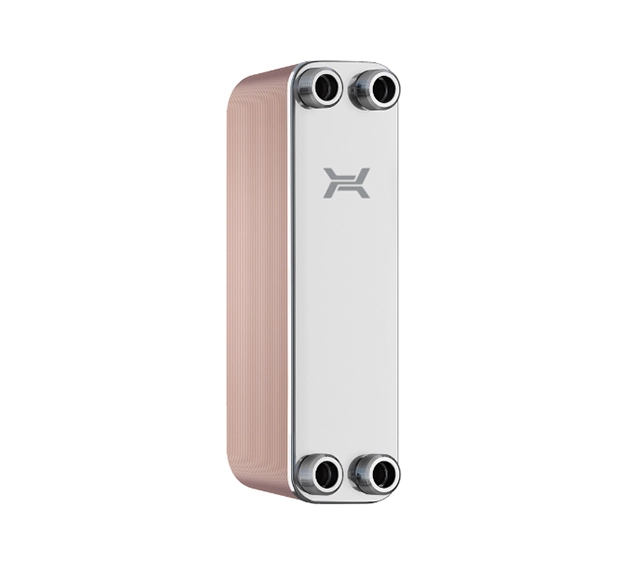

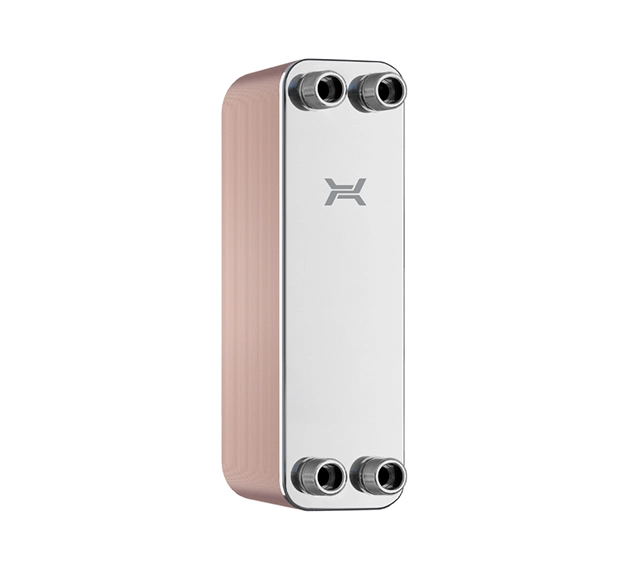

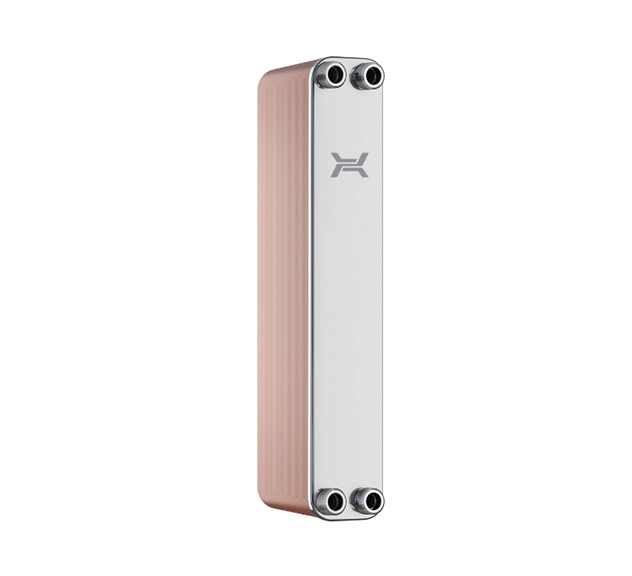

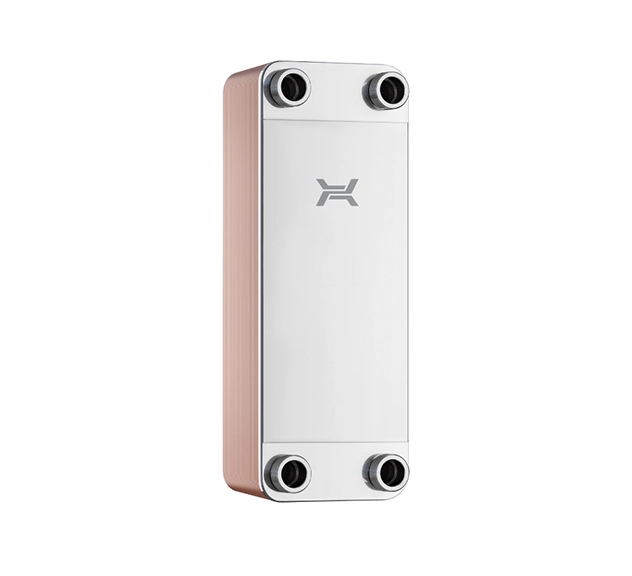

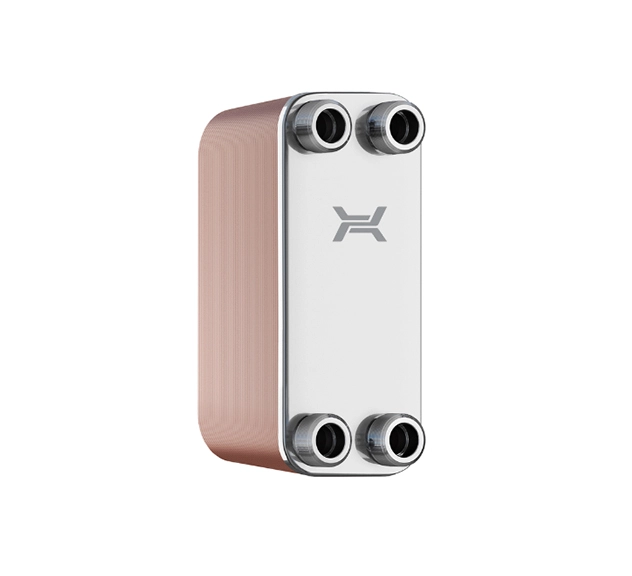

Variant L

Designed for heating and cooling installations, the L series offers high thermal performance with minimal operating costs. The brazing process ensures a permanent and airtight connection of plates, optimising performance and reliability.

Variant R

Optimised for cooling systems, the R series is used as an evaporator or condenser in heat pumps and refrigeration units. Its specialised refrigerant distribution system (RDS) ensures even evaporation and effective heat transfer.

Variant SafePLATE

Equipped with a double-wall system, SafePLATE heat exchangers prevent fluid mixing and provide early leak detection. They are ideal for applications requiring the highest safety standards.

Variant Luna

Constructed entirely from stainless materials, Luna series exchangers ensure high hygiene levels, making them ideal for systems with aggressive media, demineralised water, and sanitary installations.

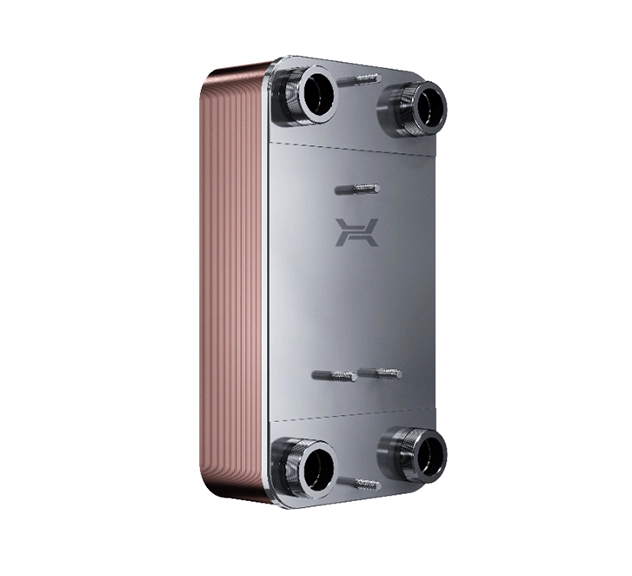

Variant AS

Designed specifically for heating applications, AS asymmetric exchangers maximise heat transfer efficiency while minimising pressure drops. They are compact and allow for the use of lower power pumps.

Variant L Ultra

The L Ultra series is an eco-friendly solution optimised for CO₂ applications. Its high-pressure resistance and robust design make it ideal for modern cooling and heating systems.

• High Efficiency: Optimised heat exchange area for superior performance
• Compact Design: Small footprint with a large heat transfer surface
• Flexible Configuration: Available in multiple sizes, with options for single and double flow versions
• Reliable & Durable: Designed for high-pressure and temperature conditions
• Low Operating Costs: Maintenance-free, long-term operation with minimal energy consumption
• Advanced Material Options: Available with copper or stainless LUNATM brazing for various applications
• Refrigerant Compatibility: Optimised for modern refrigerants and eco-friendly solutions like CO₂
• Leak Prevention: SafePLATE double-wall design ensures fluid separation and early leak detection

• Brazing Materials: Copper or stainless LUNATM brazing
• Heating Plates: Corrugated patterns enhance turbulence and heat transfer

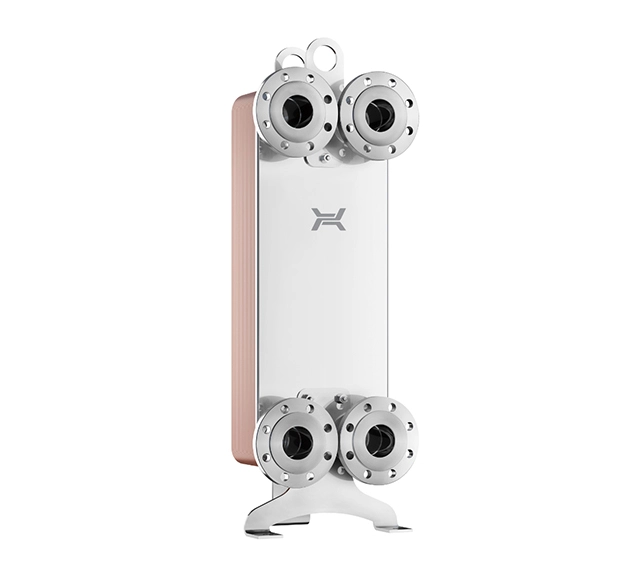

• Connections: Multiple options, including external thread, internal thread, Victaulic, and flanged connections
• Cover Plates: Protect internal components and ensure efficient operation
• Protection Sheets: Provide additional structural integrity and safety

Specifications L Variant:

• Materials: Stainless Steel, and Copper Brazing
• Intended Media: Water, Propylene Glycol Solutions
• Max Temperature: 230°C
• Max Pressure: 435 PSI (30 Bar)

Specifications Luna Variant:

• Materials: Stainless Steel, and Stainless Brazing
• Intended Media: Water, Propylene Glycol Solutions
• Max Temperature: 200°C
• Max Pressure: 400 PSI (27 Bar)

Specifications R Variant:

• Materials: Stainless Steel, Stainless Brazing, and Copper Brazing
• Intended Media: Water, Propylene Glycol Solutions, Group 2 Fluids
• Max Temperature: 160°C
• Max Pressure: 363 PSI (25 Bar)

Specifications SafePlate Variant:

• Materials: Stainless Steel, and Copper Brazing
• Intended Media: Water, Propylene Glycol Solutions, Group 2 Fluids
• Max Temperature: 230°C
• Max Pressure: 362 PSI (25 Bar)

Specifications L Ultra Variant:

• Materials: Stainless Steel, Stainless Brazing, and Copper Brazing
• Intended Media: Carbon Dioxide, Hydrogen, Inert & Active Gases, Hydrocarbons, Hydraulic Oils, Peroxides
• Max Temperature: 150°C
• Max Pressure: 2030 PSI (140 Bar)

Evaporators

A two-phase refrigerant enters the bottom welded connection and evaporates as it moves through the heat exchanger, achieving the required overheating level. Water or glycol flows in a counter-current direction to maximise heat transfer.

Condensers

Hot refrigerant vapours enter the top welded connection and condense as they move through the heat exchanger, ensuring optimal subcooling. Water or glycol flows in the opposite direction for maximum efficiency.

Heating & Cooling

In HVAC and industrial systems, these heat exchangers effectively transfer thermal energy between media, ensuring stable operation and energy efficiency.

Leak Detection & Safety

SafePLATE’s double-wall system prevents fluid mixing by directing leaks outside the exchanger for quick identification and maintenance.

With a wide range of variants and configurations, Brazed Plate Heat Exchangers provide reliable and efficient solutions for various heating and cooling applications.
