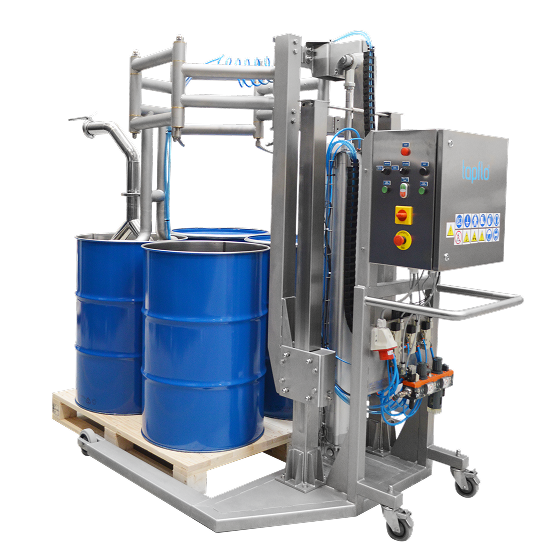

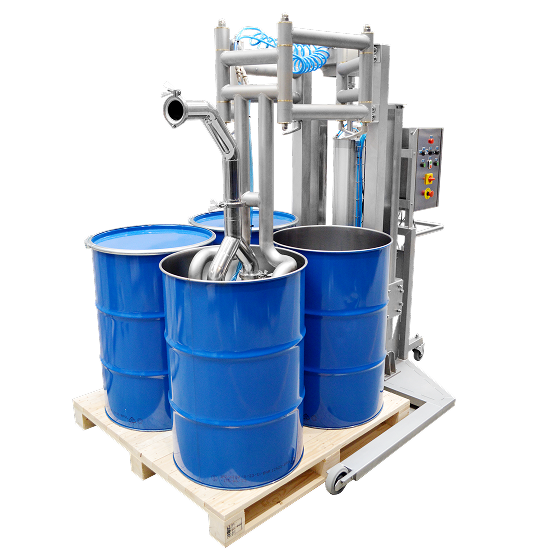

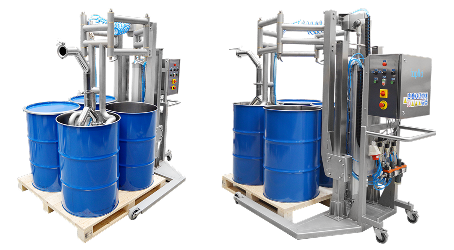

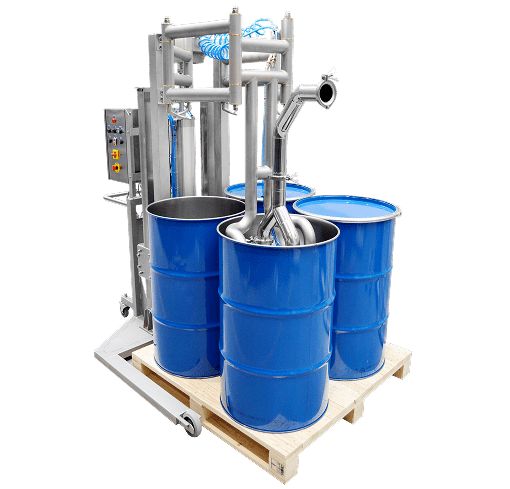

Our HVS Quattro Drum Unloading Machine is a High Viscosity System designed to efficiently unload highly viscous liquids at 400 l/min, with a removal rate of up to 99%! With a maximum solids passage of 15mm with a ball valve and 42mm with a flap valve, this system has been designed to streamline the unloading process, especially in high-volume applications where multiple drums (typically 4) are stored on pallets.
Our HVS Quattro Drum Unloading Machine is a High Viscosity System designed to efficiently unload highly viscous liquids at 400 l/min, with a removal rate of up to 99%! With a maximum solids passage of 15mm with a ball valve and 42mm with a flap valve, this system has been designed to streamline the unloading process, especially in high-volume applications where multiple drums (typically 4) are stored on pallets.
Food & Beverage
Cosmetics
Pharmaceutical
Industrial

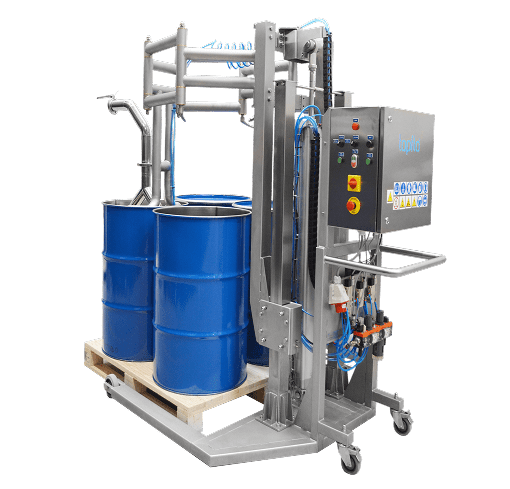

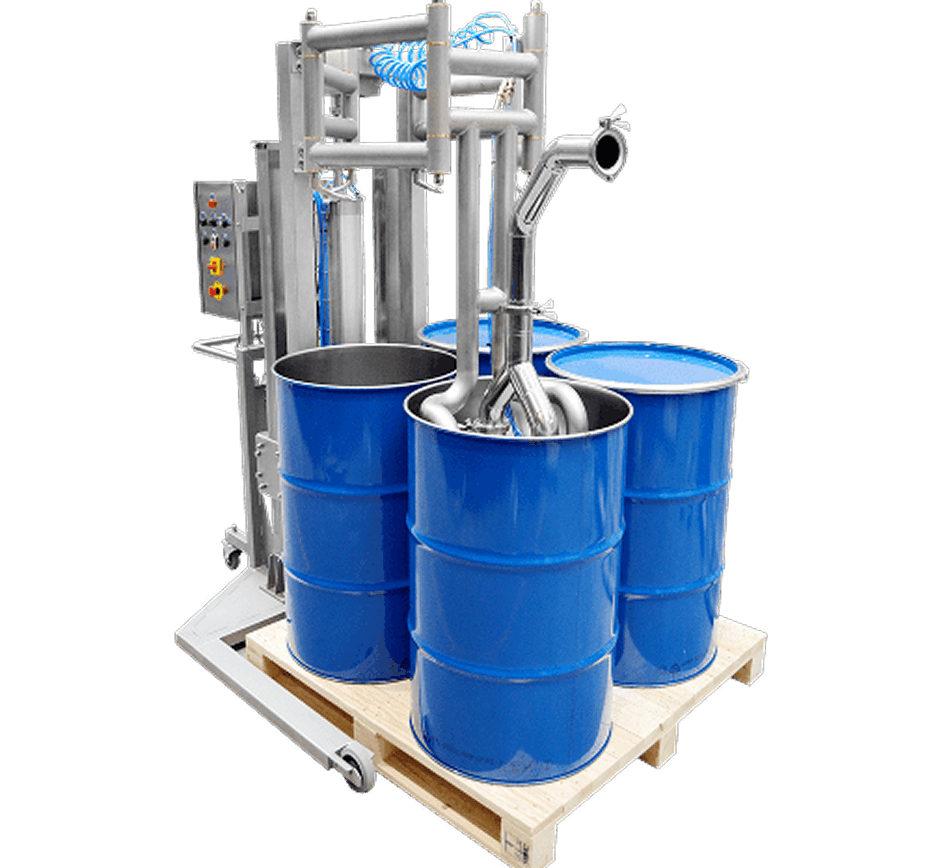

Front

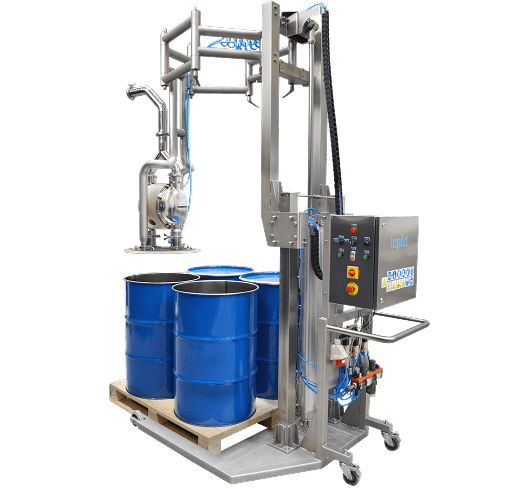

Back
Extended
Our HVS Quattro Drum Unloading Machine is a High Viscosity System designed to efficiently unload highly viscous liquids at 400 l/min, with a removal rate of up to 99%! With a maximum solids passage of 15mm with a ball valve and 42mm with a flap valve, this system has been designed to streamline the unloading process, especially in high-volume applications where multiple drums (typically 4) are stored on pallets.
Multi Tabs Component (this text will not be visible on the front end)
Benefits
Industries
Specs
Operating Principle
Drums & Containers
Control Panels
Easily unload 4 drums stored on a pallet one by one with the included articulated arm, ensuring a seamless and efficient process
Achieve quick unloading speeds of up to 400 l/min, depending on the liquid’s properties and discharge pressure
Benefit from a 99% product extraction rate, reducing product wastage and delivering substantial time-saving advantages
The system operates autonomously, stopping automatically once the drum is empty, while operators can attend to other responsibilities
ATEX-certified versions are available for use in hazardous or potentially explosive environments
Electro-polished AISI 316L stainless steel wetted parts, with optional materials for key components to suit specific applications.
| Technical Data | Specification |
|---|---|
| Max Capacity l/min | 590 l/min |
| Volume / Stroke, ml | 2300 ml |
| Max Discharge Pressure, Bar 8 Max Air Pressure, Bar | 8 Bar |
| Max Solids Passage, ø mm | 15 ø mm |
| Max Temperature, EPDM, ºC | 90 ºC |
| Max Temperature, NBR, ºC | 90 ºC |
| Max Temperature, PTFE, ºC | 110 ºC |
| Weight, Kg | 200 Kg |
| Wetted Metal Components | Stainless Steel AISI 316L, Electro-Polished |
| Liquid Contact Surface Roughness | <1.6 Ra (Std.), <0.8 & <0.5 Ra (On Request) |
| Centre Block (Not Wetted) | PP, Conduction PP, Aluminium |
| Diaphragms | PTFE, PTFE with white back, EPDM, white EPDM, NBR white, NBR (non FDA) |
| Valve Balls | PTFE, AISI 316, Ceramic, SiC, EPDM (non FDA, NBR (non FDA) |
| Air Valve | Brass (std.), stainless steel AISI 316L or PET with NBR (std.), EPDM or FKM Orings |
| Housing Stud Bolts | A4-80 |
| Diaphragm Shaft | Stainless Steel AISI 304L |
| Drum Type | Details |
|---|---|
| Straight Drums: | The 200-litre straight steel drum stands out as the most common and available choice. For efficient handling |
| Conical Drums: | These containers offer exceptional space-saving capabilities by nesting together when empty. This design not only optimises storage efficiency but also ensures a clutter-free workspace. |
| Drum solutions tailored to your needs: | Our High Viscosity System (HVS) is expertly adaptable, the system is specifically designed for drum unloading systems handling viscous liquids. |
| IBC, Goodpack, and Bag-in-Box® Options: | Our HVS systems can also be configured to unload IBC containers, Goodpack multimodal containers, or Bag-in-Box® containers. |

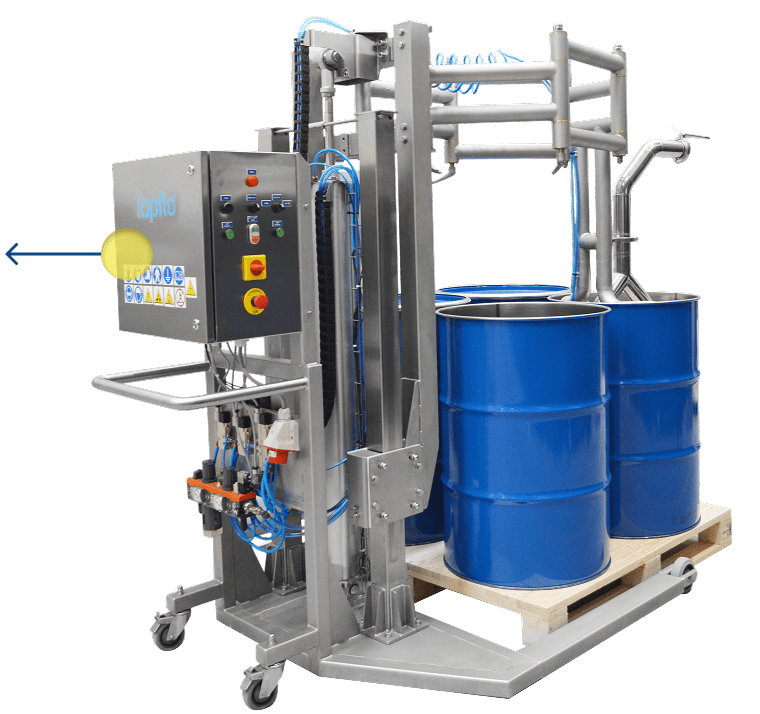

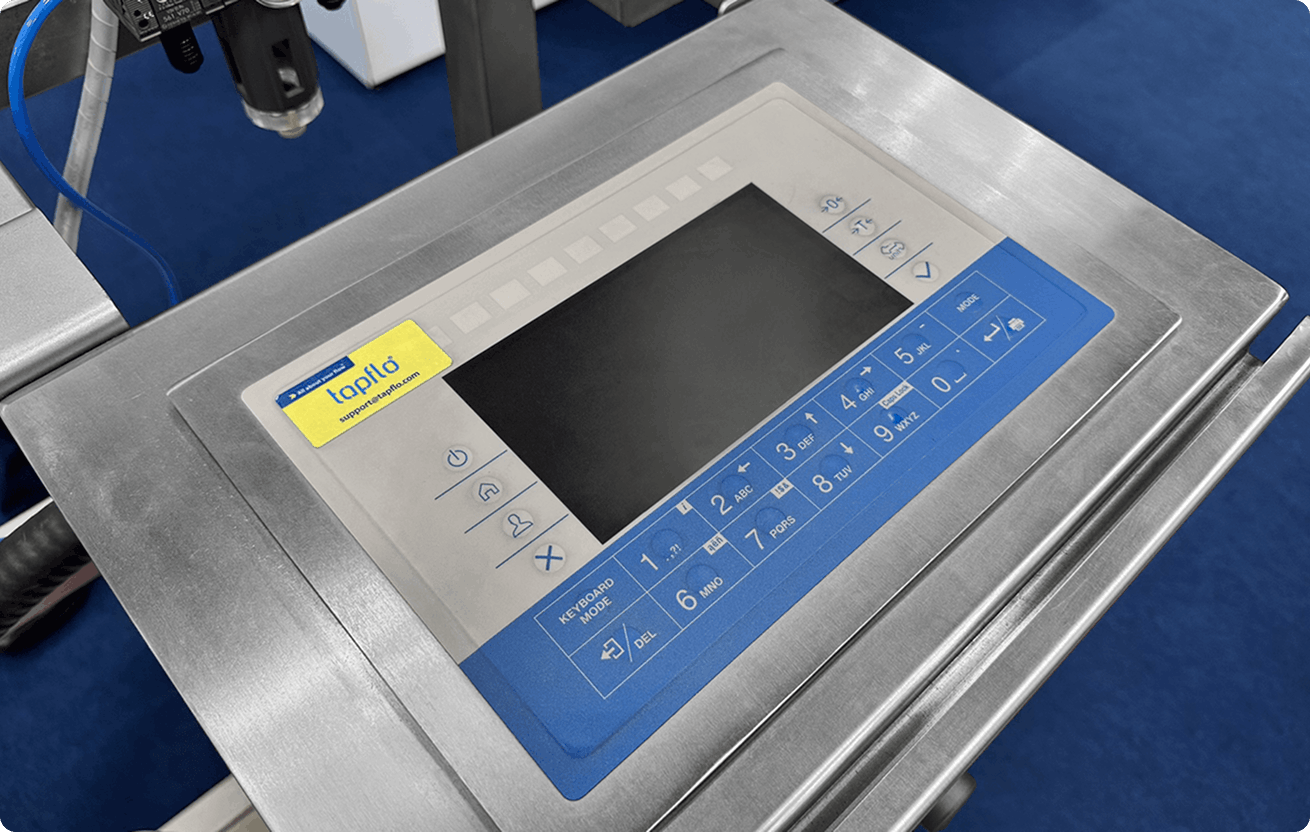

The HVS Quattro is operated through an integrated control panel, featuring a user-friendly interface. Operators can easily switch between automatic and manual modes. The control panel includes pushbuttons for precise pump positioning (RAISE or LOWER), pump control (START or STOP) and the ability to adjust pumping speed. For added safety and peace of mind, each control panel is equipped with the main system switch (ON/OFF) and a safety pushbutton (E-STOP).
We manufacture our control panels in-house, allowing you the freedom to tailor each Drum Unloading System to your specific requirements.
The HVS Quattro is engineered to efficiently unload high-viscosity liquids from drums, especially in high-volume applications involving multiple drums on pallets.
It can handle:

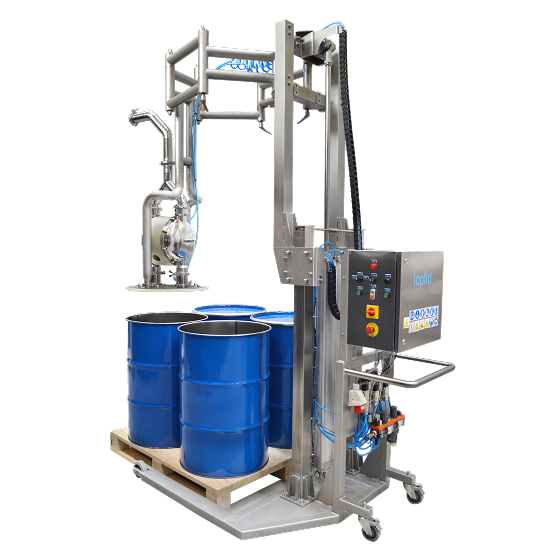

It uses a Sanitary Double Diaphragm Pump with integrated lifting/lowering functions and is mounted on an articulated arm for easy drum access.
Yes, ATEX-certified versions are available for use in explosive or hazardous environments.
Yes. Control panels are manufactured in-house and can be customised to meet specific application or operational requirements
Yes, our Unloading System is electrically and pneumatically operated, with pneumatic pumps and articulation, with electro-pneumatic control panels.Â
