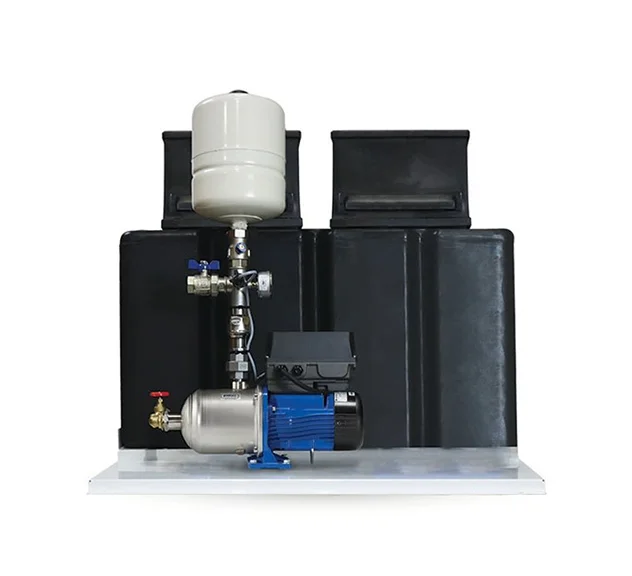

CAT 5 Booster Set 68L

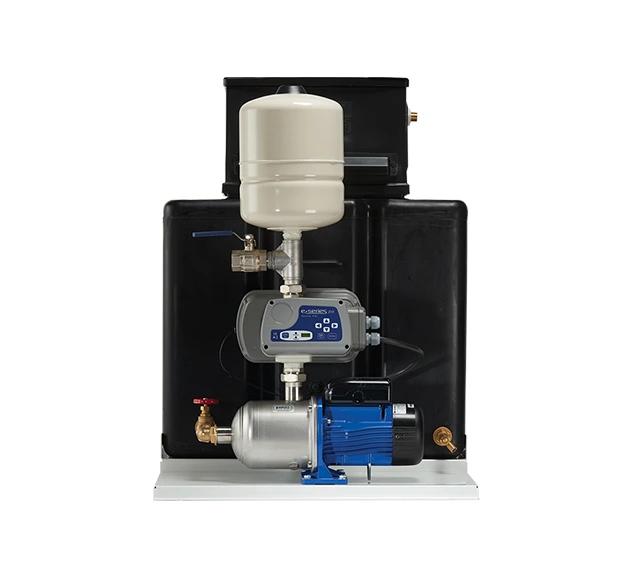

VARiFLO Cat 5 68L

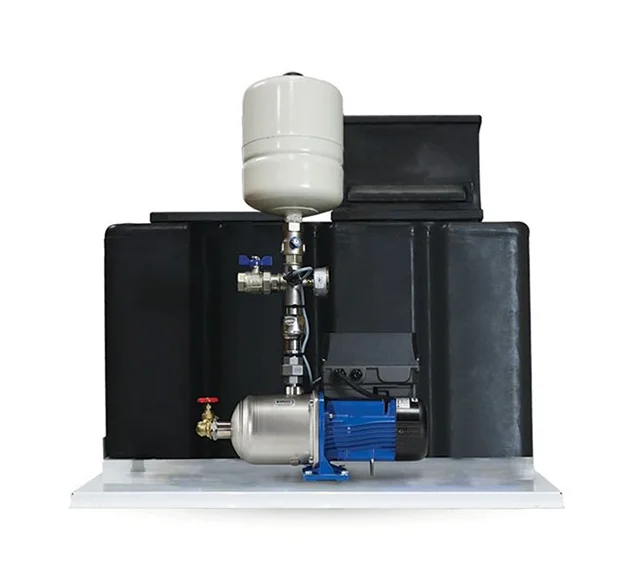

CAT 5 Booster Set 227L
CAT 5 227L
CAT 5 Booster Set 227L 2XAB
CAT 5 Booster Set 227L 2XAB
VARiFLO Cat 5 68L
CAT 5 227L
CAT 5 Booster Set 227L 2XAB
See Technical Data |
Model Max Flow Rate Max Head
VARiFLO CAT 5 68L 4.4 m³/h 7.6 Bar
VARiFLO CAT 5 227L 8.5 m³/h 9.1 Bar
VARiFLO CAT 5 227L 2XAB 8.5 m³/h 9.1 Bar

AQUABOOST VARiFLO CAT 5 Booster Sets

The AquaBoost VARiFLOW CAT 5 systems are designed with a 68 or 227 litre polypropylene break tank, featuring a raised ball valve chamber with a type of AB air gap. The systems are built from high-quality Stainless Steel multistage pumps that are continuously rated and controlled via variable speed controls.

Designed for quiet operation, the category 5 backflow prevention booster sets are easy to install. Featuring a WARS-approved mains break tank for category 5 commercial applications, constructed to BS6283.

Typical applications for our AQUABOOST VARiFLO CAT 5 Booster Sets:

  • Commercial
  • Category 5
Key Features & Benefits
  • Mixed and variable control options
  • Air-cooled inverter
  • 304 Stainless Steel WRAS approved
    pump & WRAS approved discharge
    components
  • High-capacity GRP cold water storage options
  • Integral low water alarm
  • BMS volt-free contacts
Specification
Max Flow Rate  8.5 m³/h
Max Head 9.1 bar
Max Water Temperature 40°C
Power Supply 230 V
Pump type Multistage centrifugal (horizontal)
Pump Control System Variable speed
Maximum Working Pressure 1000 kPa / 10 bar
Dry Run Protection Yes
Accessories
  • Anti-Surge Air Valve
  • Flexible Hoses
  • Booster Set Anti-Vibration Mounts
  • Float Switches
  • Expansion Vessels
  • Water Conditioners
