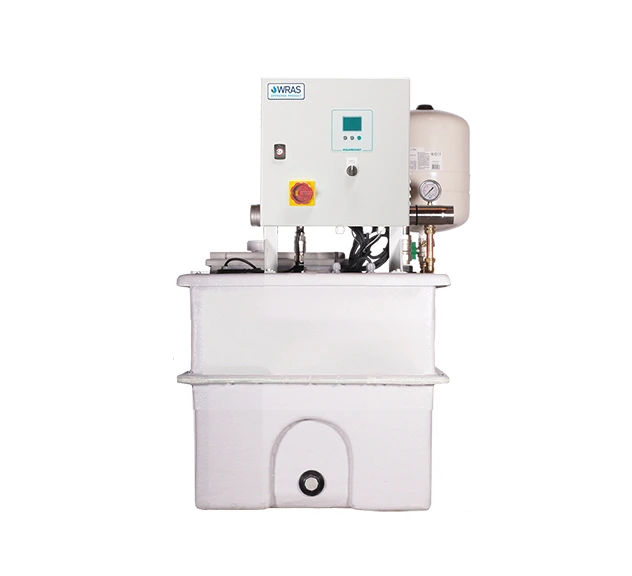

In-Tank 250L
In-Tank 250L
In-Tank 501L
IN-TANK 501L
In-Tank 601L
IN- TANK 601L

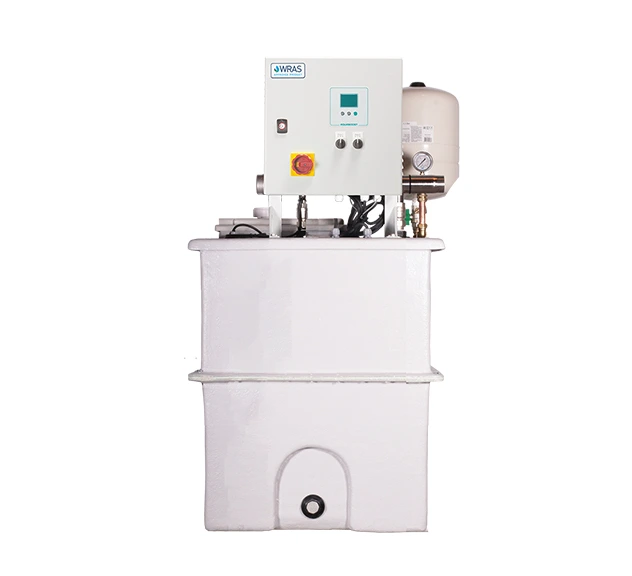

In-Tank 825L
IN TANK 825L

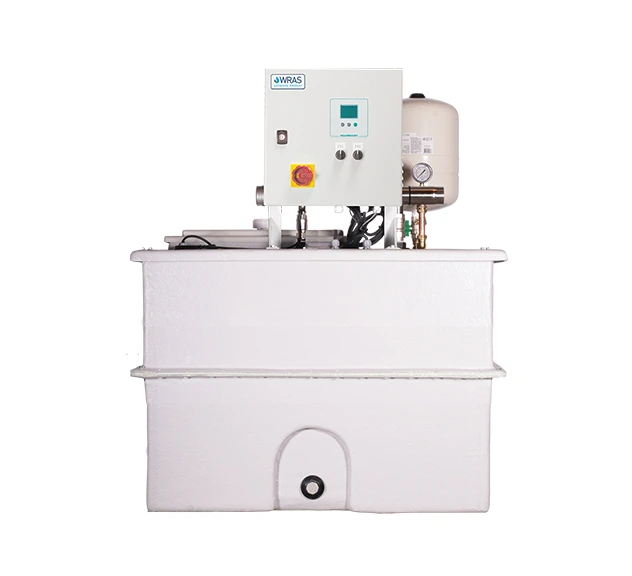

In-Tank 1000L
IN-TANK 1000L

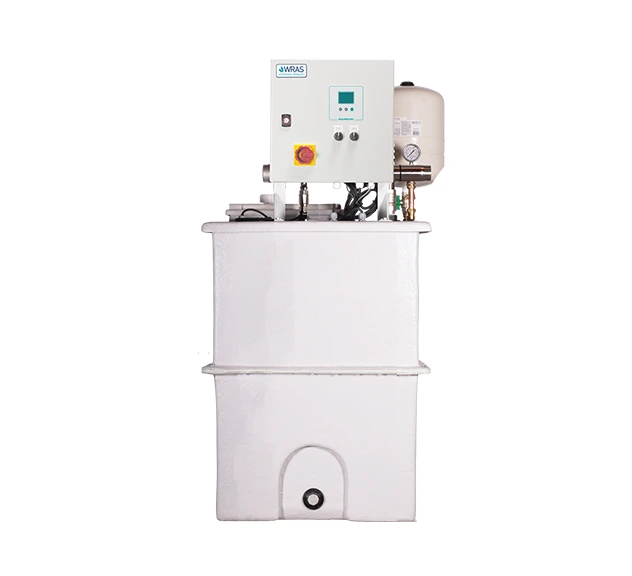

In-TANK 1050L
IN-TANK 1050L

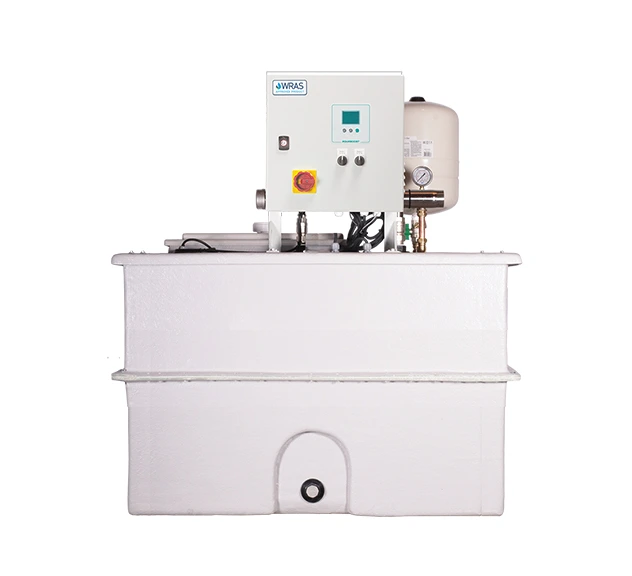

In-TANK 1500L
IN-TANK 1500L
In- Tank 2000L
IN-TANK 2000L
In-Tank 250L
IN-TANK 501L
IN- TANK 601L
IN TANK 825L
IN-TANK 1000L
IN-TANK 1050L
IN-TANK 1500L
IN-TANK 2000L
See Technical Data |
Model Max Flow Rate Max Head
IN-TANK 250L 4.8 m³/h 8.4 bar
IN-TANK 501L 7.2 m³/h 8.4 bar
IN-TANK 601L 7.2 m³/h 8.4 bar
IN-TANK 825L 7.2 m³/h 8.4 bar
IN-TANK 1000L 7.2 m³/h 8.4 bar
IN-TANK 1050L 7.2 m³/h 8.4 bar
IN- TANK 1500L 14.4m³/h 8.4 bar
IN-TANK 2000L 27 m³/h 8.4 bar

AQUABOOST IT IN-TANK – Integrated Booster Systems – WRAS Approved

A range of WARS/ KIWA 4-approved integrated booster systems offers an extensive range of break tank sizes and configuration options designed to suit the application. The range features exceptionally quiet submersible pumps: despite their size, the booster systems offer impressive water storage facilities, designed to deliver high-water pressure and high flow rates to multiple outlets.

Typical applications for our IT IN-TANK – Integrated Booster Systems:

  • Domestic
  • Commercial
Key Features & Benefits
  • Dry run protection
  • Very quiet operation
  • Compact, space-saving design
  • 304 stainless steel variable speed single, twin or triple pump
  • Easy installation
  • WRAS approved 24-litre pressure vessel
  • Up to 2000 litres of water storage capacity
Specification
Max Flow Rate  27 m³/h
Max Head 8.4 bar
Max Capacity 2000L
Air Temperature 40 °C
Pump Options Single / Twin/ Three
Cold Water Storage Options 250 – 5000
Pressure Valve 24L
Pump Control System Variable Speed Controls
Accessories
  • Anti-Surge Air Valve
  • Flexible Hoses
  • Booster Set Anti-Vibration Mounts
  • Float Switches
  • Expansion Vessels
  • Water Conditioners
