iMATIC 1S
iMATIC 1s
iMATIC 2S
iMATIC 2S
iMATIC 1s
iMATIC 2S
See Technical Data |
Model Max Flow Rate Max Head
iMatic 400 6.0 m³/h 6.4 bar
iMatic 800 12.0 m³/h 6.4 bar
iMatic 1200 20 m³/h 6.6 Bar

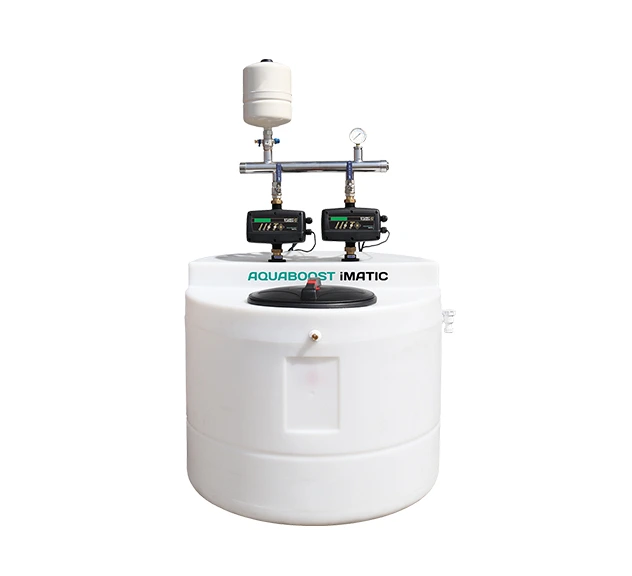

AQUABOOST iMATIC Integrated Booster Systems

The AquaBoost iMATIC cold water booster systems are extremely quiet in operation, compact and simple to use. The range features one or two submersible multistage pumps, each managed by a dedicated variable-speed frequency inverter. The iMATIC integrated systems use WARS-approved materials and an AC air gap as part of the tank design.

Typical applications for our iMATIC Integrated Booster Systems:

  • Domestic
  • Commercial
Key Features & Benefits
  • Up to 1200 litre plastic moulded tank
  • Dry run protection
  • Stainless steel/brass discharge fittings
  • Nickel-plated WRAS-approved ball valves
  • Union fittings on a controller
  • BMS volt-free contacts
Specification
Max Flow Rate  20 m³/h
Max Head 6.6 bar
Max Capacity 1200l
Air Temperature 40 °C
Pressure Valve 24l
Pump Type Submersible multistage centrifugal
Material Stainless Steel
Pump control system Variable speed
Water Tank Fill Rate 30 l/min
Dry run protection Yes



Accessories
  • Anti-Surge Air Valve
  • Flexible Hoses
  • Booster Set Anti-Vibration Mounts
  • Float Switches
  • Expansion Vessels
  • Water Conditioners
