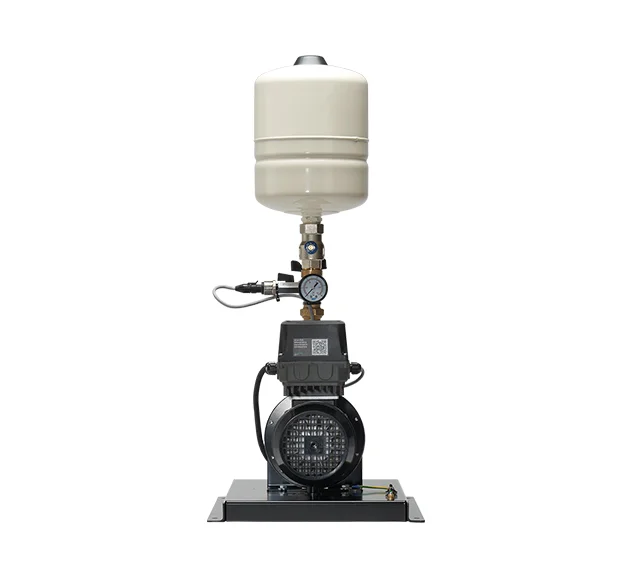

iBOLT Single Pump Booster Sets
Single Booster Set

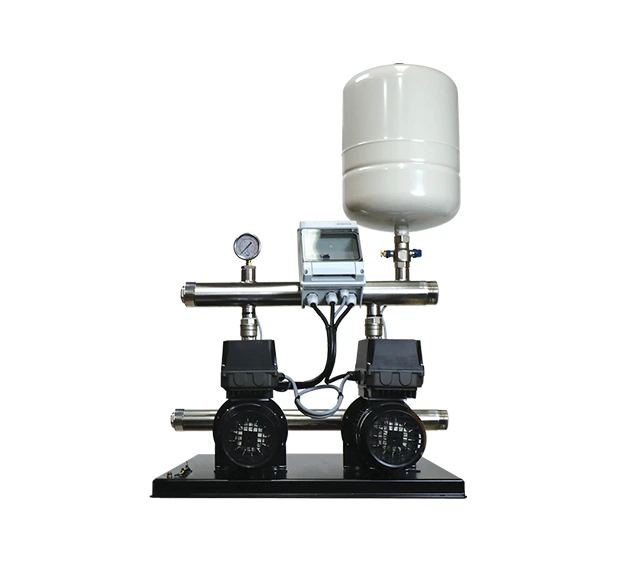

iBOLT Twin Pump Booster Set
iBOLT Twin Pump set

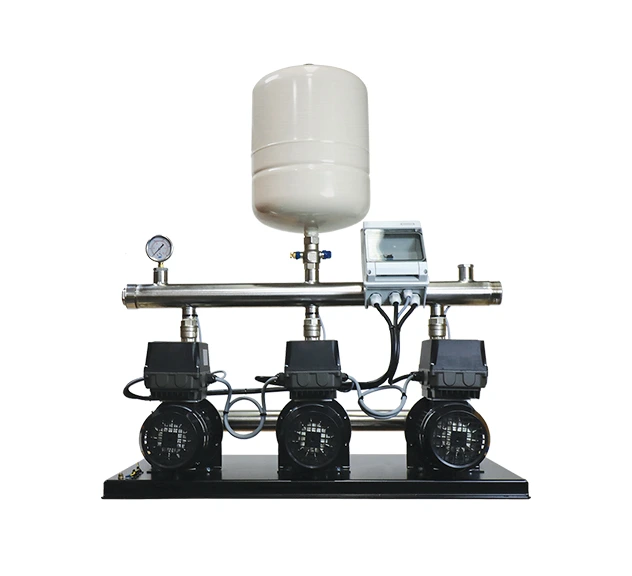

iBOLT Triple Pump Booster Set
iBOLT Triple Pump set
Booster pump
Single Booster Set
iBOLT Twin Pump set
iBOLT Triple Pump set
See Technical Data |
Model Max Flow Rate Max Head
iBOLT Booster Pumps 15.0 m³/h 9.2 bar
iBolt Single Pump Booster Sets 25.0 m³/h 9.2 bar
iBolt Twin Pump Booster Sets 30.0 m³/h 9.2 bar
iBolt Triple Pump Booster Sets 45.0 m³ /h 9.2 bar

AQUABOOST iBOLT Booster Pumps and Sets

The AQUABOOST iBOLT range of booster pumps features a horizontal multistage pump controlled by an air-cooled variable speed frequency inverter mounted directly on the pump motor. Engineered to be high-performance and easy to commission, the iBOLT range offers a constant water pressure supply where the flow demand varies.

Typical applications for our iBOLT Booster Pumps and Sets:

  • Domestic
  • Commercial
  • Industrial
Key Features & Benefits
  • Dry run protection
  • 304 Stainless Steel WRAS-approved pump
  • Stainless Steel/ Brass discharge fittings
  • Nickel-plated WRAS-approved`1 ball valves
  • Air-cooled inverter
  • BMS voltage-free contacts
  • Hydraulic kit, base plate and anti-vibration mount options available
Specification
Max Flow Rate  45 m³/h
Max Head 9.2 bar
Max Air Temperature 40 °C
Material 304 Stainless Steel
Voltage 230 V a.c. / 1 / 50 Hz
Pump Control System Variable Speed (via pressure transducer)
Pump Control Mode Duty / Standby or Duty / Assist
Dry Run Protection  Yes
Pressure Vessel 24 Liters
Accessories
  • Anti-Surge Air Valve
  • Flexible Hoses
  • Booster Set Anti-Vibration Mounts
  • Float Switches
  • Expansion Vessels
  • Water Conditioners
