BA55E D220 High-Head Pump

Tapflo UK is proud to be the exclusive UK Partner of BBA Pumps, a leading Dutch manufacturer of the highest-quality, best-in-class Diesel-Driven Sets and Self-Priming Centrifugal Pumps.

Our BA55E D220 High-Head Pump is a 2-inch Diesel-Driven mobile pump, ideal for clear liquid pumping, with solids handling capabilities up to 9mm. Featuring dry self-priming capabilities and a modern, emission-compliant diesel engine, this versatile pump delivers exceptional performance for jetting wellpoint filters and more.

  • Jetting wellpoint filters
  • Tank cleaning
  • Firefighting
  • Construction projects

Download Brochure
Overview

Designed for maximum efficiency, the BA55E D220 combines a best-in-class Centrifugal Pump with a semi-open impeller, a robust priming system, and a sound-attenuated canopy. The result is a reliable, economical, and portable solution for high-head applications.

Features & Benefits
  • Pump Performance: Flow up to 74 m³/h, max head 51 mwc, with highly efficient NPSH curve

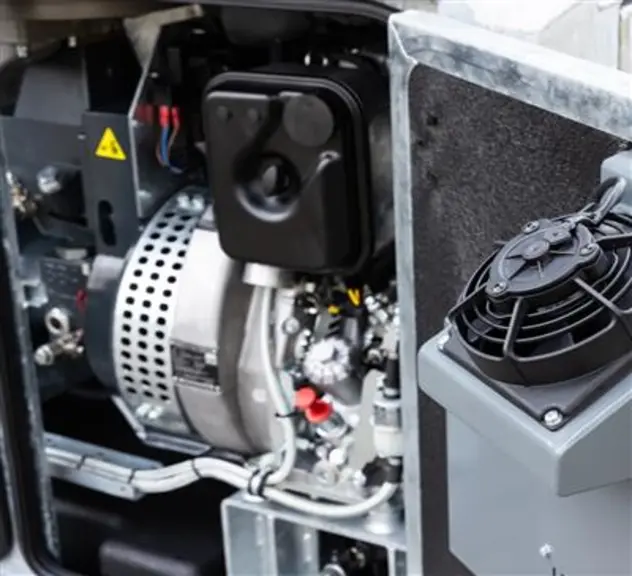

  • Diesel Engine: Stage-V emission-compliant Hatz engine with electronic variable speed control for low noise and fuel efficiency
  • Priming System: Fully automatic Diaphragm Vacuum Pump for quick dry priming and re-priming
  • Durability: Heavy-duty bearing frame with oil chamber, corrosion-resistant canopy, and 4-year warranty
  • Ease of Use: Integrated remote control, forklift pockets, and lifting eyes for hassle-free mobility
Specifications
Discharge x Suction 2″ x 3″
Max. Flow 74 m³/h
Max. Head 51 mwc
Free Passage 9mm
Engine Hatz, max speed 3000 rpm
Fuel Consumption 4 l/h at BEP
Sound Level 61 dB at 10 m
Dimensions 1500 x 940 x 1228mm
Dry Weight 895 kg
Variations
  • Additional remote-control options
  • Custom canopy branding
