Hopper Pump

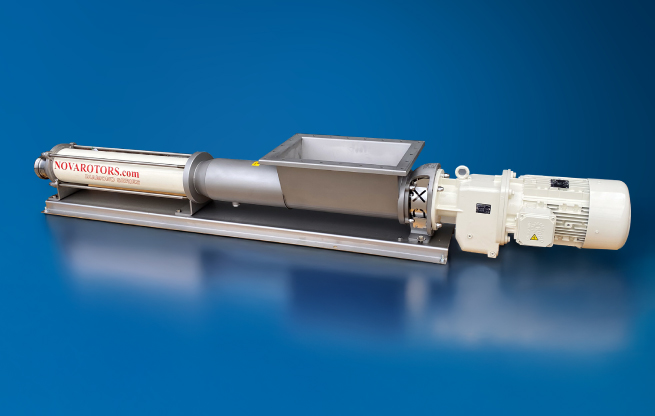

Our Hopper Pump, part of our Progressive Cavity Pump range, is designed to handle highly viscous, solid-laden, and non-flowing materials across demanding industrial and environmental applications. With a rectangular hopper and auger feed screw, the pump ensures reliable feeding of thick or poorly flowing substances directly into the hydraulic section. Available in multiple configuration options, including ATEX-rated models for hazardous environments, this Hopper Pump delivers robust versatility and long-term performance.

  • DH/DHE model: Rectangular hopper with auger feed, suitable for up to 18% solids without bridging
  • DHB/DHP model: Wide throat hopper with bridge breaker, suitable for up to 35% solids
  • DHS model: Oversized auger for highly viscous materials up to 28% solids

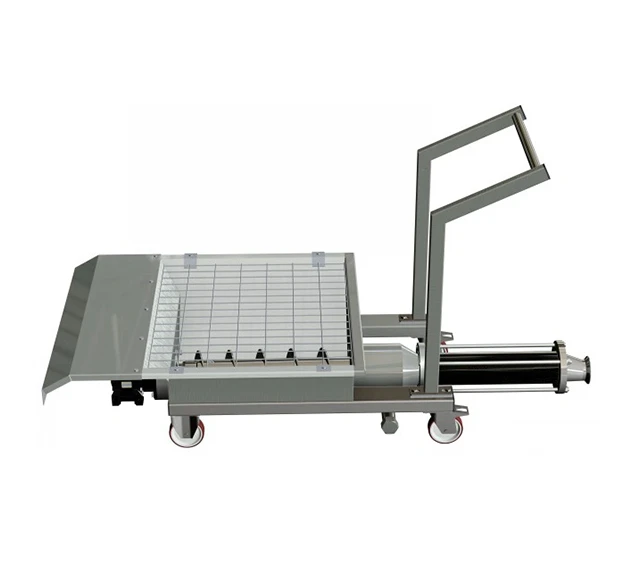

  • DHSB & DHS-T model: Heavy-duty configuration with wheel-assisted feed for non-flowing materials with solids up to 40%

Typical applications for our Hopper Pump:

  • Biogas & sludge processing
  • Wastewater treatment
  • Sludge disposal & transformation
  • Chemical
  • Construction & cement
  • Mining & drilling
  • Maritime & offshore
  • Papermaking
  • Tannery industry
  • Agriculture (certain configurations)
Overview

Our Hopper Pump Series offers superior adaptability for heavy-duty pumping requirements. With flow rates up to 520 m³/hr and discharge pressures up to 48 Bar, this range provides robust performance across diverse sectors. The modular construction supports easy maintenance and customisation, including extended hopper lengths, joint protection systems, and optional accessories for improved durability.

Variant Highlights:

  • DH/DHE Series: Compact, cost-effective monobloc hopper pump with auger feed
  • FH Series: Modular design with bearing support module for enhanced versatility
  • JH Series: Heavy-duty configuration with superior bearing support for maximum durability
  • HS/DHS Series: Extended hopper with oversized auger for up to 35% solids and high viscosity materials
  • DHSB & DHS-T Series: Wheel-assisted feed for handling non-flowing materials up to 40% solids
Features & Benefits
  • Patented Pin-Type Joint: High reliability and simplified maintenance
  • Customisable Hopper Length: Extendable rectangular hoppers for specific material handling
  • Seal Systems: Packing, single/double mechanical seals, and API-compliant options
  • Material Options: Cast Iron, Stainless Steel, Duplex, and special alloys with optional coatings (ceramic, fluoropolymers)
  • Self-Priming Capability: Up to 7m for efficient fluid transfer
  • Low Pulsation Flow: Progressive Cavity design ensures steady, low-shear pumping
  • ATEX-Rated Models: Safe operation in explosive or hazardous environments
  • Optional Additions: Heating jackets, dry-run protection, bypasses, and quench systems
Specifications

Technical Data

Max Flow (m³/hr) Up to 520m³/hr
Max Pressure (Bar) Up to 48 Bar
Temperature Range (°C) -40ºC to +150ºC
Materials Cast Iron, Stainless Steel (AISI 304/316), Duplex, Super Duplex, special alloys
Rotor/Stator Options Steel/alloy rotors with coatings; elastomer stators including NBR, EPDM, FPM, HNBR, and optional food-grade compounds



Variations
  • Base Plates: Standard, API 676, anti-vibration housing, risers, skid-mounted, trolleys (industrial & winery options)
  • Connections: Flanged (UNI, DIN, ASME), threaded GAS BSP, clamp, DIN 11851
  • Sealing Systems: Packing, single/double mechanical seals, cartridge seals, API-compatible
  • Optional Accessories: Stator heating jackets, flow switches, dry-run protection, pressure sensors, stainless steel lanterns, bypass systems
