Low Energy Air Pump – Sanitary

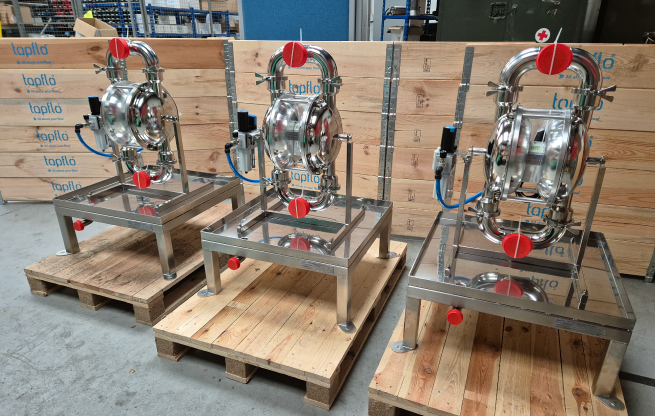

Sanitary Low Energy Air Pump
Sanitary Low Energy Air Pump

Low Energy Air Pump – Sanitary

FDA icon ISO icon CE icon EN10204 icon Tapflo 5 year guarantee icon

Our LEAP (Low Energy Air Pump) technology is available across our full Tapflo AODD range, manufactured to suit the simple, efficient design of Tapflo Diaphragm Pumps. This technology uses an indirect system that detects the position of the diaphragm shaft, automatically controlling the diaphragm movement. By reducing internal losses and friction found in standard AODD Pumps, this technology effectively reduces the minimum operating pressure for Diaphragm Pumps, ensuring that businesses using LEAP Technology could save up to 70% on energy consumption. LEAP was designed in-house at Tapflo UK and is now sold globally through the Tapflo network to over 80 countries.

Typical applications for our Sanitary Low Energy Air Pump:

  • Dairy Products
  • Grocery Products
  • Beverages
  • Bakery Products
  • Brewery
  • Hygiene
  • Cosmetics

Max. Flow:

Max. Head:

Max. Temp:






FDA icon ISO icon CE icon EN10204 icon Tapflo 5 year guarantee icon

LEAP stands for Low Energy Air Pump, a ground-breaking technology used to reduce energy consumption for businesses running Air-Operated Diaphragm Pumps, allowing them to save up to 70% on energy costs. LEAP has been designed to control the airflow through a Diaphragm Pump using innovative technology developed here in the UK.

What’s the difference between LEAP and a standard AODD Pump?

  • Your Diaphragm Pump will start at a much lower air pressure, typically 0.2 bar compared with industry-standard AOD Pumps which start at 1.2 bar
  • Operation is much smoother due to reduced friction in the pump’s centre section
  • Users of LEAP could save up to 70% on energy consumption

This technology can be requested on purchase of your Diaphragm Pump, or it can be retrofitted to any Tapflo, as well as several of our competitors’ pumps, by simply swapping the centre section on your pump. Many businesses are looking to meet energy-saving targets, which Tapflo can support you with. There has been a significant increase in demand for this revolutionary technology as businesses release just how much money and energy they could save by switching to LEAP.

  • Available on the complete range of Tapflo Air Operated Diaphragm Pumps
  • Retro-fittable: Switching to low energy technology is as simple as switching the centre section of your Tapflo Diaphragm Pump to a LEAP centre section. This is also applicable to several of our competitors’ pumps.
  • Ultra-Low starting pressure: 0.2 Bar (3psi)
  • Reduced energy consumption: saving up to 70% using our Low Energy Diaphragm Pump
  • Impossible to stall: (mid-port)
  • 24vdc starting signal (2.3w/1w) & Dry contact (VFC) feedback on completed strokes – provides control & feedback to the operator for preventive maintenance as well as performance monitoring such as:
  • Batch dispensing: Simply counting the strokes of the diaphragms and stopping the pump after the required volume has been dispensed.
  • Dry Running: By analysing the frequency of the pulses you can monitor whether the pump is dry running or not. When the pump starts to dry run the frequency of the pulses will increase.
  • Dead Heading: When the frequency of the pulses slows down or stops this means that the pump has deadheaded, indicating closed valve operation or a blockage in the pipework.
  • Flow Monitoring: Counting the frequency of the pulses can also be used to monitor the flow rate of the media in the process. The diaphragms displace a set amount per stroke therefore by multiplying the strokes by the volume displaced per stroke provides an accurate indication of flow. Or indeed, in the case of one of our customers, wiring in a coreolis flow meter with pulse feedback into their system to provide real-time monitoring of flow to within an even greater degree of accuracy. Coreolis Flow Meters are NEVER used with diaphragm pumps as they are susceptible to pulsing flow. This is testament to the ability of the LEAP Pump to reduce the pulsing effect usually associated with traditional diaphragm pumps.
  • Easy to maintain – Air Valve can be replaced in under 2 minutes, pump disassembly isn’t required!
  • Reduced pulsation – negates the need for a pulsation dampener in many instances!
  • EP Mode for high-pressure applications and start control: As standard, the unit is supplied with an internal pilot signal, however, should the unit be required to be used in a high-pressure application, in excess of 10 bar, i.e. Filter Press applications, the unit can be easily modified to use a lower pressure external pilot.
  • One seal design – reduced frictional losses
  • Noise reduction – lower air pressures reduces the noise of the pump
  • Control simplification – No need for an external pneumatic solenoid valve, reducing costs and simplifying control
  • Improved Life of main Air Valve: Tapflo have developed their own air valve for use with the LEAP technology using a lapped spool and sleeve construction. This provides a life expectancy in excess of 200 million cycles!

Description of the LEAP Air Valve

For more information and a case example of where our Low Energy Air Pump (LEAP) has been integrated into a production line with control and monitoring from a central control system, visit our case studies section. The valve is also balanced to prevent any issues associated with high-pressure applications.

Data Pump Size
TC 80 TC 125 TC 225 TC 425
General Characteristics
*Max Capacity (l/min) 78 155 330 570
**Volume per Stroke (ml) 87.5 300 933 2300
Max Discharge Pressure (Bar) 8 8 8 8
Max Air Pressure (Bar) 8 8 8 8
***Max Suction Lift Dry (m) 3 4 4 4
Max Suction Lift Wet (m) 8 9 9 9
Max Size of Solids (ø in mm) 4 6 10 15
Max Temperature (°C) 110 110 110 110
Weight (kg) 8.5 12 22 37
