Salvatore Robuschi Vertical Immersion Centrifugal Pump Guide

Article sections

    What is a Vertical Immersion Pump?

    Vertical Immersion Pumps are fitted with either an extended pump or motor shaft which is encased in a column, enabling the pumping element of the pump assembly to be inserted into a tank or sump whilst the motor is kept outside of the fluid.

    Vertical Immersion Pumps differ from Cantilever Centrifugal Pumps as Immersion Pumps have a separate shaft to the motor so can be supplied in lengths up to 7m, whereas Cantilever Pumps use an extended motor shaft meaning that they are limited to a maximum of 1.5m immersion length. Bearing support is provided for the pumps with longer shafts to reduce shaft deflection and ‘whipping’ of the pump in the tank. Discharge pipes for a Vertical Immersion Pump can be supplied as standard or on-demand to enable an easy out of tank or sump connection to discharge pipework or hose assemblies.

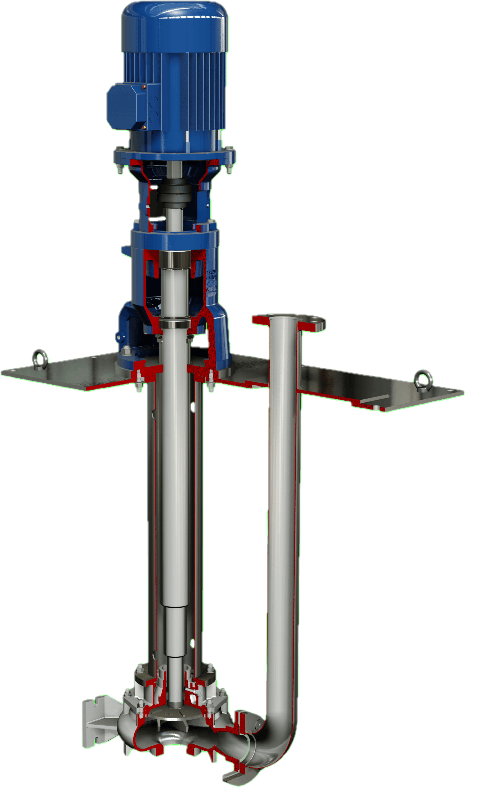

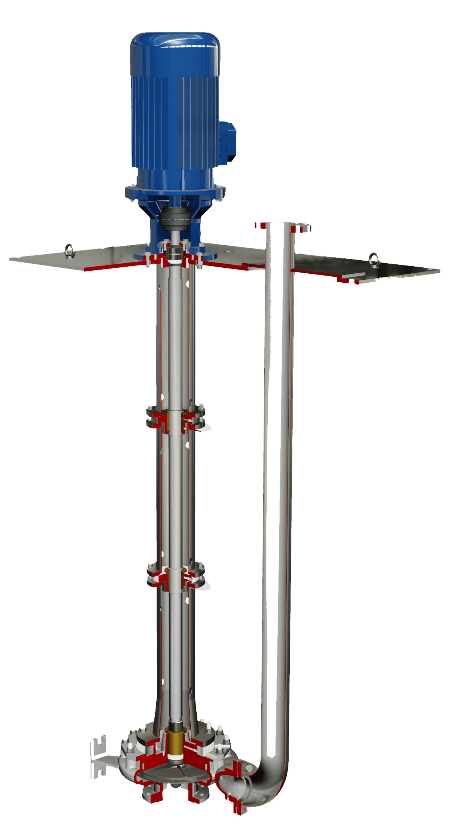

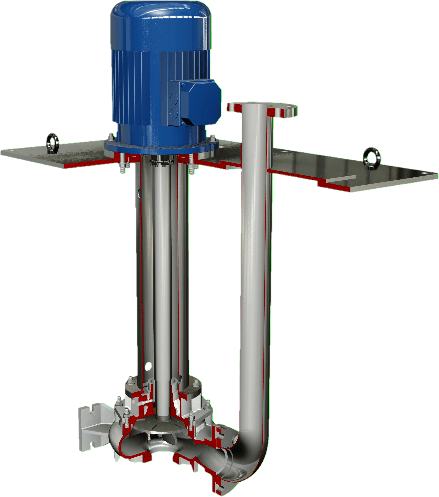

    (From left to right) Vertical Immersion Pump, Cantilever – No bearing support, Cantilever with bearing support

    Salvatore Robuschi

    Tapflo UK are the official UK distributors for Salvatore Robuschi, meaning we are able to supply any of their RB, RC, RD, RG or RN ISO 2858/5199 Process Centrifugal Pumps. These pumps are available in either Vertical Immersion or Cantilever configurations in a plethora of metallurgies (Cast Iron & AISI 316 as standard), as well as our CTV Cantilever pumps (SS 316, PP & PVDF).

    What type of installations can Vertical Immersion Pumps be used for?

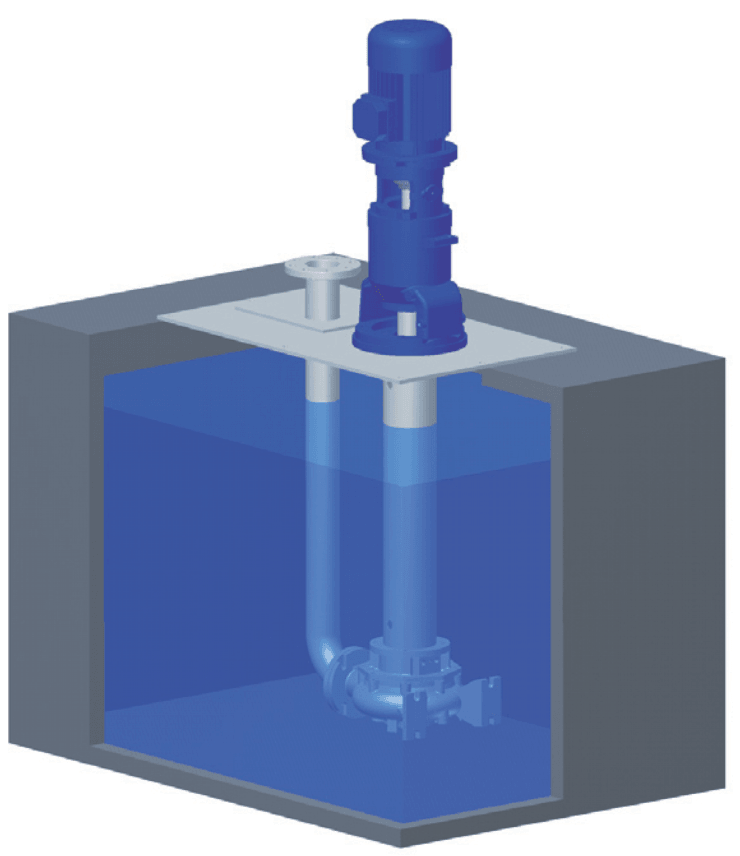

    Vertical Immersion Pump Installation

    Traditional Installation in a Tank or Sump: A Vertical Immersion Pump can be operated without level controls and can run dry if the tank empties. When the fluid level in the tank rises again, the pump re-primes automatically and starts pumping again until the fluid level drops below the suction port. Maximum Immersion length is up to 6m.

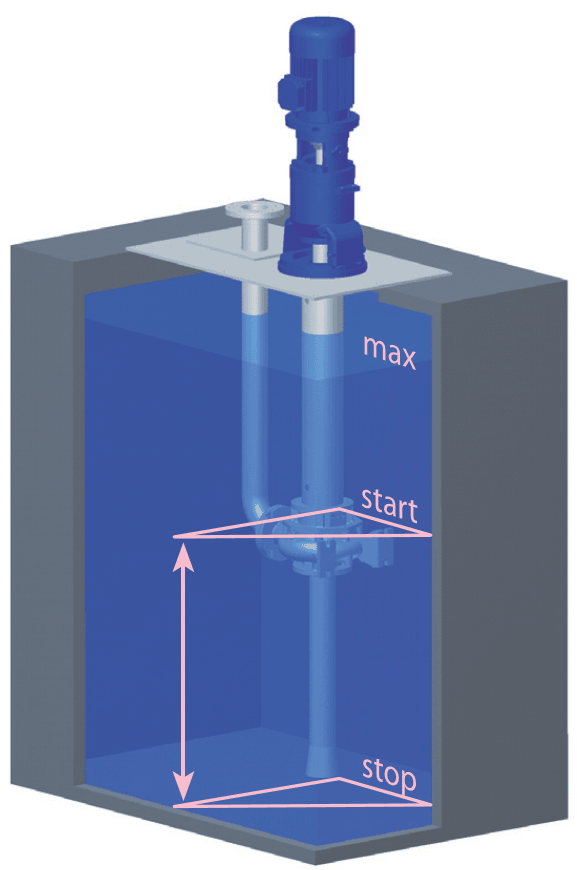

    Vertical Immersion Centrifugal Pump Installation

    Installation with a suction extension pipe: The pump operates in the same way as a traditional installation, as explained above, but has a suction depth of up to 5m.

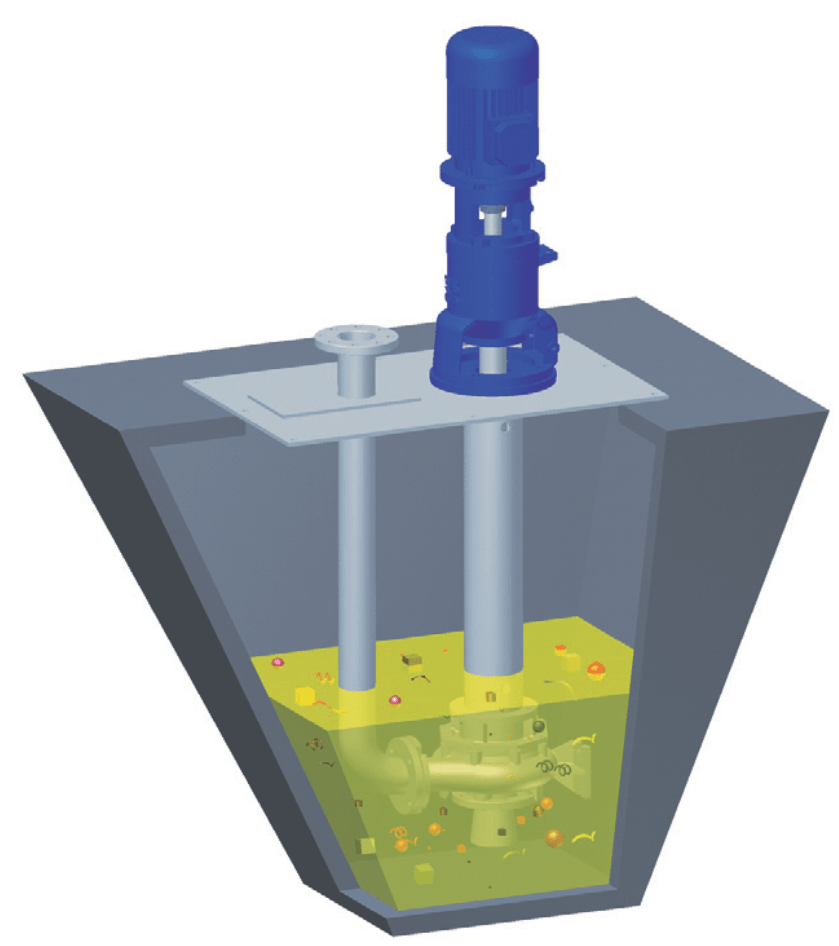

    Vertical Immersion Pump installed in tapered tank

    Installed in Tapered Tanks with Solids: Installed in a tank or sump with a tapered shape or sides leaning towards the suction of the pump. The pump can operate without level controls and completely evacuate solids whether floating or not.

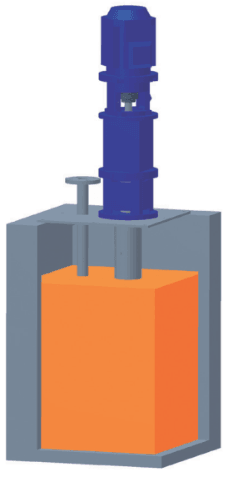

    Vertical Immersion Pump installed in high temperature applications

    Installed in High-Temperature Applications: Can be installed in tanks or sumps with process fluids up to 500ºC

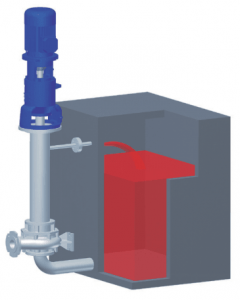

    Vertical Immersion Centrifugal Pump installed in external tank



    Installed External to Tank / Sump’s: Capable of pumping up to 300ºC in a standard configuration and 400ºC in special execution. Fitted with a by-pass for bearings lubricated by the process fluid (A).















    What type of materials are available?

    Salvatore Robuschi Vertical Immersion Pumps are available in a range of materials which allow the range to cater to almost any application:

    • PP (GFR)
    • PVDF (GFR)
    • Cast Iron
    • Ductile Cast Iron
    • WCB
    • AISI 304
    • AISI 316 / CF8M
    • AISI 904L
    • CA6N (400 HB Hardness)
    • Duplex SAF 2205
    • Super Duplex SAF 2507
    • Sanicro 28
    • Incoloy 825
    • Hastelloy C276

    A range of other materials are also available upon request, get in touch today to find out which material would be best for your application.

    What performance range can Tapflo cater for?

    Tapflo UK is able to supply Vertical Immersion Centrifugal Pumps which can cover the following standard performance details, others are available on request.

    Max Flow: 2200 m³/hr

    Max Head: 140 m

    Solids Passage:150 mm

    Max Temperature: 500ºC

    Max Length: 6 m

    Max Discharge ø: DN250

    Max Motor Power: 400 kW

    Case Study

    Vertical Immersion Centrifugal Pump Case Study.

    Tapflo were recently approached by a customer who wanted to evacuate a 3m deep sump based on level control. The sump was being fed by a waste pipe with high-temperature rinse water (98ºC) with 15% caustic. They had tried Submersible and Self-Priming Pumps in the past with little or no success.

    Why were Submersible and Self-Priming Pumps not appropriate?

    Submersible Pumps are generally only rated for between 40-60ºC and their electrical control cables are usually only made from H05-7RN rubber, which can be corroded and hardened by acidic and high-temperature fluids. Self-Priming Pumps drastically lose their self-priming ability with temperatures over 60ºC and when close to boiling, the fluid flashes off in the suction pipe resulting in the pump running dry.

    Our Solution

    Tapflo offered a Salvatore Robuschi SS316 Seal less Immersion Pump built to the exacting sizes of the sump which was controlled via an ultrasonic level sensor positioned in a custom mounting port on the support plate of the pump. The pump, sensor and control panel with mounting stand was supplied as a complete solution package which the customer was extremely happy with due to the confidence and simplicity of the purchase.

    Application Details

    • Fluid: Hot Waste Rinse Water w/ 15% Caustic
    • Temperature: up to 98 ºC
    • Required Capacity: 30 m³/hr @ 35 m
    • Sump Dimensions (D x W x L): 3 x 3 x 3 m
    • Discharge Pipework Size: DN65 (PN16)
    • Motor Supply: 230-400-690V / 3 Ph / 50 Hz
    • Area Classification: ATEX II 2 GD IIB c T4

    Pump Supplied

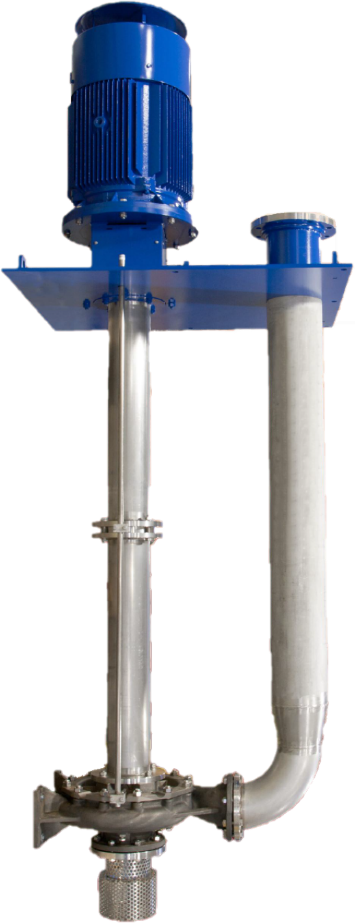

    Vertical Immersion Centrifugal Pump
    • Model:RDV 50-16A 4B22 A 300 3
    • Description: Vertical Immersion, Sealless, Centrifugal Pump with Closed Impeller in A Execution (ISO 2858 / 5199 Compliant)
    • Fluid: Hot Rinse Water w/ 15% Caustic
    • Viscosity: 1.0 mm²/s
    • S.G: 1.0 kg/dm³
    • Temperature: 98ºC
    • Impeller ø (Rated / Min / Max): 165 / 130 / 169 mm
    • Rated Capacity: 30m³/hr @ 35.2 m
    • Absorbed power: 5.2 kW
    • NPSHr: 1.4 m
    • Column Length: 2989.5 mm (+/- 25 mm), >120 mm clearance must be ensured between the bottom of the pit & pump suction port
    • Support Plate: 740 x 500 x 10 mm
    • Execution: A – Lubricated by the pumped fluid
    • Discharge Connection: DN65 (PN16 – EN1092) FF
    • Pump Casing: Stainless Steel AISI 316
    • Casing Cover: Stainless Steel AISI 316
    • Impeller: Stainless Steel AISI 316
    • Wear Ring: Stainless Steel AISI 316L
    • Shaft: Stainless Steel AISI 316L
    • Shaft Sleeve: Stainless Steel AISI 316L
    • Bearings: Rulon J on SS Supports
    • Column: Stainless Steel AISI 316L
    • Bearing Housing: Stainless Steel AISI 316L
    • Bearing Housing Sealing: Viton
    • Support Plate: Carbon Steel
    • Casing Gasket: SIL C-4400
    • Coupling Guard: Stainless Steel AISI 304
    • Motor: FELM 2.2 kW / 4 Pole / 230-400V / 3 Ph / 50 Hz / IP55 / Class F / IE3 Premium Efficiency Class
    • Frame Size: 100L
    • Paint: Polyacrylic, RAL 5010
    • Support Plate: 740 x 500 x 10 mm
